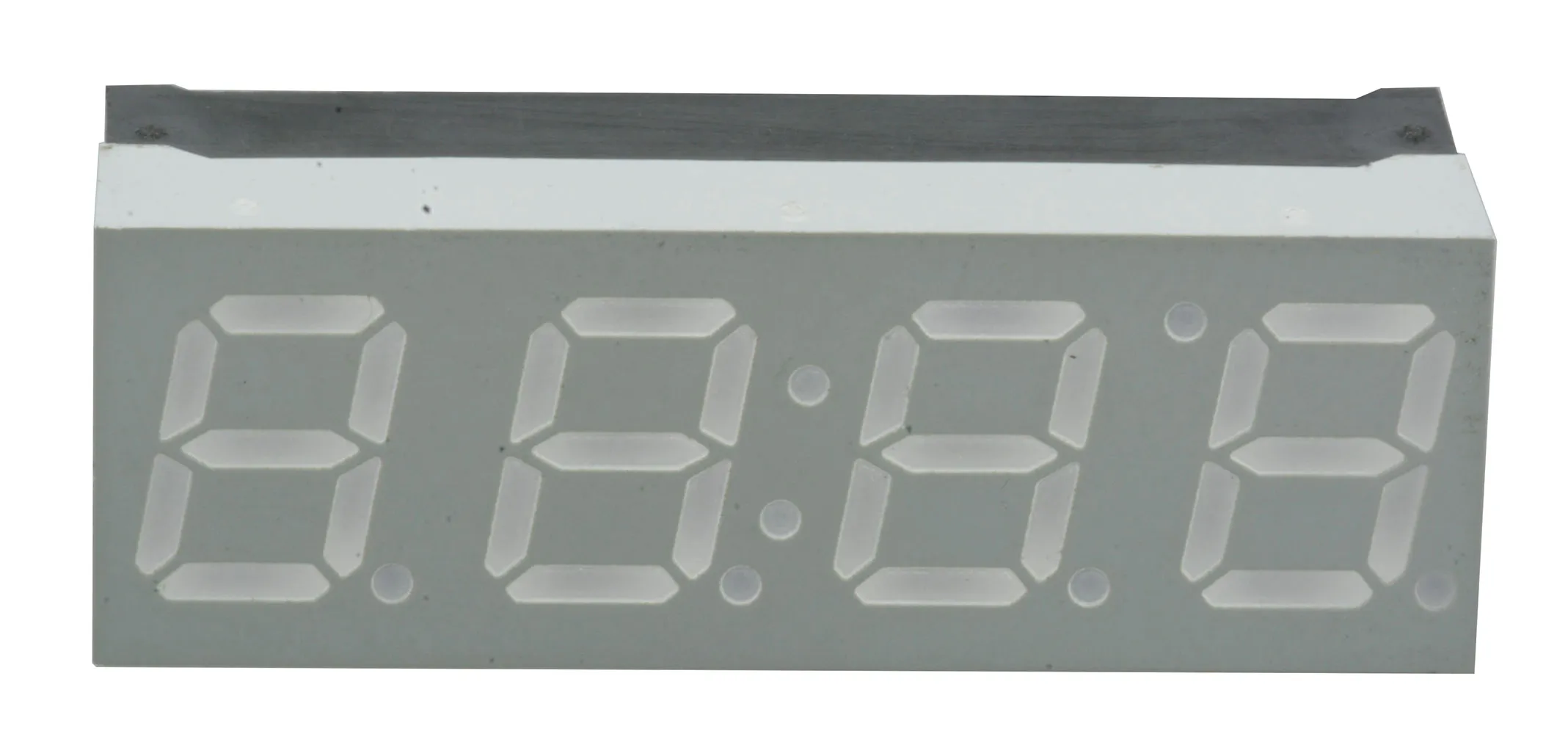

7-Segment Clock 4 Character LED Display Module Green Common Anode 2.1V 20mA 0.394" 16-DIP

Specifications

  • Number of Characters: 4
  • Size / Dimension: 0.394" H x 1.191" W x 0.240" D (10.00mm x 30.26mm x 6.10mm)
  • Digit/Alpha Size: 0.28" (7.00mm)
  • Display Type: 7-Segment Clock
  • Common Pin: Common Anode
  • Color: Green
  • Voltage - Forward (Vf) (Typ): 2.1V
  • Current - Test: 20mA
  • Millicandela Rating: 2mcd
  • Wavelength - Peak: 565nm
  • Power Dissipation (Max): 75mW
  • Package / Case: 16-DIP (0.300", 7.62mm), 15 Leads

Product Identification

Product Type:Segmented LED Display

Dimensions & Appearance

Color:Green
Width:30.26 mm
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-35°C
Maximum Operating Temperature:85°C

Features

Pattern Graphics:Segmented
Buss Polarity:Common Anode
Viewing Area Height:7 mm
Digit Size:0.28"
LED Display Type:7-Seg Numeric
Maximum Reverse Voltage:5V
Decimal Point:RHDP
Number of Digits:4
Dominant Wavelength:569 nm
Number of LEDs:35
Character Size:0.28"
Maximum Reverse Current:100uA
Pins:16
Illuminated Color:Green
Luminous Intensity:2.0 mcd
Peak Wavelength:565 nm
Typical Forward Voltage:2.1 VDC
Maximum Forward Current:25 mA
Maximum Forward Voltage:2.6 V
Thickness:6.1 mm
,
