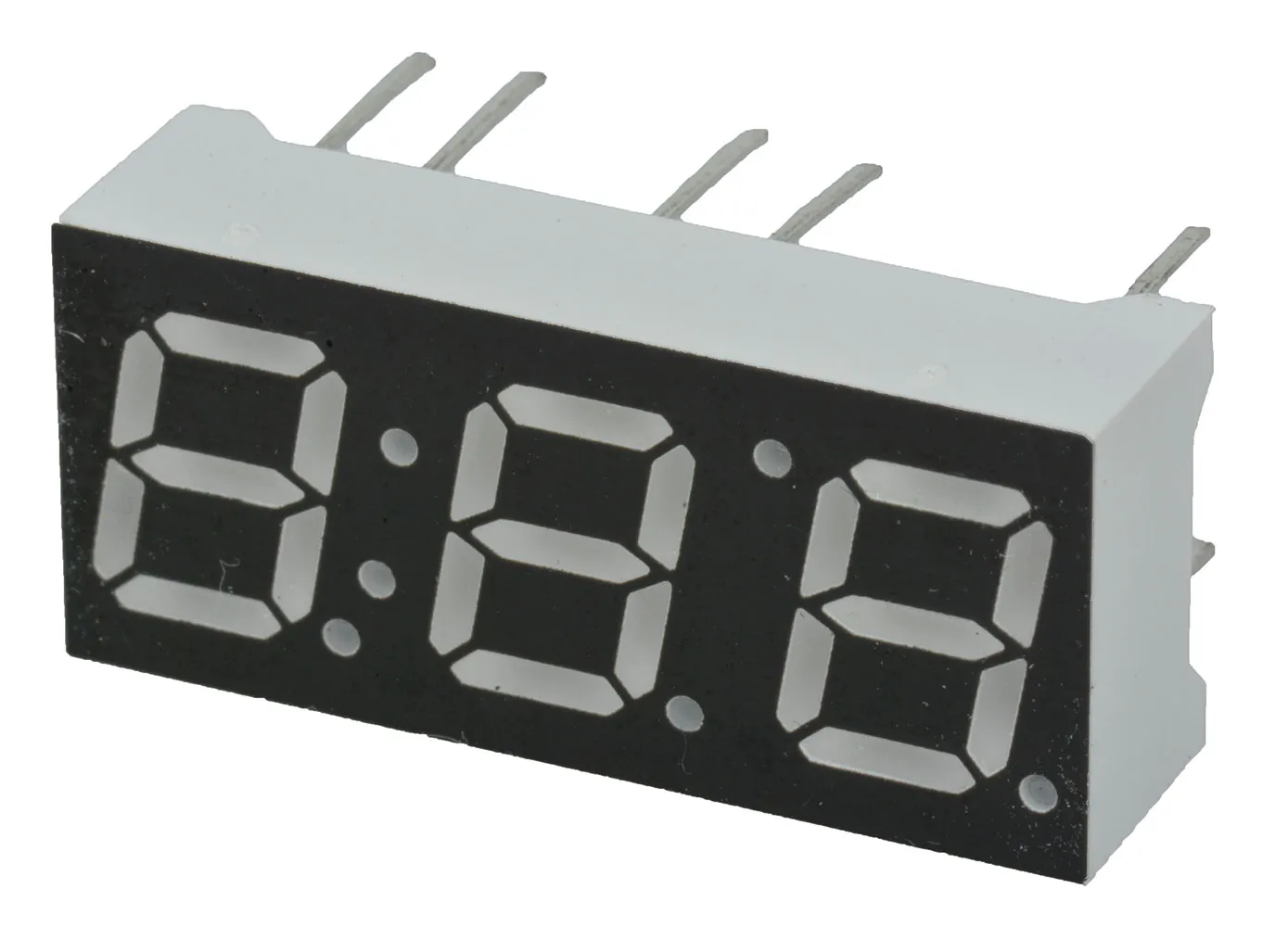

3-Digit 7-Segment 0.28"H LED Display Module Green Common Anode RHDP 2.1V 10mA DIP-16

Specifications

  • Number of Characters: 3
  • Right hand decimal point
  • Size / Dimension: 0.394" H x 0.891" W x 0.24" D (10.00mm x 22.64mm x 6.10mm)
  • Digit/Alpha Size: 0.276" (7.00mm)
  • Display Type: 7-Segment
  • Common Pin: Common Anode
  • Color: Green
  • Voltage - Forward (Vf) (Typ): 2.1V
  • Current - Test: 10mA
  • Millicandela Rating: 8.25mcd
  • Wavelength - Peak: 571nm
  • Power Dissipation (Max): 70mW
  • Package / Case: 16-DIP (0.300", 7.62mm)

Product Identification

Product Type:Segmented LED Display

Dimensions & Appearance

Color:Green
Width:22.64 mm
Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-35°C

Features

Pattern Graphics:Segmented
Buss Polarity:Common Anode
Viewing Area Height:7 mm
Digit Size:0.28"
LED Display Type:7-Seg Numeric
Number of Digits:3
Maximum Reverse Voltage:5V
Decimal Point:RHDP
Luminous Intensity:0.7 mcd
Number of LEDs:27
Character Size:0.28"
Dominant Wavelength:572 nm
Maximum Reverse Current:100uA
Pins:16
Illuminated Color:Green
Typical Forward Voltage:2.1 VDC
Maximum Forward Current:20 mA
Peak Wavelength:572 nm
Maximum Forward Voltage:2.6 V
Thickness:6.1 mm
,
