LED Dimmer Recessed Installation 12V/24V

Features

• Primary color: Gray
• Additional Colors: Black, White
• Diameter: 14 mm
• Height unit: 16 mm
• Weight unit: 25 g
• Material: ABS
• Maximum current rating: 3 A
• IEC protection class: Class III
• Power consumption range: 36-72 W
• Quiescent current: <1 mA
• Mounting type: Recessed
• Sensor type: Touch dimmer
• Diameter mounting hole: 12 mm
• Operating temperature range: -20-45 °C
• Input voltage rating VDC range: 12-24 V

Overview

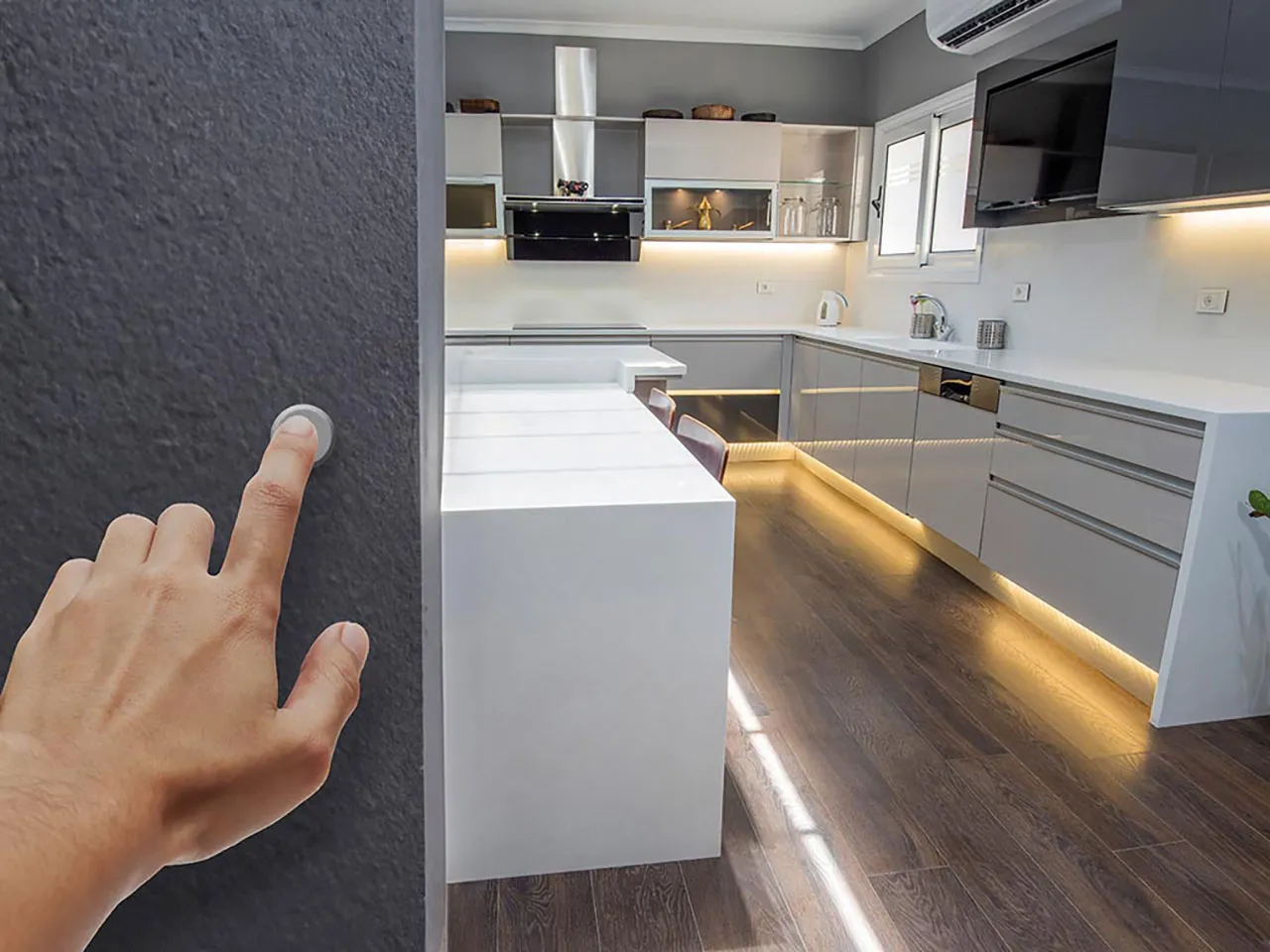

Discover our innovative recessed dimmer, the perfect solution for controlling LED strips. This compact dimmer is specially designed for flush mounting in cabinets or furniture panels, with only a 12 mm drill hole. Control your lighting simply and stylishly: a short press turns the LED strip on, a second short press turns it off. For the ultimate atmosphere, hold down the button to set the desired dimming value.
