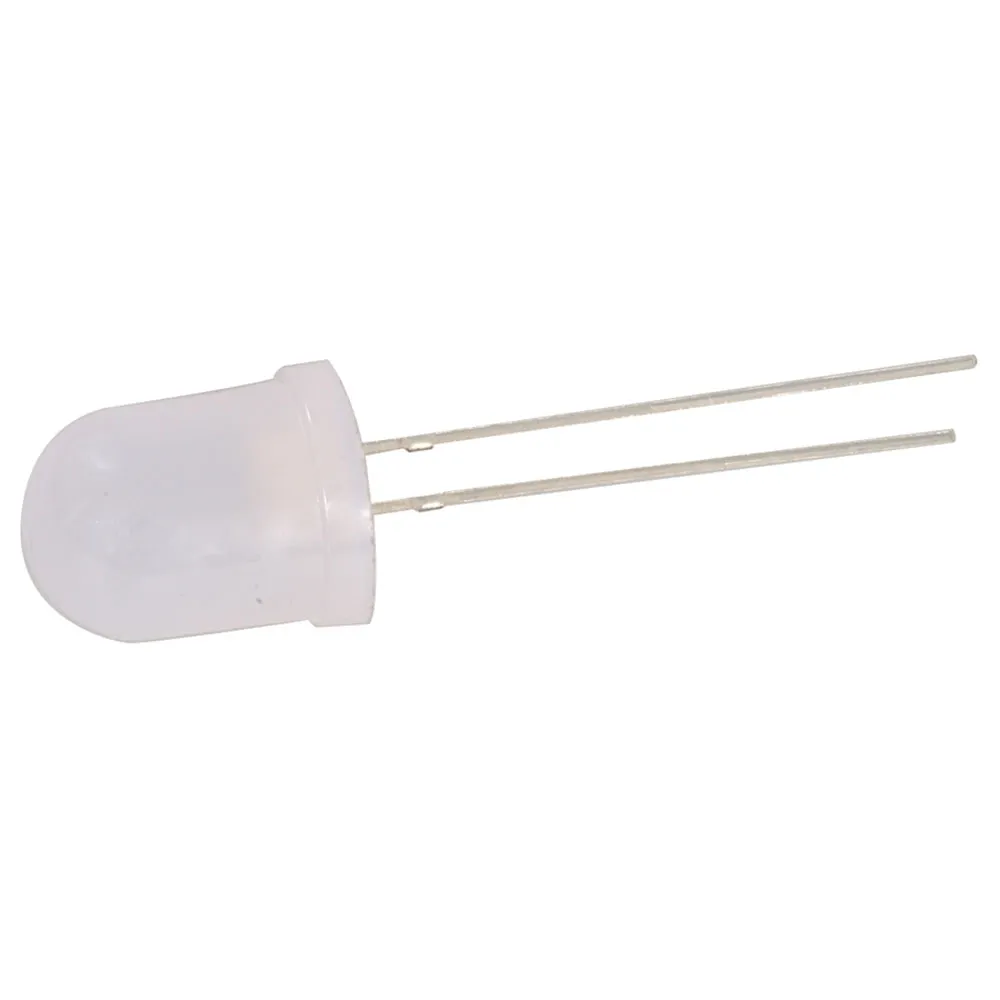

10mm Jumbo Diffused RGB LED, Auto-Blink & Color Change
This is a special RGB LED in that is has only two leads. Three colors with only two leads, how is that possible you ask? The colors are mixed automatically with a built-in transistor. When powered, the colors will change in a smooth gradient, and then it changes to a flashing pattern through each solid color. The solid colors we've spotted are red, green, blue, yellow, purple, and teal/turquoise. This style of LED is now available in a T1-3/4 (5mm) package.
NOTE: Use of a heatsink clip when soldering is highly recommended. The internal components are extremely sensitive to heat.
Â
Specifications
- Emitting Color: RGB, automatically mixed
- Lens Feature: Diffused
- Blinking Frequency: 3 Hz - 5 Hz
- Diameter: 0.394" (10mm)
- LED Height: 0.43"
- Lead Length: 1.0"
- Lead Spacing: 0.1"
- Forward Voltage: 3.0V min.
- Typical If: 30mA (180mA peak @ 1/20 duty)
- Typical Brightness (RGB): 800/900/600mcd
- Wavelength (RGB): 625/525/470nm
- Viewing Angle: 20°
