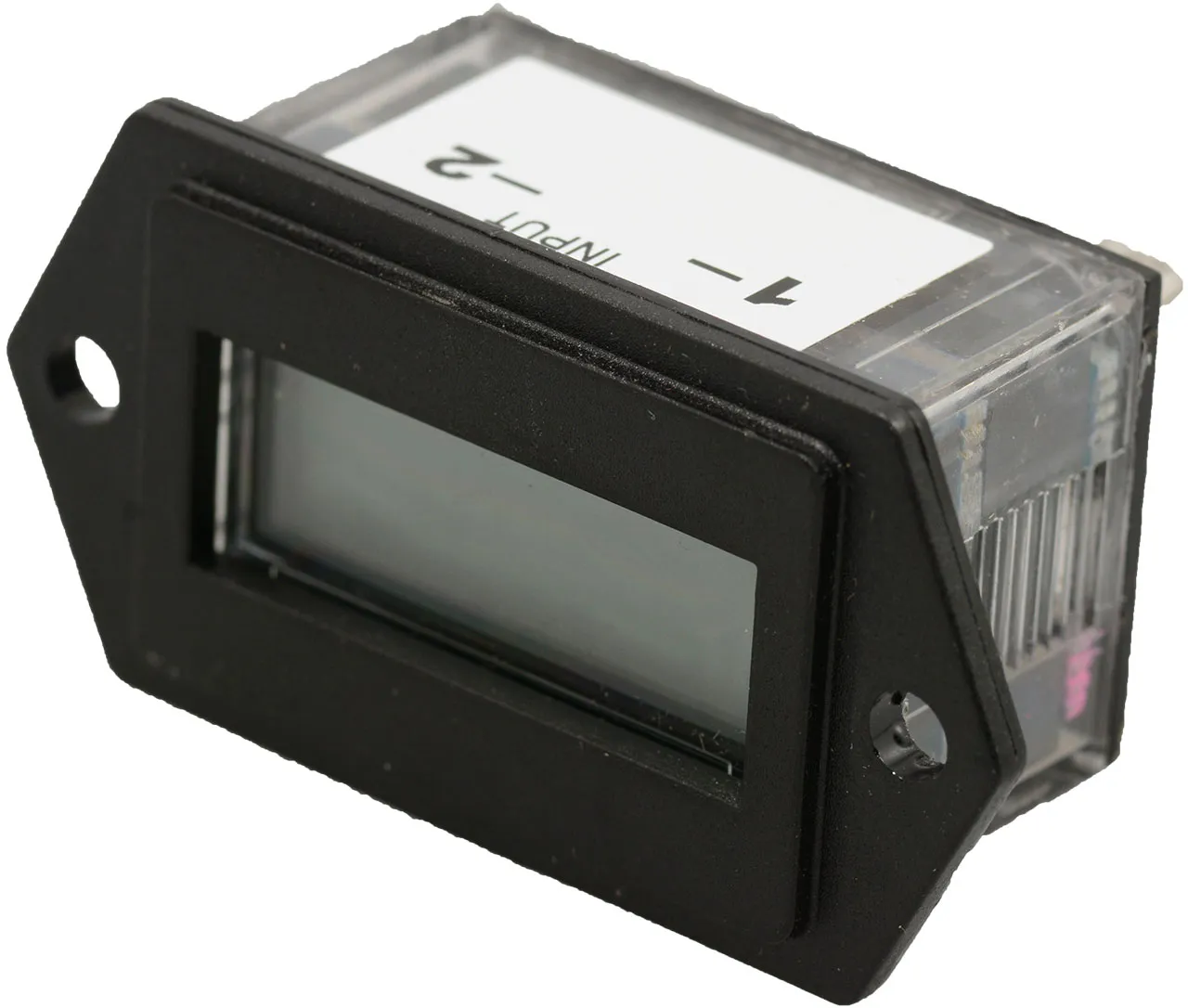

LCD Counter 8-digit AC/DC Input Rectangular 1/4" Quick Connect Non-Reset

Features

• Self Powered - 15+ Year Battery Life
• 8-Digit LCD Display - 0.28" Characters
• Input: 10-300 VDC and 20-300 VAC in Same Unit
• Capable of Submersion in 6' of Water
• Compact Depth and Programmable Output Thresholds
• NEMA 4/4X, 12 and IP66 Compliance
• Approvals: CE, SAE, UL, cUL Recognized
• Connection Type: Spade-Terminal
• Depth: 0.079 in
• Dimensions, Cutout, Inches: 36.8 x 24.1 mm
• Panel Cut Out: 1.45 L x 0.95 H in.
• Display Digit Height: 7 mm
• Display Type: LCD
• Function: Preset Counter; Totalizer
• Input Type: Voltage
• Measurement Range: 0 to 99999999
• Measuring Range: 0 to 99999999
• Operating Temperature: -40 to 85°C
• Mounting Type: Panel Mount
• Series: 3400 Series
