Laser Tag Label, 0.75 x 0.25", 312 Per Sheet, Polyester, White, 5000 per Package

Features

• Laser printable white polyester has a smooth surface, allowing for the highest resolution and print contrast. The acrylic-based adhesive bonds to a wide variety of substrates and can withstand high temperatures long term. Lasertags are not affected by the high heat required in a laser printer.
• Product Type: Labels for Laser Printers

Technical Specifications

• Material: Type 789, Polyester (789)
• Operating Temperature: -40°F to +300°F (-40°C to +149°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color Marking Field: White (WH)
• Focused Markets and Industries: Electrical Installation; Electronics Industry; Industrial Automation; OEM Industry; Panel Building; Rail Transportation Sector; Telecommunication
• Height H (Imperial): 0.25"
• Height H (Metric): 6.35 mm
• Horizontal Repeat HR (imperial): 1.16"
• Horizontal Repeat HR (metric): 29.60 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 39
• Labels per Row: 8
• Labels per Sheet: 312
• Print Method: Laser
• Printable Area Height (imperial): 0.25"
• Printable Area Height (metric): 6.35 mm
• Self laminating: No
• Sheets per Pack: 17
• Thickness T (Metric): 64.0 µm
• Vertical Repeat VR (imperial): 0.25"
• Vertical Repeat VR (metric): 6.35 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width of Liner WL (imperial): 8.5"
• Width of Liner WL (metric): 215.00 mm
• Width W (Imperial): 0.75"
• Width W (Metric): 19.05 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306093374

Overview

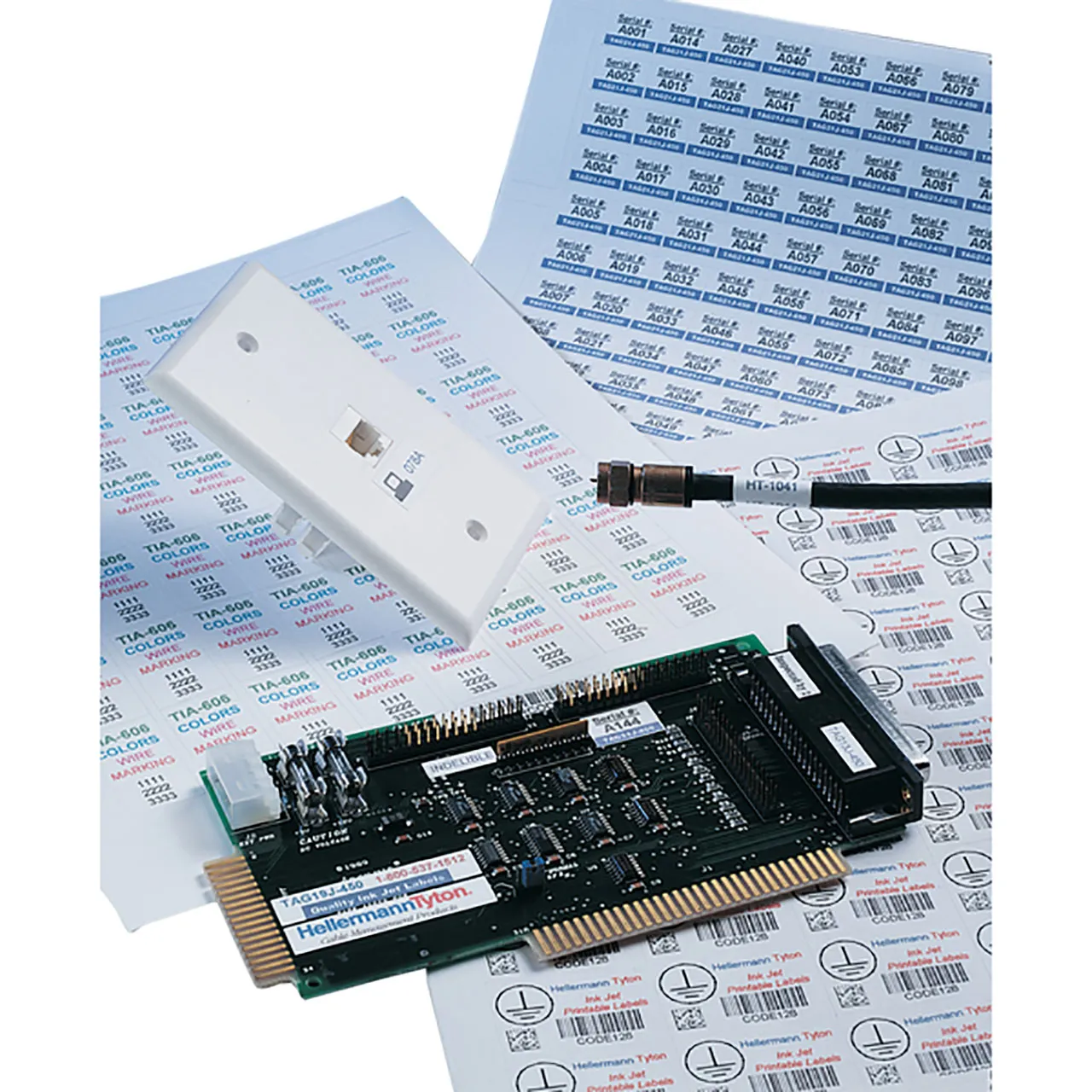

HellermannTyton white polyester labels are ideal for marking small electrical and electronic components, such as EPROMS’, Integrated circuits, as well as the circuit board itself. Printed labels can withstand the soldering process and survive flux removal when the board is washed. HellermannTyton’s 789 material is designed for use on flat surfaces and can also be used to identify connectors, buttons and just about anything requiring permanent, durable, high temperature and UV resistant marking.
