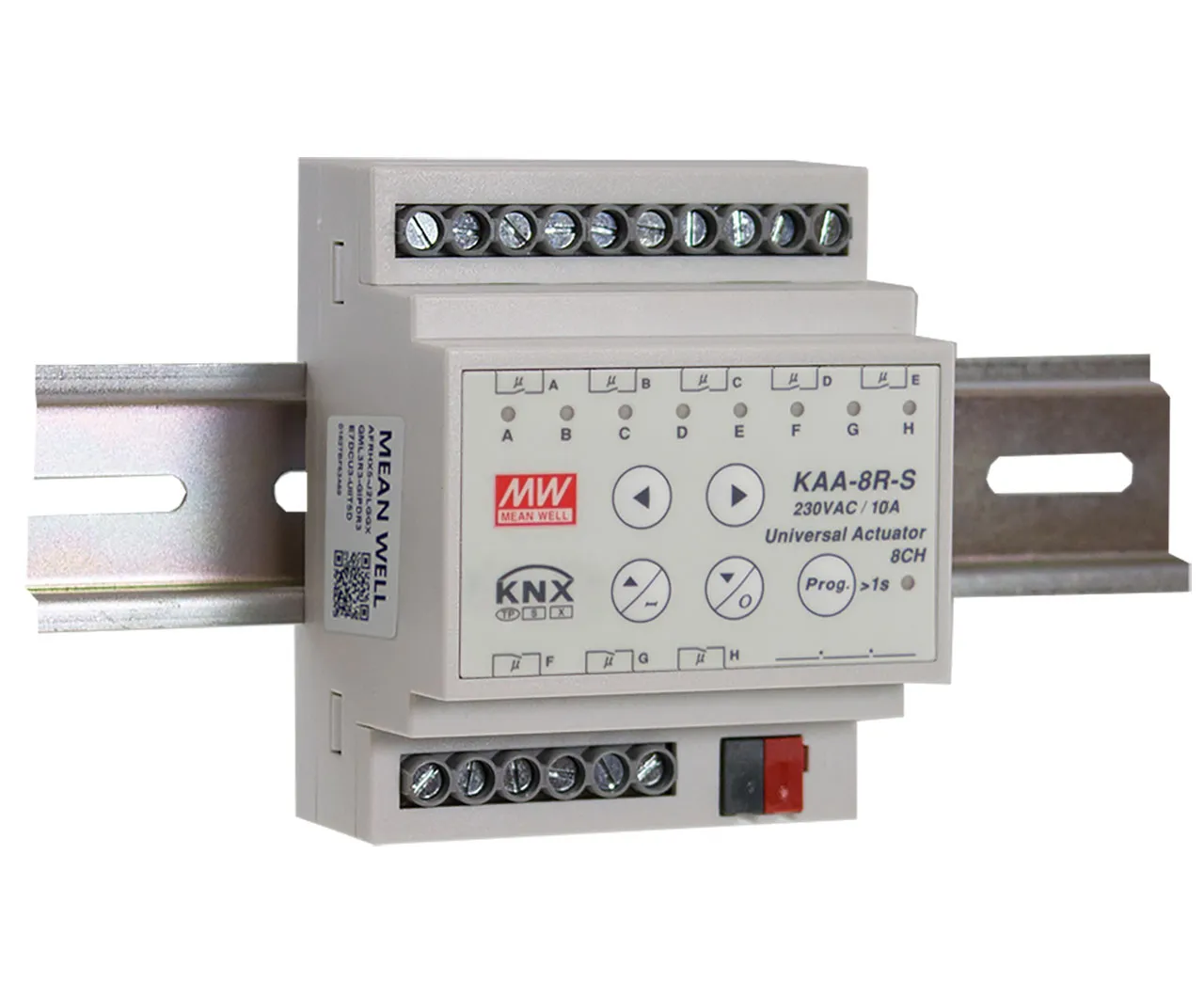

KNX Universal Actuator 8-Channel 10A per Channel DIN Rail Mount

Features

• 8 channel actuator in a compact size
• Suitable for various and mixed applications
• For AX, C-load, capacitive & inductive loads
• Program via ETS 5.0 software
• Support KNX Data Secure
• Manual control via Push button
• Programmable various time and scene function
• 3 year warranty

Specifications

• KNX Bus Voltage: 21 V to 31 V
• Number of Switching Output: 8
• Number of Shutter Output: 4
• Output Type: Independent, potential-free bistable (latching) relay
• 10 A per channel

  Applications

  • Building Automation
  • Lighting switch
  • Shutter/Blind control
  • Heating control
  • Ventilation function
