KNX Power Supply with Integrated Choke 1280mA 30V 180-264VAC Input

Features

• EIB / KNX power supply with integrated choke
• Compact size with 4SU width (72mm)
• Safety extra low voltage (SELV)
• Suitable for TP1-256
• 180 to 264 VAC input
• Protections: Short circuit, overload (short-circuit-proof), over voltage
• Cooling by free air convection
• Isolation Class I
• LED indicator for normal operation, bus reset and bus overload
• Monitoring of output voltage, output current, bus traffic load and device temperature
• Provide wide variety of diagnostic and logic function
• Over Voltage category III
• 3-year warranty

Overview

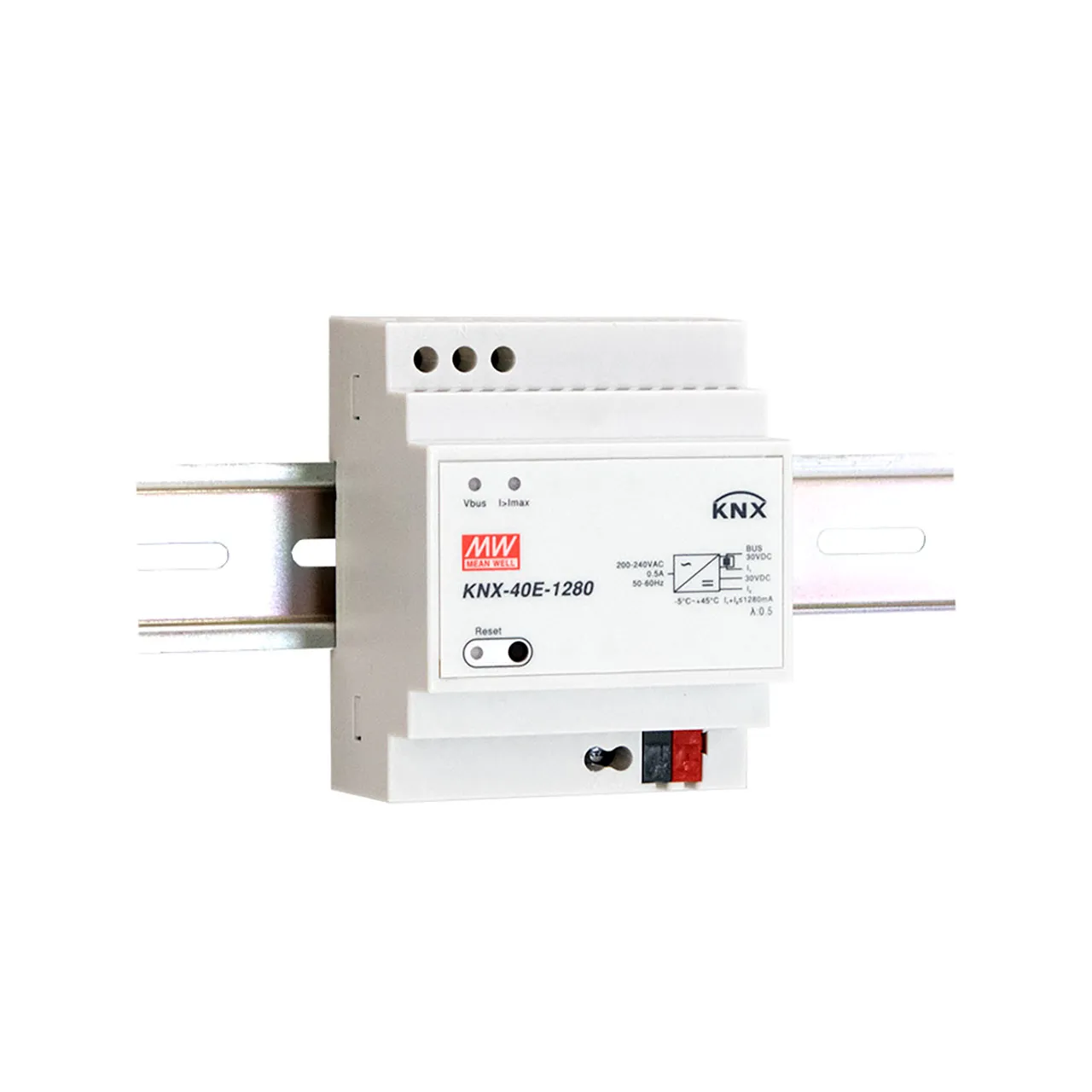

The KNX Power Supply KNX-40E-1280(D) is a 1280,A power supply with high efficiency and a small footprint of only 4SU (72mm). The device has a KNX bus choke output and additional output for auxiliary power. The -30C to +70C wide temperature operating range can meet all kinds of applications. For troubleshooting, monitoring purpose, output voltage, output current, bus traffic, device temperature and other actual measurement values can be sent via KNX. LED indicators are used in case of normal operation, overload conditions and RESET operation. It is perfectly suitable to power up any products labeled with the KNX trademark.

Applications

• Intelligent home control
• Modern building automation
• Lighting control
• HVAC system
• Security system
• Blinds and shutters
• Monitoring systems
• Energy management
• Alarm monitoring
