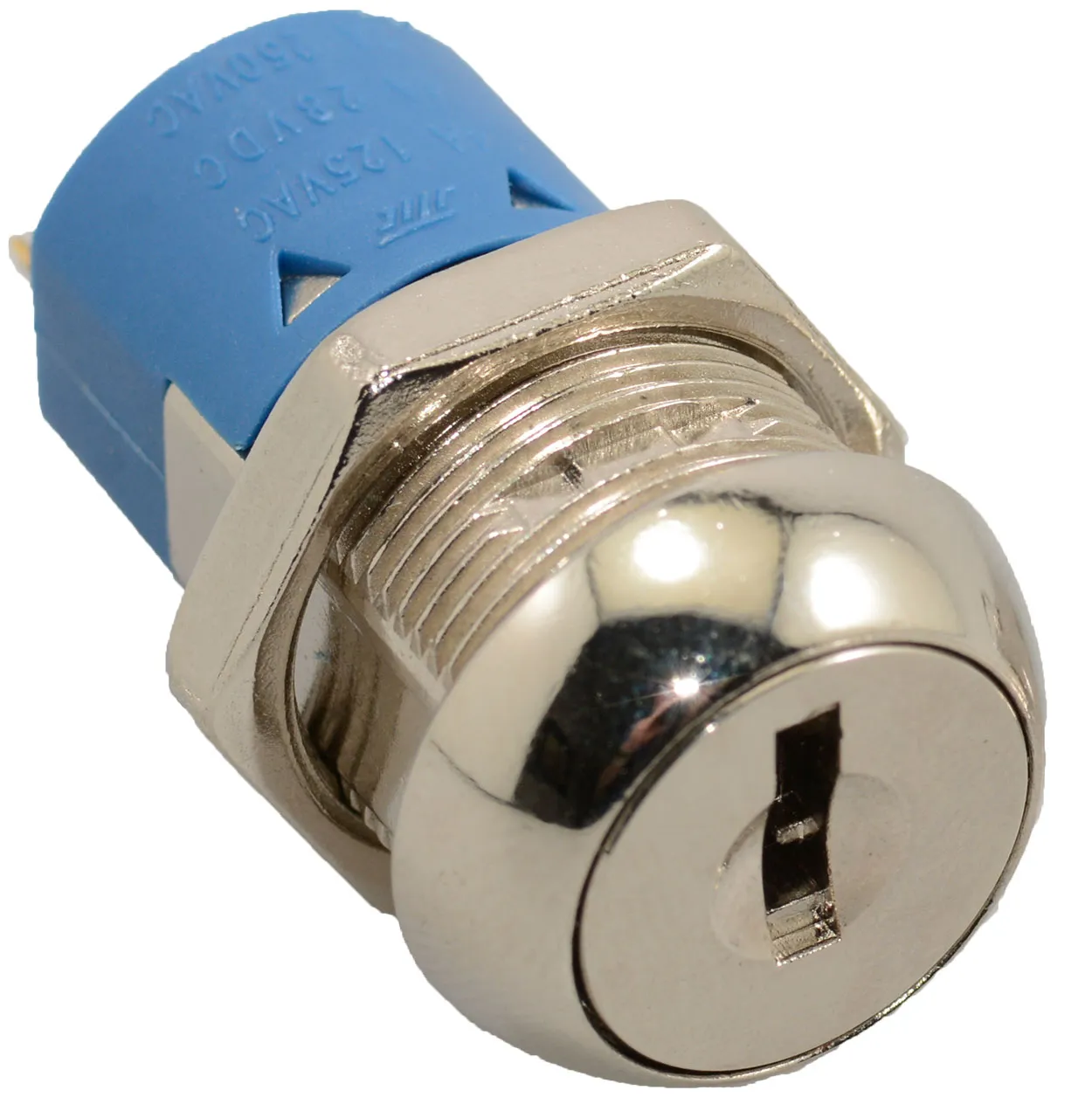

Keylock Switch 2 Position SPDT 4A 125VAC 28VDC OFF-MOM Panel Mount

Features

• Circuit: SPDT
• Number of Positions: 2
• Switch Function: OFF-(ON)
• Contact Timing: Not Specified
• Current Rating: 4 A (AC)
• Voltage Rating: 125 VAC; 28 VDC
• Actuator Type: Flat Key
• Key Removable Positions: 3 only
• Angle of Throw: 45°
• Contact Material: Copper Alloy
• Contact Finish: Silver
• Mounting Type: Panel Mount
• Termination Style: Solder Lug
• Panel Cutout Dimensions: Circular - 19 mm Dia.
• Depth Behind Flange: 32.20mm

Overview

Keylock switch includes two keys.
