Kabelrap Tie, 8.3" Long, 176lb Tensile Strength, PA66, Natural, 50 per Package

Features

• Kabelrap tie offers a smooth strap providing secure assembly without damaging cables or hoses. Curved head design provides full circumferential compression which offers vibration resistance.
• Product Type: Cable Ties - Special Function

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.85"
• Bundle Diameter Max. (Metric): 47.0 mm
• Bundle Diameter Min. (Imperial): 0.31"
• Bundle Diameter Min. (Metric): 8.0 mm
• Cable Tie Closure: fibreglass pin
• Cable Tie Head Height (metric): 7.5 mm
• Cable Tie Head Length (Imperial): 0.31"
• Cable Tie Head Length (Metric): 8 mm
• Cable Tie Head Width (Imperial): 0.46"
• Cable Tie Head Width (Metric): 11.6 mm
• Fixation Method: Cable Tie
• Focused Markets and Industries: Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Aerospace Industry; Defense Industry
• Length L (Imperial): 8.3"
• Length L (Metric): 210 mm
• Recommended Application Tool: 121-00680
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 176 lbs
• Tensile Strength Min. (kgf): 80.05 kgf
• Tensile Strength Min. (Metric): 785 N
• Thickness T (Imperial): 0.091"
• Thickness T (Metric): 2.3 mm
• Toothing (Serration): Not Serrated
• Variant: Not Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.0063052206932
• Width W (Imperial): 0.32"
• Width W (Metric): 8.0 mm
• CE Certified: No
• CSA Certified: No
• EN 45545-2 Results: R22 HL2; R23 HL2
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306285311

Overview

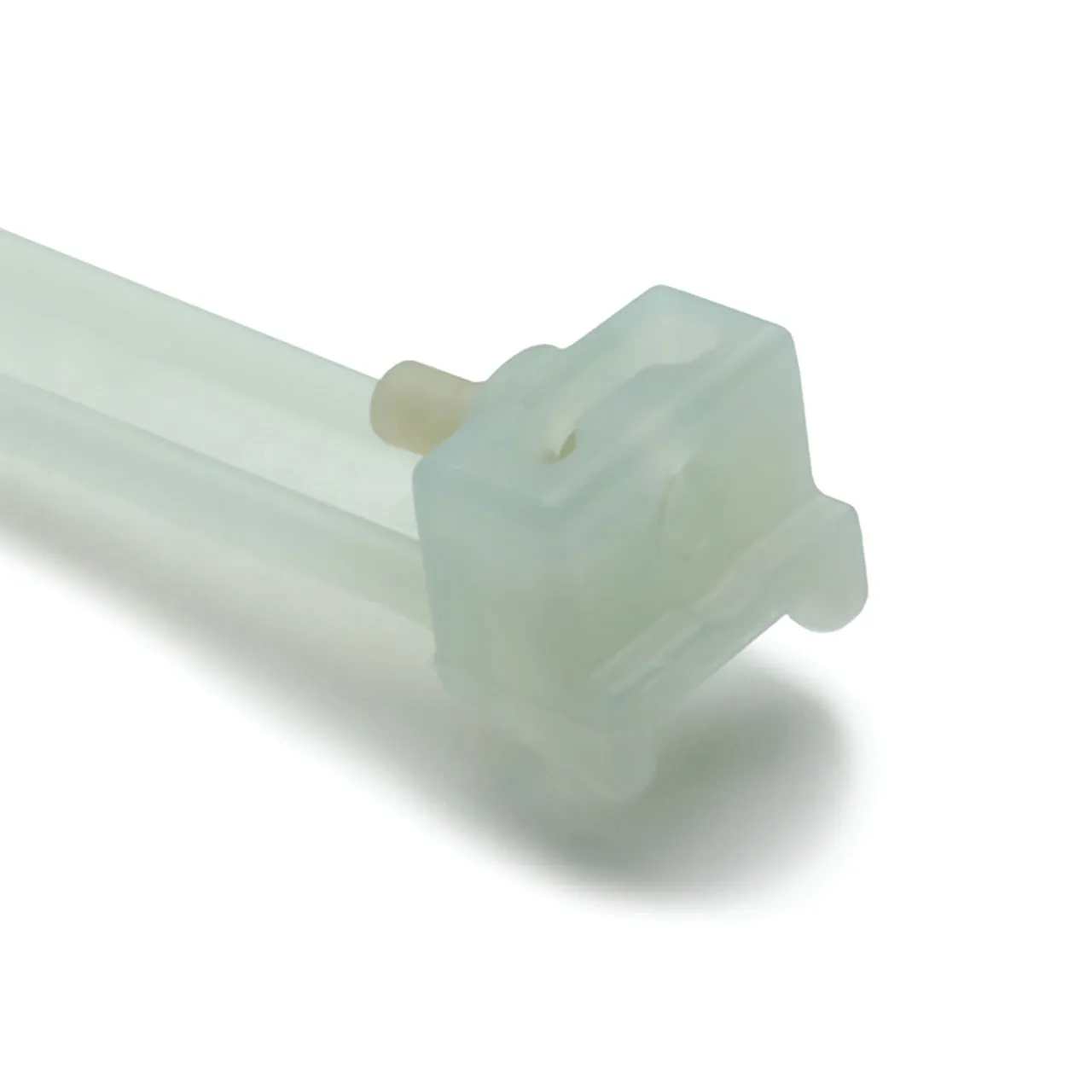

The patented Kabelrap cable tie design offers a smooth strap which is locked into place with a glass fiber reinforced pin. The curved head design provides full circumferential compression around the bundle or harness. Once applied with the required KR6/8 manual tool, the tie offers a secure and vibration resistant assembly.
