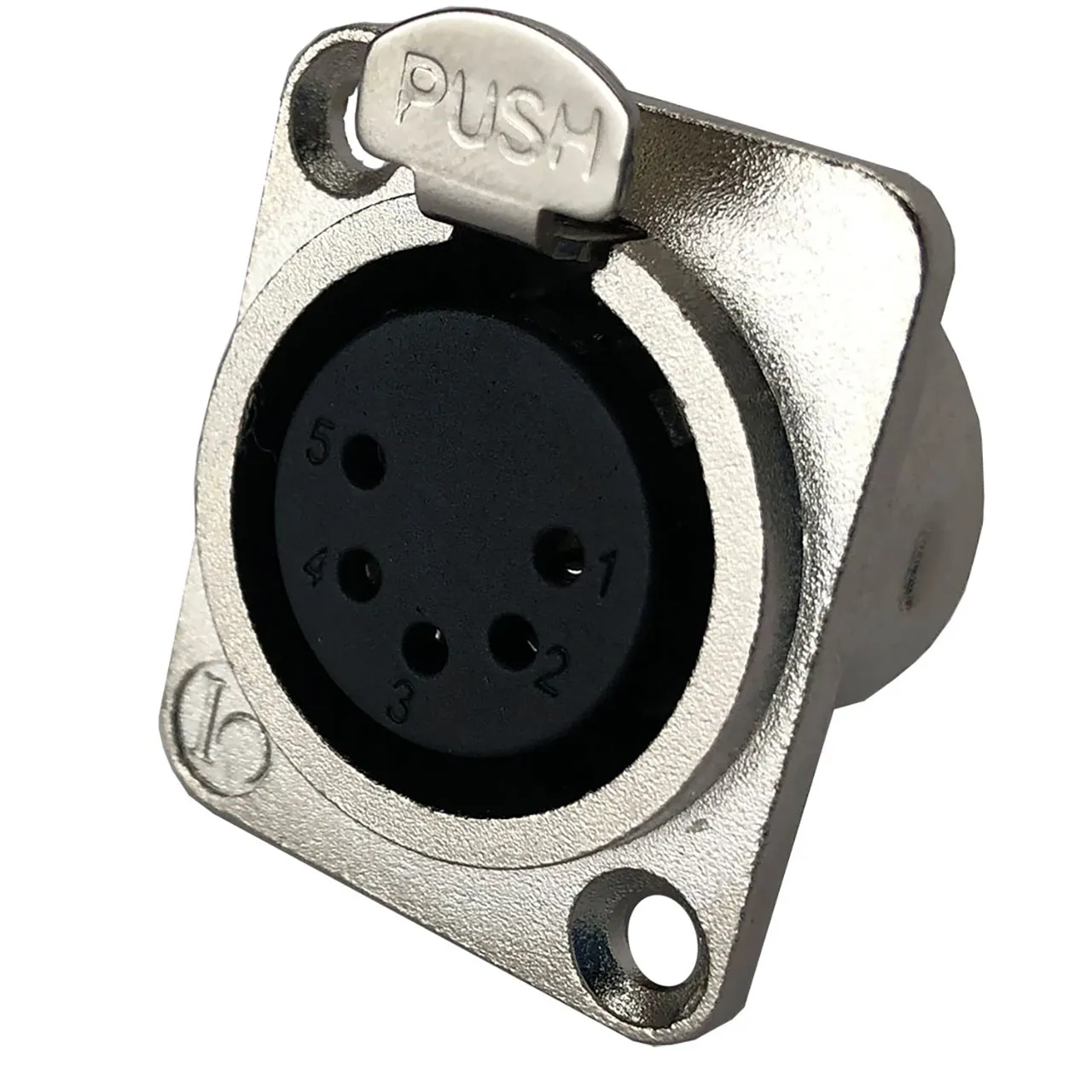

JL-Series 5-Pin XLR Female Receptacle Nickel Housing Solder Cups Silver Contacts

Io Audio Technologies

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$4.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
10+	$4.950	-	-
50+	$4.550	0.40	8.08%
150+	$4.150	0.80	16.16%

Features

Capacitance Between Contacts: ≦ 2.5pF
Capacitance Between Contacts and Shield: ≦ 2.5pF
Contact Resistance: < 7mΩ
Insulation Resistance: ≥ 5000MΩ
Dialectric Strength: 1500V @ 60s
Current Rating: 7.5A/125V AC
Number of Pins/Poles: 5
Gender: Female
Contact Material: Phosphor Bronze
Contact Platng: Silver
Shell Material: Black Electrocoated Zinc Alloy
Shell Color: Nickel
Wiring: Solder Cups
Flammability Rating: UL94V-0

Overview

Locking 5 pin connectors with rugged metal shells for audio and lighting control.

JL Series XLR chassis connectors offer a sleek and robust connection in a standard “J" Size shell. This series is perfect for high-noise environments like permanent installations or design-in applications where the termination method is solder cups.

The connectors have a die cast zinc housing with an electrocoated black finish which allows for great RF protection. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in either black or nickel housing and in 3, 4, or 5 pin variations.

The JL Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created.
