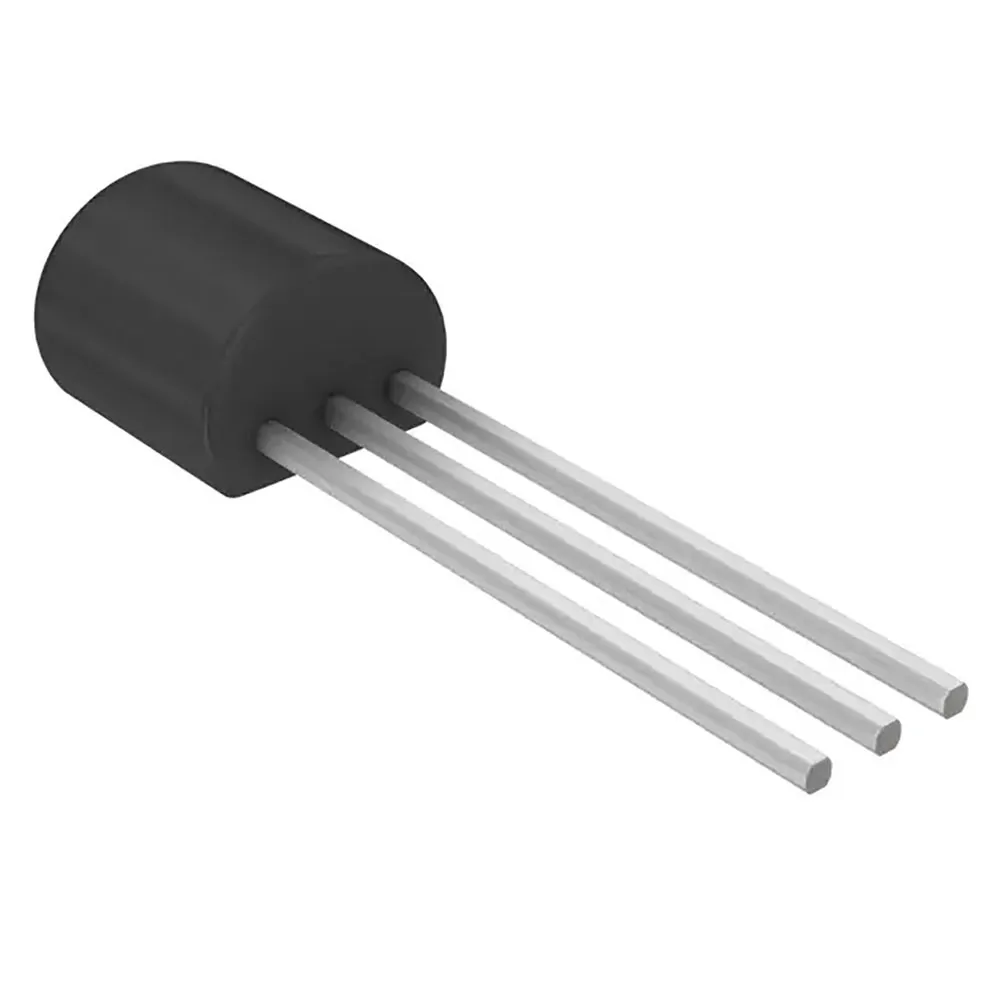

JFET N-Channel 25 V 310 mW Through Hole TO-92 (TO-226)

Specifications

  • FET Type: N-Channel
  • Input Capacitance (Ciss) (Max) @ Vds: -
  • Operating Temperature: 135°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 Long Body
  • Voltage - Breakdown (V(BR)GSS): 25 V
  • Resistance - RDS(On): 18 Ohms
  • Power - Max: 310 mW
  • Current - Drain (Idss) @ Vds (Vgs=0): 10 mA @ 15 V
  • Voltage - Cutoff (VGS off) @ Id: 500 mV @ 1 µA
  • Base Number: J110

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C

Packaging

Packaging:Bulk
Package:TO-92-3

Features

Maximum Drain Gate Voltage:25 V
Transistor Polarity:N
Maximum Gate Source Voltage:-25 V
Zero-Gate Voltage Drain Current:10 mA
,
