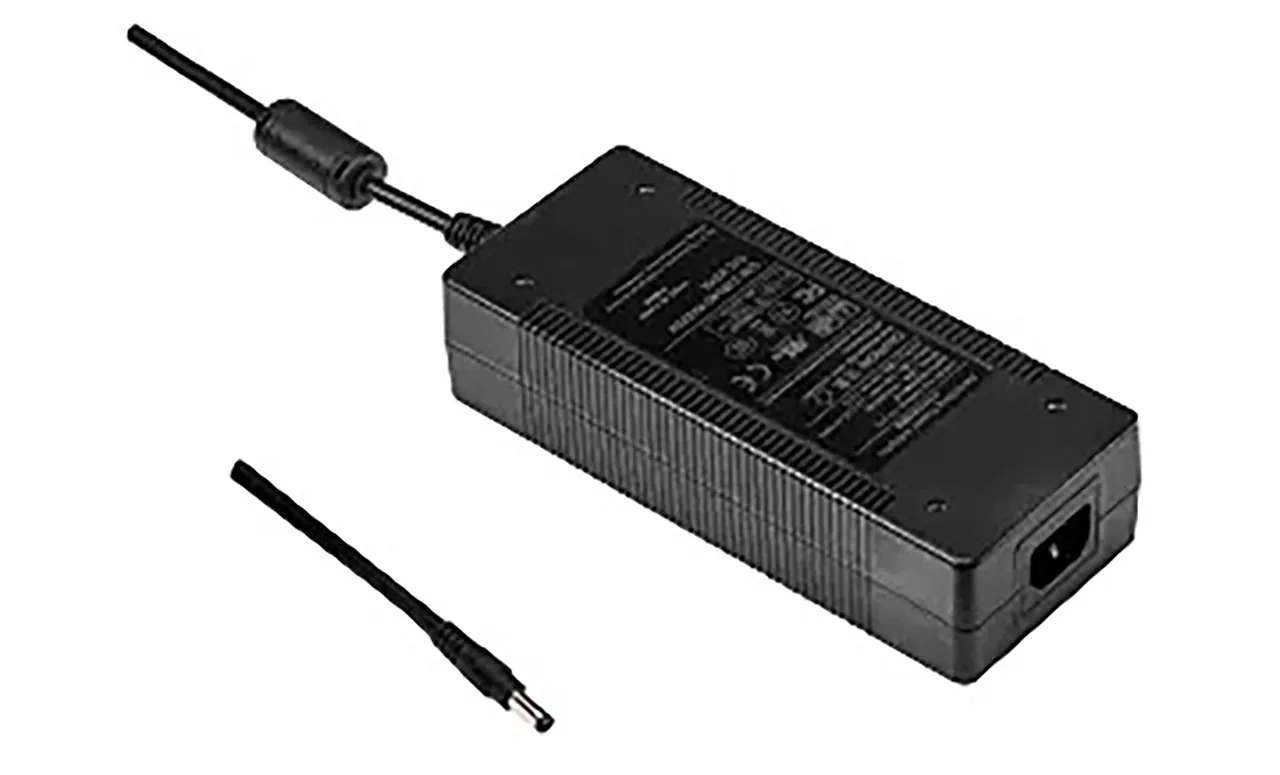

ITE Switching Table-Top Power Supply 24VDC 9.17A 220W DIN-4 Plug 3.9' DC Cord C14 Inlet

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 94%
  • Class I
  • No Load Input Power Consumption < 150mW
  • Approval IEC/EN/UL 62368-1 Ed 3.0
  • Approval EN55032 and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Very Low Leakage Current <90uA
  • Meets DOE and CoC Tier 2 Level VI
  • IEC320/C14 Compact Size (AC cord not included we recommend 3-conductor C13 cord like P/N: 2271575)

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:TRH220

Compliance

Agency Approvals: CE, CUL, EN, FCC, PSE, TUV, UKCA, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.75 in.
Width:2.95 in.
Length:7.08 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Connector Diameters:DIN-4 Male
Output Connector Type:DIN-4 Male
Output Voltage (Channel 1):24 VDC
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):9.17 A
Output Current:9.17 A

Features

Polarity: P1/P3 NEG, P2/P4 POS, SHELL N/C
Product Note: 3.9' Output Cord, Level VI
Minimum Isolation Voltage:3000V
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:93%
Power Rating:220 W
,
