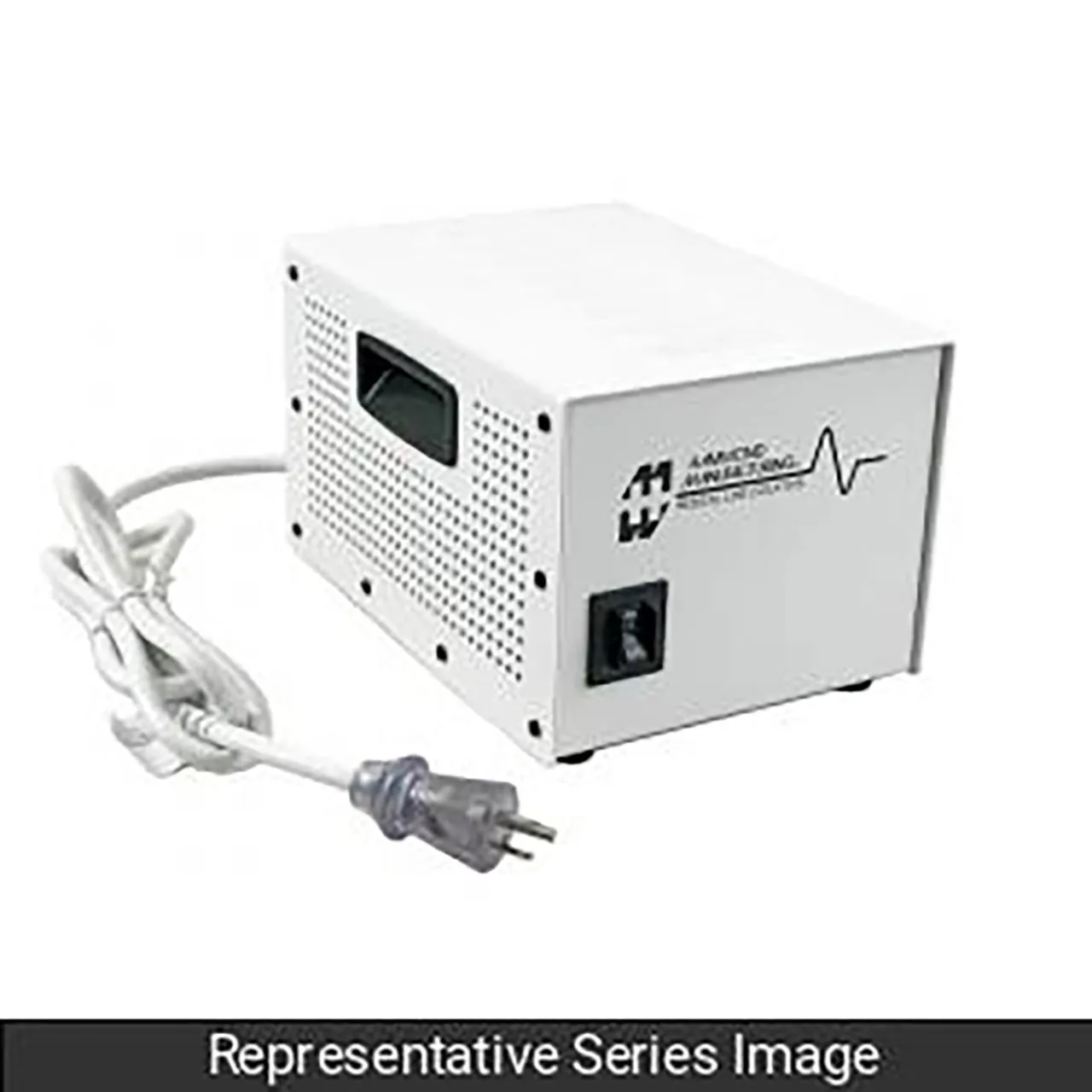

Isolation Transfortmer, Medical Grade, 1000VA, 120 VAc To 240 VAc, Mg Series

Features

  • Material: N/A
  • Standards: csa, culus, taa-compliant
  • Power Rating (VA): 1000
  • Input Voltage (AC): 120 VAC
  • Input Current (Amps): 8.67 A
  • Output Voltage (VAC): 240 VAC
  • Output Current (Amps): 4.17 A
  • Leakage Current: < 100 uA
  • Full Load Efficiency: 95% (min)
  • Input Plug NEMA Type: 5-15P
  • Cord Style / Length: 14/3 SJTW/ 6ft.
  • Output Receptacle: Duplex 6-15R
  • Number of Duplex Receptacles: 2
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Isolation transfortmer, medical grade, 1000VA, 120 VAC to 240 VAC, MG Series.

Resources & Downloads

Output

Number of Outputs:2

Features

Primary Side Connection:NEMA 5-15P
Secondary Side Connection:Duplex 6-15R
Primary Side Current:8.67 A
Primary Side Voltage:120 VAC
AC Cord Length:14/3 SJTW/ 6ft.
Current Rating:4.17 A
Secondary Side Voltage:240 VAC
Power Rating:1000 VA
,
