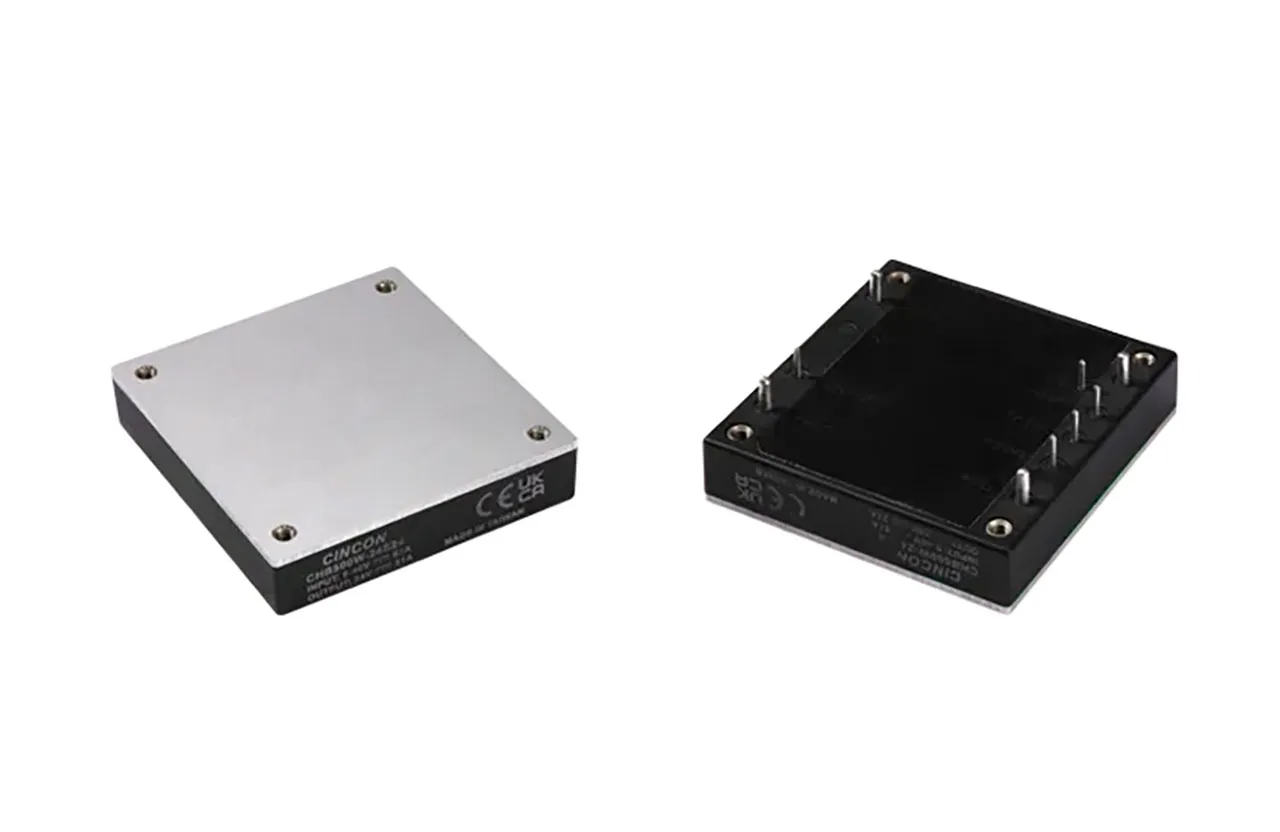

Isolated Regulated DC-DC Converter 500W 28V 18A Out 9-40Vin Positive Logic Remote ON/OFF
Features
- Efficiency up to 91.5%
- Fixed switching frequency
- Regulated outputs
- Remote ON/OFF
- Low no load power consumption
- Fully protected: over temperature, over current, over voltage, UVLO
- 3000V DC I/O isolation
- Operating temperature: -40C to 105C
- Half brick size meets industrial standard 2.28" x 2.4" x 0.5"
- Safety meets UL/IEC/EN 62368-1 2nd (Basic Insulation)
- Shock and vibration MIL-STD-810F compliant
- Fire & smoke EN 45545-2 compliant
- 5000m operating altitude
- Opional model includes single wire parallel control (those with model# suffix "-PC")
Overview
Isolated Regulated DC-DC Converter 500W 28V 18A Out 9-40Vin Positive Logic Remote ON/OFF.
Product Identification
Type:Isolated
Additional Feature:Positive Logic Remote ON/OFF
Product Type:DC-DC Regulated Single Output SMPS
Manufacturer Series:CHB500W
Compliance
Agency Approvals:UL, CE, EN, UKCA
Dimensions & Appearance
Color:Black
Height:0.5 in.
Width:2.28 in.
Length:2.40 in.
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Input
Input Frequency:N/A
Input Voltage Range:9 VDC to 40 VDC
Input Voltage:24 VDC
Maximum Input Current:22.4 A
Output
Number of Outputs:1
Output Connector Diameters:1 mm
Output Connector Type:PC Pins
Output Voltage:28 VDC
Additional Output Voltages (VDC):N/A
Output Current:18 A
Features
Isolation Voltage:3000V
Pins:8
AC Power Cord:N/A
Efficiency:90%
Power Rating:500 W
