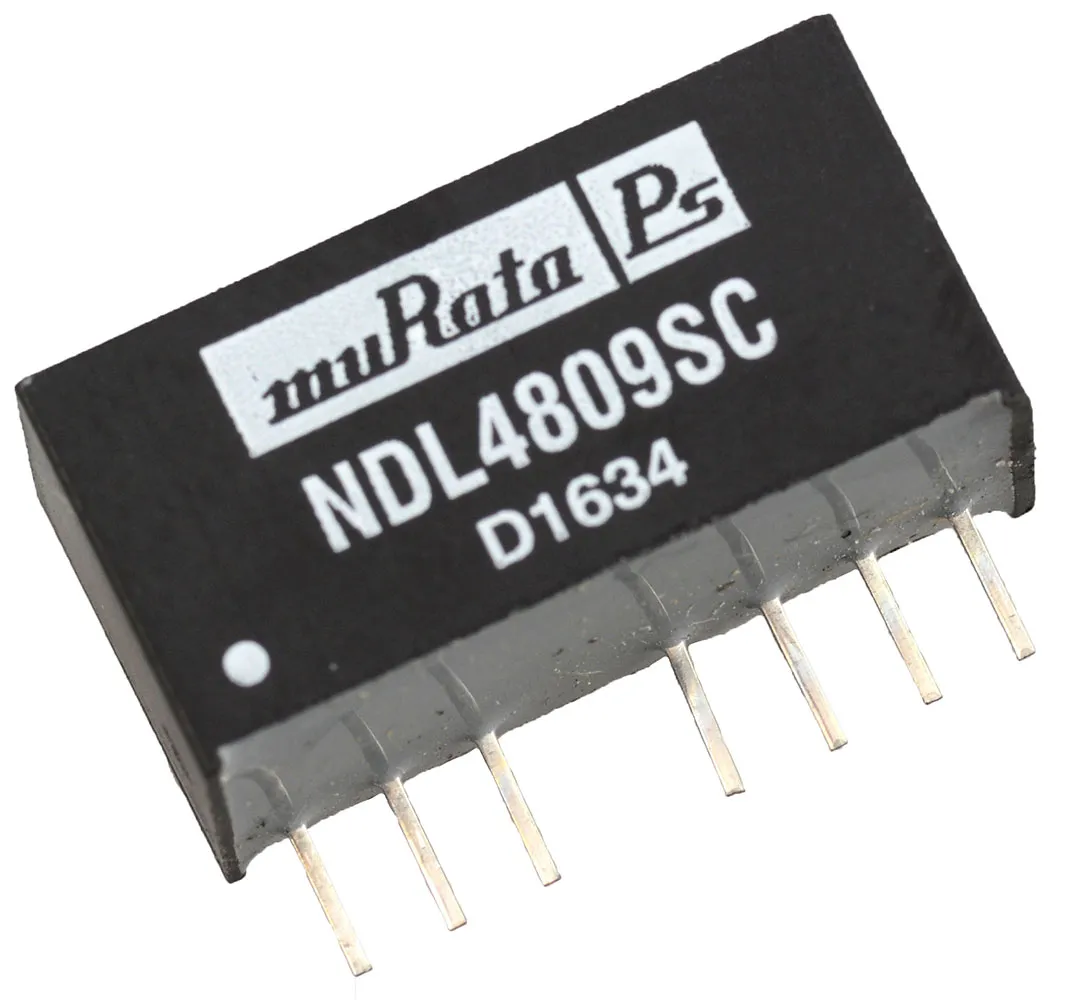

Isolated Module DC-DC Converter 9V 222mA Output 36V to 72Vin

Specifications

  • Series: NDL (2W)
  • Type: Isolated Module
  • Number of Outputs: 1
  • Voltage - Output 1: 9 V
  • Current - Output (Max): 222 mA
  • Power (Watts): 2 W
  • Voltage - Input (Min): 36 V
  • Voltage - Input (Max): 72 V
  • Applications: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 80%
  • Mounting Type: Through Hole
  • Package: 8-SIP Module, 7 Leads
  • Size: 0.86" L x 0.36" W x 0.44" H (21.8 mm x 9.1 mm x 11.2 mm)
  • Voltage - Isolation: 1 kV

Product Identification

Type:Isolated
Product Type:DC-DC Converter SMPS
Manufacturer Series:NDL

Dimensions & Appearance

Color:Black
Height:0.44 in.
Width:0.36 in.
Length:0.86 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Maximum Input Current:0.052 A
Input Voltage:48 VDC
Input Voltage Range:36 VDC to 72 VDC

Output

Number of Outputs:1
Output Voltage:9 VDC
Output Current:0.222 A
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A

Features

Pins:7
Efficiency:80%
Power Rating:2 W
,
