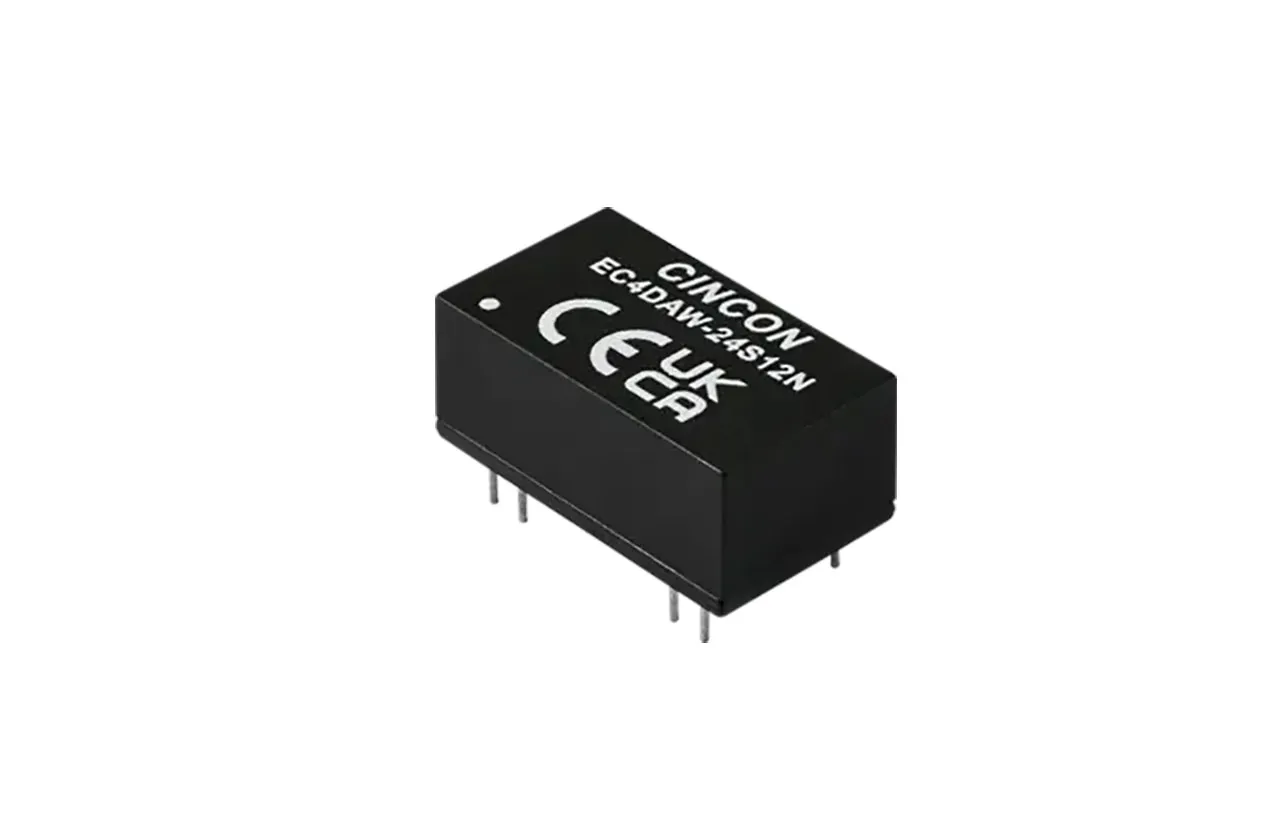

Isolated DC-DC Converter 6W 12V 500mA Regulated Output 9-36Vin PCB Mount Negative Logic Remote ON/OFF
Product Identification
Type:Isolated
Additional Feature:Negative Logic Remote ON/OFF
Product Type:DC-DC Converter SMPS
Manufacturer Series:EC4DAW
Compliance
Agency Approvals:CE, EN, UKCA
Dimensions & Appearance
Color:Black
Height:0.39 in.
Width:0.54 in.
Length:0.95 in.
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Input
Input Frequency:N/A
Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:0.8 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Output Current:0.50 A
Additional Output Voltages (VDC):N/A
Features
Pins:7
Isolation Voltage:3000VDC
AC Power Cord:N/A
Power Rating:6 W
