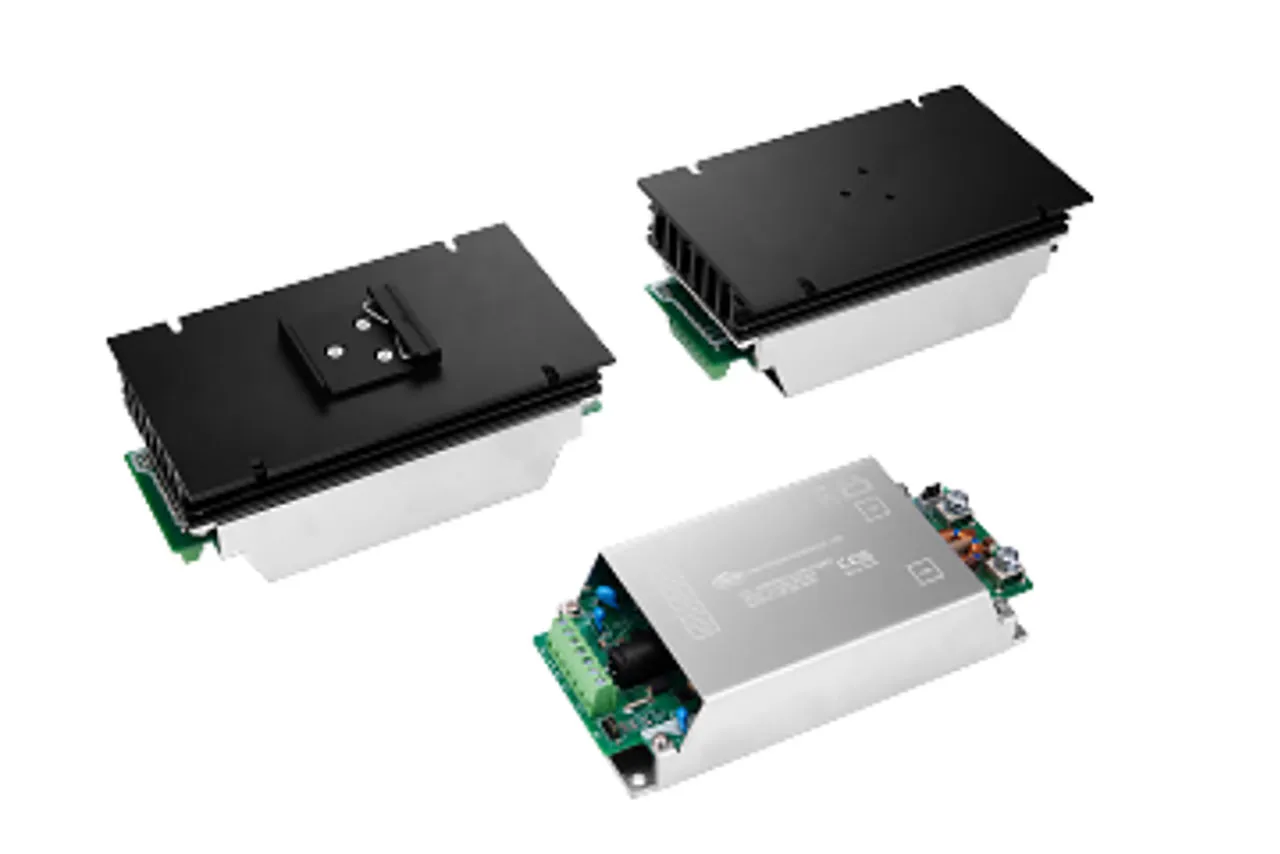

Isolated DC-DC Converter 200W 12V 16.7A Out 14-160Vin Chassis Mount with Cover Built-In Filter Positive Logic Remote On-Off

Features

  • Efficiency Up to 89.5%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Positive Logic Remote On/Off
  • Fully Protected (OTP/OCP/OVP/UVLO)
  • 3000Vac I/O Isolation
  • Operating Case Temperature -40 to +95°C
  • UL 62368-1 2nd (Reinforce Insulation) Approval for DC Modules
  • EN 50155 for EMC Characteristic
  • Shock & Vibration EN 50155 (EN 61373) Compliant
  • Fire & Smoke EN 45545-2 Compliant
  • 5000m Operating Altitude
  • Build-In EMI Filter
  • Chassis Mount Built-in Filter with Cover
  • Baseplate Cooled

Overview

Isolated DC-DC Converter 200W 12V 16.7A Out 14-160Vin Chassis Mount with Cover Built-In Filter Positive Logic Remote On-Off.

Product Identification

Additional Feature:Positive Logic Remote ON/OFF, Chassis Mount Built-In Filter with Cover
Product Type:Isolated DC-DC Converter
Manufacturer Series:CHB200W12-72S CMFD

Compliance

Agency Approvals:CE, UKCA, EN

Dimensions & Appearance

Color:Silver
Height:1.56 in.
Width:3.09 in.
Length:6.98 in.
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:95°C

Input

Input Voltage Range:14 VDC to 160 VDC
Input Voltage:72 VDC, 110 VDC
Maximum Input Current:3.086 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:16.70 A

Features

Pins:13
AC Power Cord:N/A
Efficiency:89.5%
Power Rating:200 W
,
