Isolated DC-DC Converter 15V 2666mA Regulated Output 10-160Vin Chassis Mount DIN Rail Railway Turnkey with FBL127 Heatsink | Jameco.com

New Product

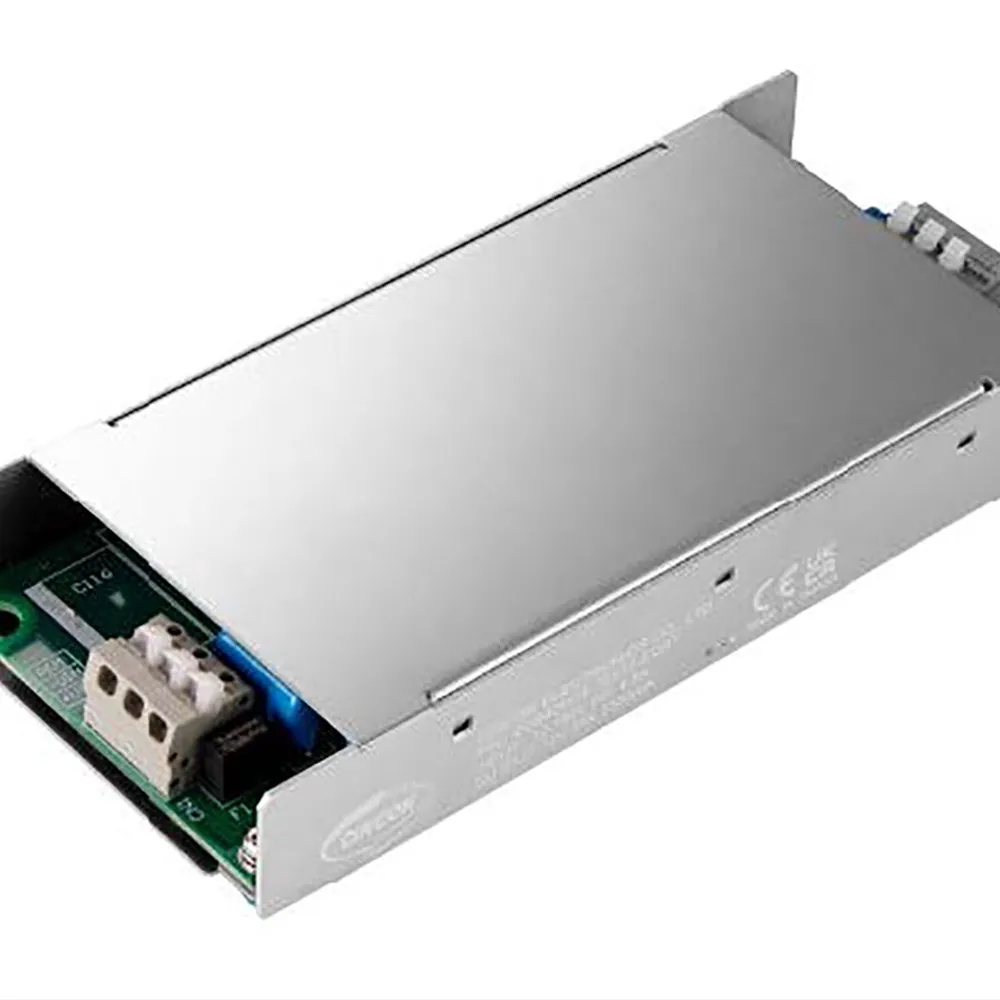

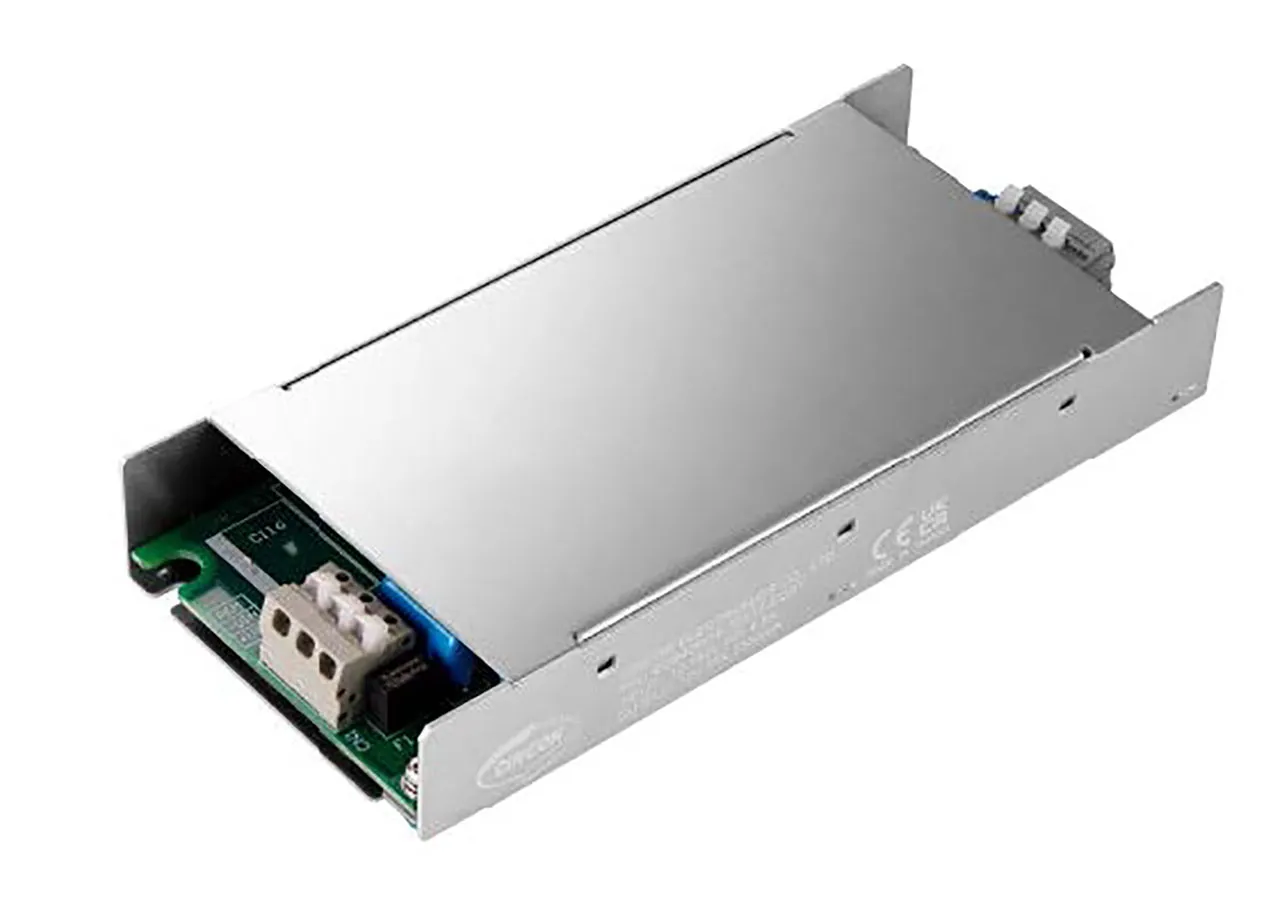

Isolated DC-DC Converter 15V 2666mA Regulated Output 10-160Vin Chassis Mount DIN Rail Railway Turnkey with FBL127 Heatsink

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$161.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$161.950	-	-
5+	$150.950	11.00	6.79%
25+	$140.950	21.00	12.97%

Isolated DC-DC Converter 15V 2666mA Regulated Output 10-160Vin Chassis Mount DIN Rail Railway Turnkey with FBL127 Heatsink

Product Identification

Additional Feature:With FBL127 Heatsink

Product Type:Isolated DC-DC Converter

Manufacturer Series:ECB40W18 ECRT/EDRT

Agency Approvals:UL 62368-1, CE, EN, UKCA

Color:Silver

Height:2.05 in.

Width:2.56 in.

Length:5.63 in.

Mounting:Chassis + DIN Rail + Railway Turnkey

Minimum Operating Temperature:-40°C

Maximum Operating Temperature:95°C

Package:Enclosed

Input Voltage Range:10 VDC to 160 VDC

Input Voltage:72 VDC

Maximum Input Current:4.5 A

Number of Outputs:1

Output Voltage:15 VDC

Output Connector Type:Screw Terminal Block

Additional Output Voltages (VDC):N/A

Output Current:2.67 A

Pins:6

AC Power Cord:N/A

Efficiency:87.5%

Power Rating:40 W
