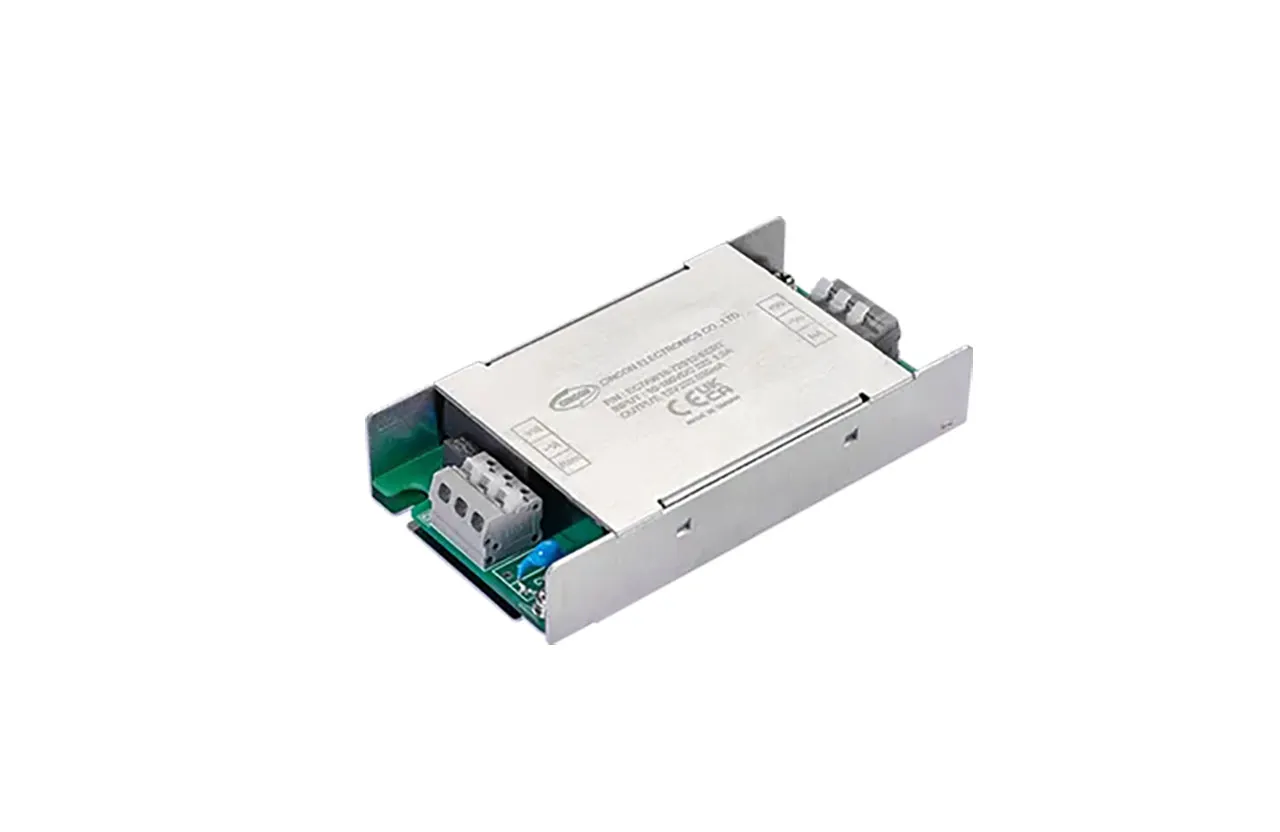

Isolated DC-DC Converter 10W ±15V ±333mA Out 10-160Vin Negative Logic Remote On-Off Enclosed Chassis Mount DIN Rail Railway Turnkey and Protective Coating
Features
- Enclosed Chassis Mount +DIN Rail +Railway Turnkey
- With Protective Coating
- Efficiency Up to 87%
- Fixed Switching Frequency
- Regulated Outputs
- Negative Logic Remote On/Off
- Low No Load Power Consumption
- Fully protected (OCP/OVP/UVLO)
- 3000Vac I/O Isolation
- Operating Case Temperature -40 to +100°C
- UL62368-1 3rd (Reinforced Insulation) Approval for DC Modules
- Compliant with EN55032/EN55035/EN50155, EN50121-3-2/EN45545-2
- Safety Meets IEC/EN/UL 62368-1
- Chassis Mount, Baseplate Cooled
- Low Inrush Current
- Input Reverse Polarity Protection
- EN50155 Class S3/ Class C2 Criteria A without External Capacitor
- Output LED Indicator
- 4.00" x 2.14" x 1.38" Size for EDRT
Overview
Isolated DC-DC Converter 10W ±15V ±333mA Out 10-160Vin Negative Logic Remote On-Off Enclosed Chassis Mount DIN Rail Railway Turnkey and Protective Coating.
Product Identification
Additional Feature:Negative Logic Remote ON/OFF, With Protective Coating
Product Type:DC-DC Converter for Railway SMPS
Manufacturer Series:EC7AW18 EDRT
Compliance
Agency Approvals:UL 62368-1, CE, UKCA, EN
Dimensions & Appearance
Color:Gray
Height:0.80 in.
Width:2.14 in.
Length:4 in.
Mounting:DIN Rail
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Input
Input Voltage Range:10 VDC to 160 VDC
Input Voltage:72 VDC
Maximum Input Current:1 A
Output
Number of Outputs:1
Output Current (Channel 1):±0.333 A
Output Voltage (Channel 2):-15 VDC
Output Voltage (Channel 1):15 VDC
Additional Output Voltages (VDC):-15 VDC
Output Voltage:15 VDC
Output Connector Type:Screw Terminals
Output Current:±0.333 A
Features
Pins:6
Minimum Isolation Voltage:3000V
AC Power Cord:N/A
Efficiency:85%
Power Rating:10 W
