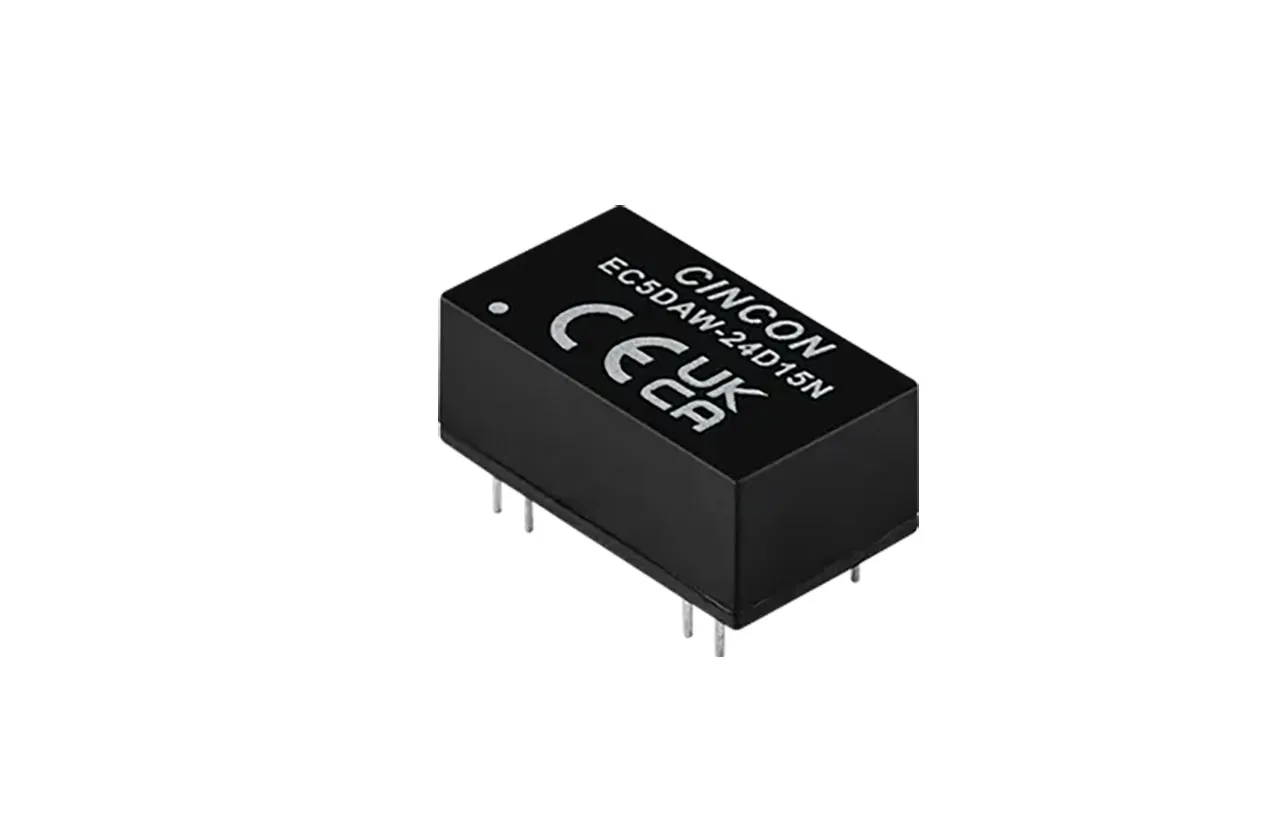

Isolated DC-DC Converter 10W ±12V ±417mA Out 18-74Vin Negative Logic Remote On-Off PCB-Mount

Features

  • 10W Isolated Output
  • Efficiency up to 89%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Negative Logic Remote On/Off
  • 3000Vac I/O Isolation
  • Continuous Short Circuit Protection
  • Safety Meets IEC/EN/UL 62368-1
  • Shock & Vibration MIL-STD-810F Compliant

Overview

Isolated DC-DC Converter 10W ±12V ±417mA Out 18-74Vin Negative Logic Remote On-Off PCB-Mount.

Product Identification

Type:Isolated
Additional Feature:Negative Logic Remote ON/OFF
Product Type:DC-DC Converter SMPS
Manufacturer Series:EC5DAW

Compliance

Agency Approvals:CE, EN, UKCA

Dimensions & Appearance

Color:Black
Height:0.39 in.
Width:0.54 in.
Length:0.95 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:18 VDC to 74 VDC
Maximum Input Current:0.24 A
Input Voltage:48 VDC

Output

Number of Outputs:2
Additional Output Voltages (VDC):-12 VDC
Output Voltage:12 VDC
Output Connector Type:PC Pins
Output Current:±0.417 A

Features

Isolation Voltage:3000V
Pins:7
Efficiency:87%
Power Rating:10 W
,
