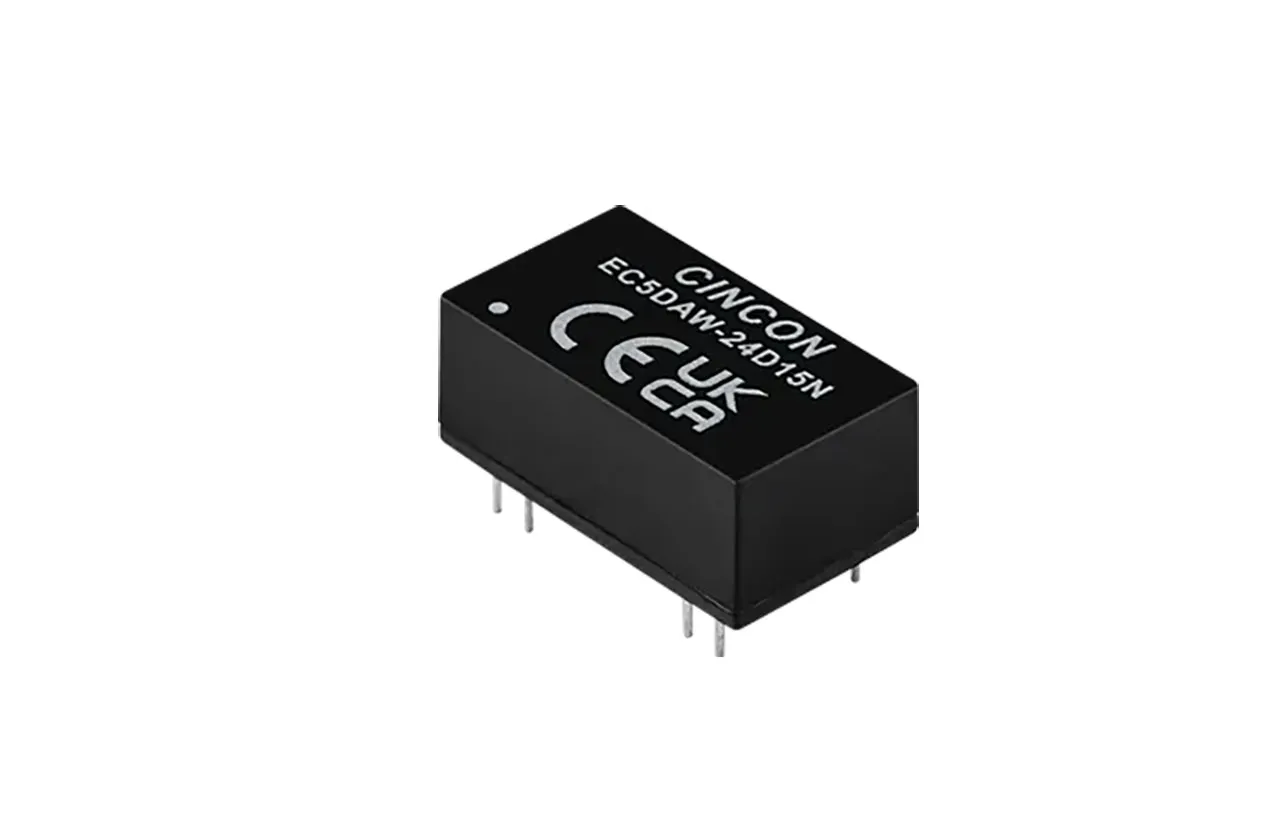

Isolated DC-DC Converter 10W 15V 666mA Out 9-36Vin Negative Logic Remote On-Off PCB-Mount

Features

  • 10W Isolated Output
  • Efficiency up to 89%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Negative Logic Remote On/Off
  • 3000Vac I/O Isolation
  • Continuous Short Circuit Protection
  • Safety Meets IEC/EN/UL 62368-1
  • Shock & Vibration MIL-STD-810F Compliant

Overview

Isolated DC-DC Converter 10W 15V 666mA Out 9-36Vin Negative Logic Remote On-Off PCB-Mount.

Product Identification

Type:Isolated
Manufacturer Series:EC5DAW
Additional Feature:Negative Logic Remote ON/OFF
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:CE, EN, UKCA

Dimensions & Appearance

Color:Black
Height:0.39 in.
Width:0.54 in.
Length:0.95 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:0.468 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:15 VDC
Output Current:0.666 A

Features

Isolation Voltage:3000V
Pins:7
Efficiency:89%
Power Rating:10 W
,
