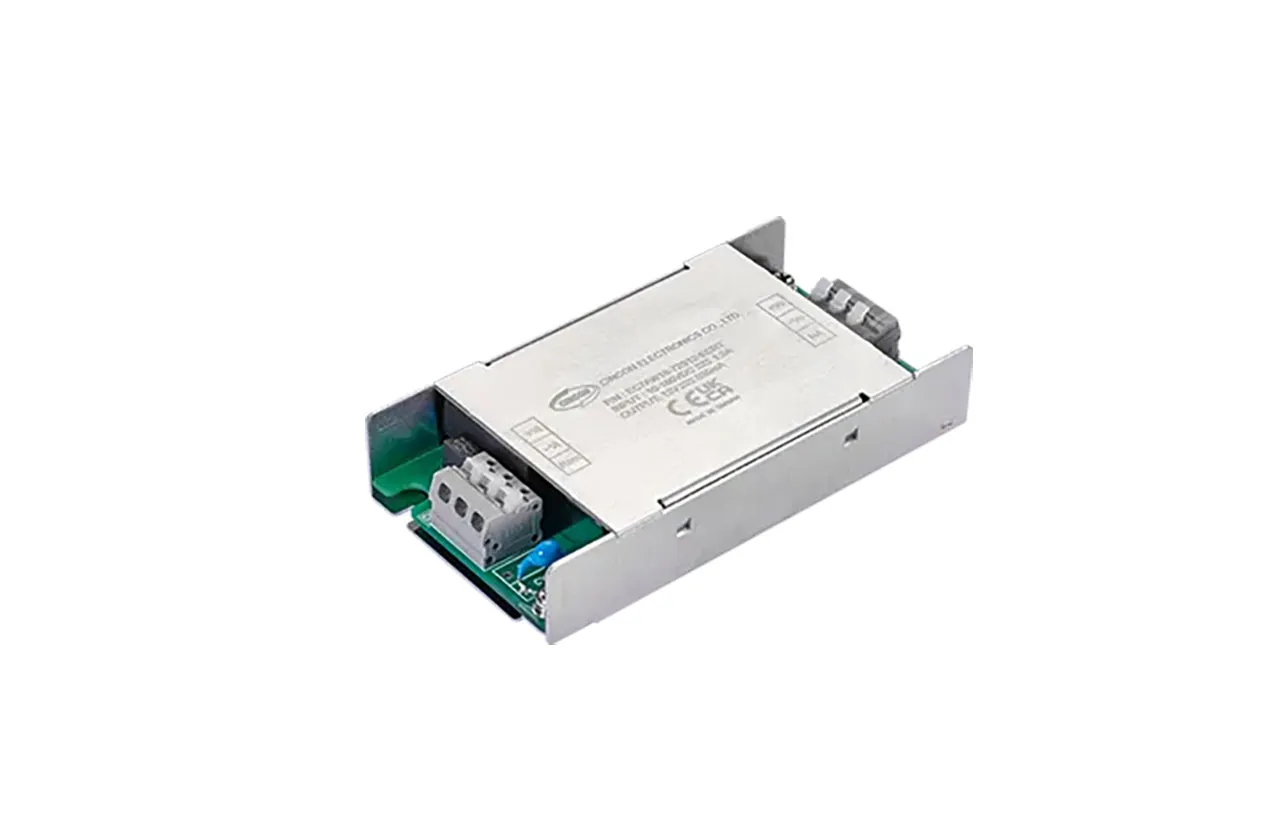

Isolated DC-DC Converter 10W 12V 835mA Out 10-160Vin Negative Logic Remote On-Off Enclosed Chassis Mount DIN Rail Railway Turnkey

Features

  • Enclosed Chassis Mount +DIN Rail +Railway Turnkey
  • Without Protective Coating
  • Efficiency Up to 87%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Negative Logic Remote On/Off
  • Low No Load Power Consumption
  • Fully protected (OCP/OVP/UVLO)
  • 3000Vac I/O Isolation
  • Operating Case Temperature -40 to +100°C
  • UL62368-1 3rd (Reinforced Insulation) Approval for DC Modules
  • Compliant with EN55032/EN55035/EN50155, EN50121-3-2/EN45545-2
  • Safety Meets IEC/EN/UL 62368-1
  • Chassis Mount, Baseplate Cooled
  • Low Inrush Current
  • Input Reverse Polarity Protection
  • EN50155 Class S3/ Class C2 Criteria A without External Capacitor
  • Output LED Indicator
  • 4.00" x 2.14" x 1.38" Size for EDRT

Overview

Isolated DC-DC Converter 10W 12V 835mA Out 10-160Vin Negative Logic Remote On-Off Enclosed Chassis Mount DIN Rail Railway Turnkey.

Product Identification

Additional Feature:Negative Logic Remote ON/OFF
Product Type:DC-DC Converter for Railway SMPS
Manufacturer Series:EC7AW18 EDRT

Compliance

Agency Approvals:UL 62368-1, CE, UKCA, EN

Dimensions & Appearance

Color:Gray
Height:0.80 in.
Width:2.14 in.
Length:4 in.
Mounting:DIN Rail

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Input

Input Voltage Range:10 VDC to 160 VDC
Input Voltage:72 VDC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Current (Channel 1):0.835 A
Output Voltage:12 VDC
Output Connector Type:Screw Terminals
Output Current:0.835 A

Features

Pins:6
Minimum Isolation Voltage:3000V
AC Power Cord:N/A
Efficiency:87%
Power Rating:10 W
,
