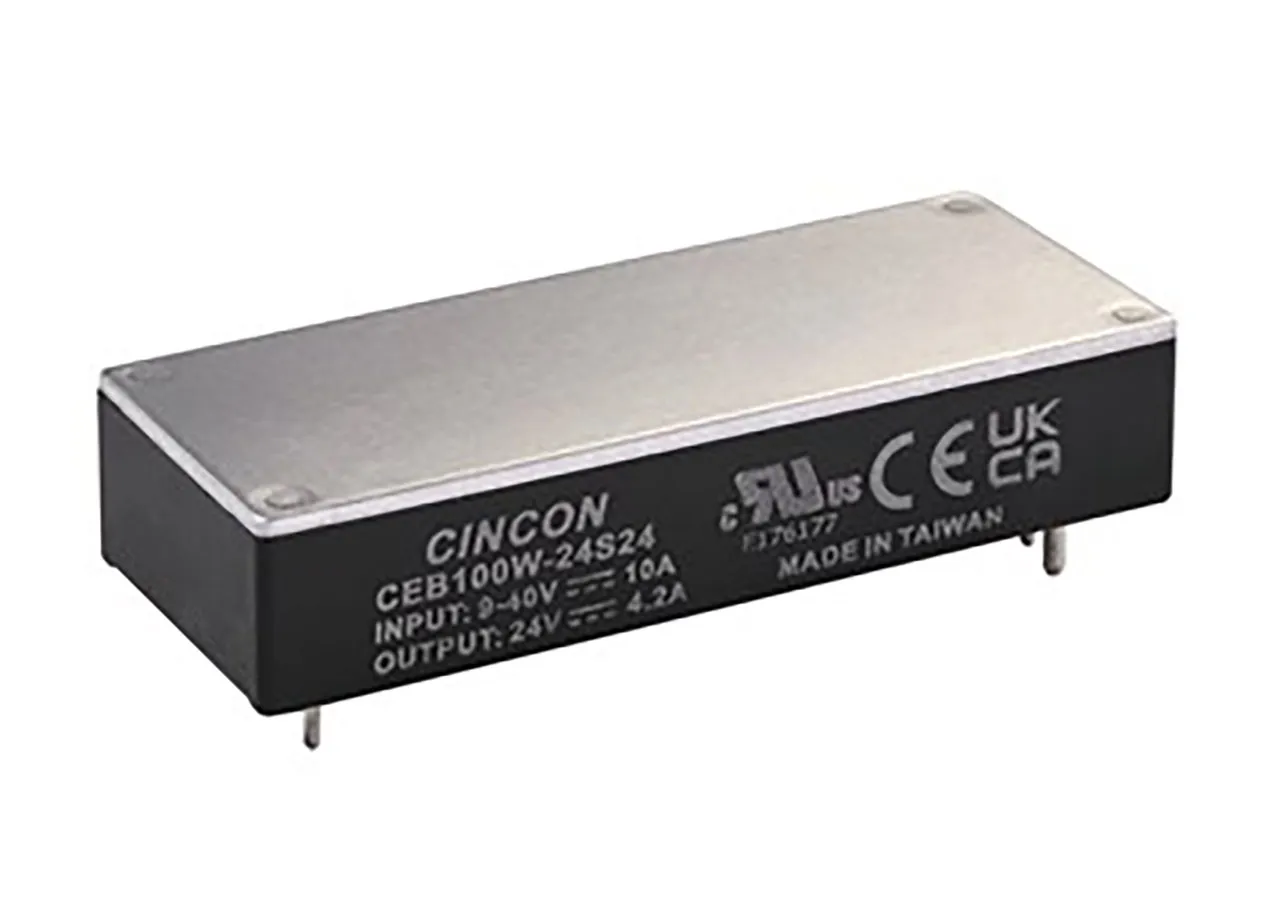

Isolated DC-DC Converter 100 Watt 24 VDC 4.2A Output 9-40Vin Eighth Brick Positive Logic Remote On/Off

Features

  • Efficiency Up to 93.5%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Remote On/Off
  • Fully Protected (OTP/OCP/OVP/UVLO)
  • 3000Vdc I/O Isolation
  • Operating Case Temperature -40 to +105°C
  • Eighth Brick Size Meet Industrial Standard (2.45"x1.05"x0.5")
  • CB Test Certificate IEC 62368-1
  • UL 62368-1 (Basic Insulation) Approval
  • Shock & Vibration MIL-STD-810F/EN 61373 Compliant
  • Fire & Smoke EN 45545-2 Compliant
  • 5000m Operating Altitude

Overview

CEB100W series is a 100-watt 1/8 brick isolated DC-DC converter with the 4:1 range from 9-40VDC or 16.5-74VDC depending on the model with available voltage output of 5VDC, 12VDC, 24VDC, 48VDC, and 54VDC. The CEB100W series also features remote on/off logic.

Product Identification

Type:Isolated
Additional Feature:Positive Logic Remote ON/OFF
Product Type:DC-DC Converter SMPS
Manufacturer Series:CEB100W

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, UKCA

Dimensions & Appearance

Color:Black
Height:0.50 in.
Width:1.05 in.
Length:2.45 in.

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Input

Input Frequency:270 KHz to 330 KHz
Input Voltage Range:9 VDC to 40 VDC
Input Voltage:24 VDC
Maximum Input Current:4.667 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Output Current:4.20 A

Features

Isolation Voltage:3000V
Pins:8
Efficiency:90.5%
Power Rating:100 W
,
