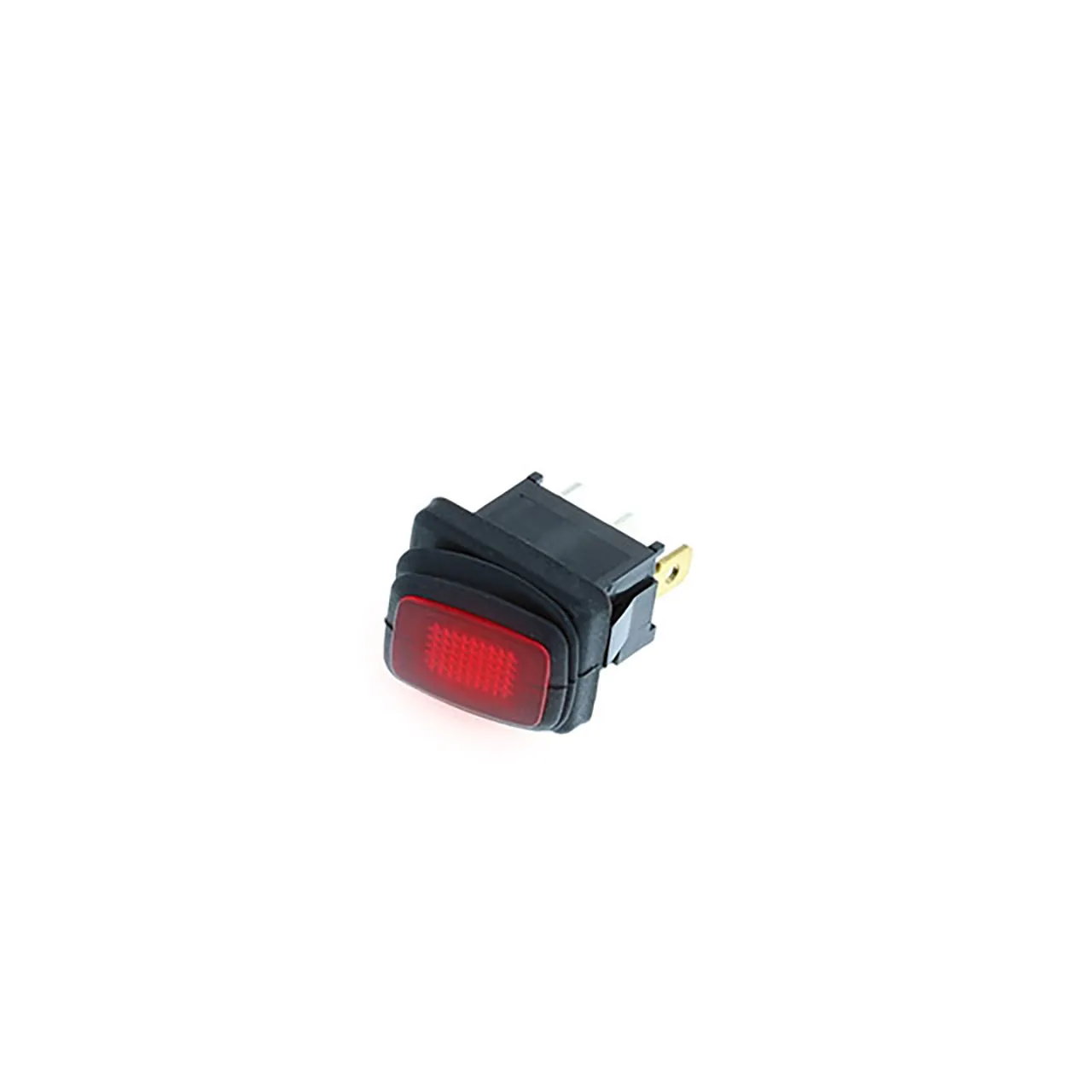

IP65 Mini Rocker - 3P SPST OFF-ON Red LED

Features

• Series: RF3
• Mounting Type: Panel Mount, Snap-In
• Circuit: SPST
• Switch FunctiON: ON-OFF
• Current Rating (Amps): 16A (DC)
• Voltage Rating - DC: 12 V
• Actuator Type: Flat - Illuminated
• Color - Actuator/Cap: Red
• Actuator Marking: No Marking
• Illumination Type, Color: LED, Red
• Illumination Voltage (Nominal): 12 VDC
• Termination Style: Quick Connect - 0.187" (4.7mm)
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Panel Cutout Dimensions: Rectangular - 19.20mm x 13.00mm
• Operating Temperature: -25°C to 85°C
• Approval Agency: CSA, cURus, ENEC
• Product Type: Rocker Switch
• Harmonized Code: 8536.50.4000
• ECCN: EAR99
• CAD Drawing (STP .zip)
• 360 Animation Download (.zip)

Overview

IP65 Mini Rocker - 3P SPST OFF-ON, Red LED.
