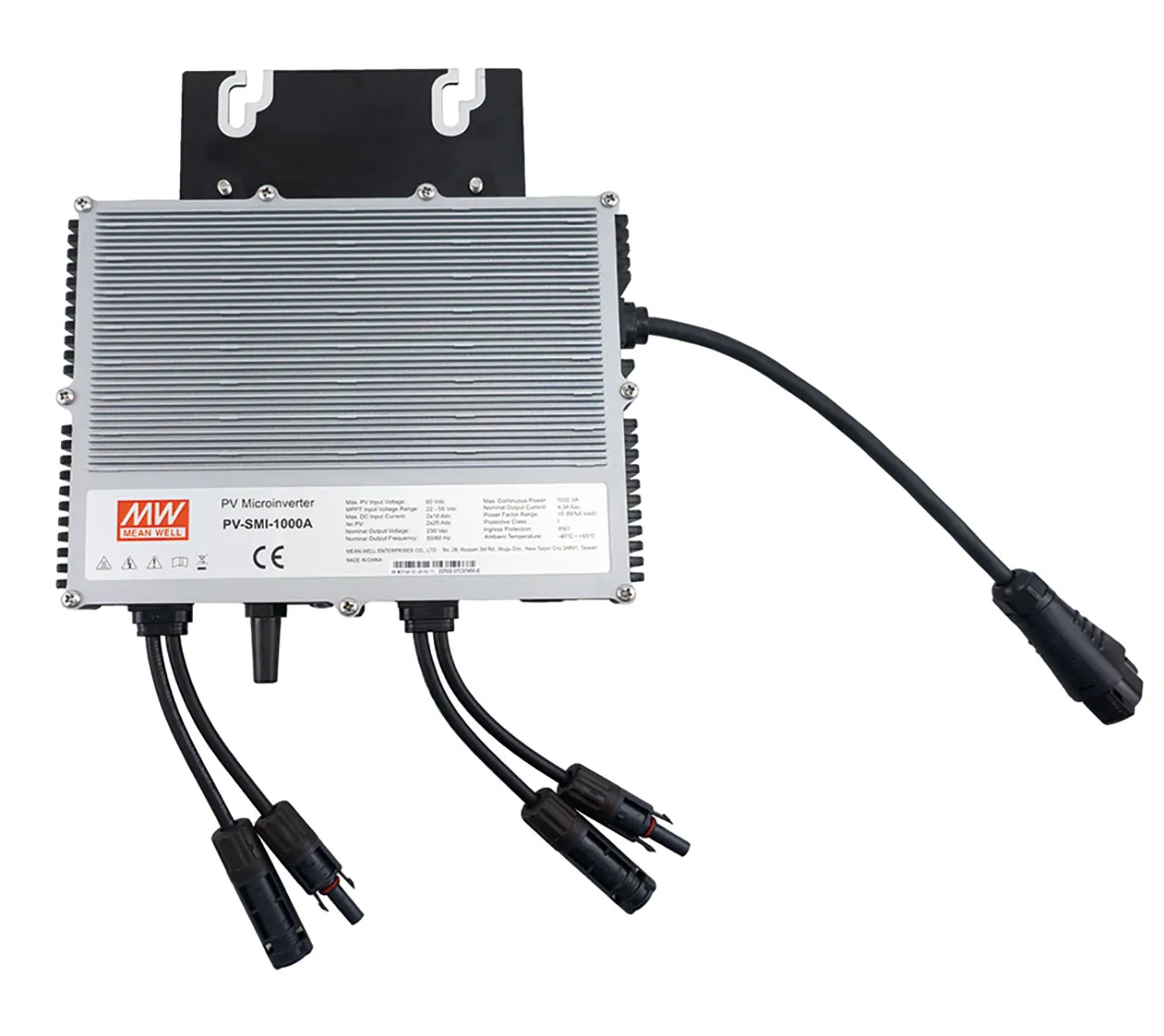

INVERTER,PV,MPPT,GRID-TIED,2x750W,22-60V,2x20A,960VA/240V/4A
Product Identification
Product Type:PV Grid-Tied Micro Inverter
Manufacturer Series:PV-SMI-1000
Compliance
Agency Approvals:ETL, EN
Dimensions & Appearance
Mounting:Chassis
Color:Silver
Height:1.83 in.
Length:10.55 in.
Width:9.84 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:65°C
Input
Input Voltage Range:2x750W (PV), 22 VDC to 55 VDC (MPPT)
Input Voltage:24 VDC
Maximum Input Current:2x20 A
Output
Number of Outputs:1
Output Connector Type:MC4
Output Voltage:240 VAC
Output Current:4 A
Features
AC Power Cord:NOT INCLUDED
Efficiency:97.3%
Power Rating:960 VA
