Internet Enabled Thermocouple Data Logger

Features

• 16 thermocouple inputs
• 24-bit A/D converter
• Up to 75 S/s/ch sample rate
• Thermocouple types J, K, R, S, T, N, E, and B supported
• Log data to internal storage or mapped network storage
• Internal 3GB memory - optional SD card, and USB slots
• Cold junction compensation
• Built-in web server allows access from any device with a web browser
• Alarming and notifications with email and SMS messaging
• Export data to csv, UFF, or binary for other applications
• Easy, flexible task scheduling
• No driver software to install
• WiFi support (WiFi dongle is not included)
• Ethernet port for connecting to a network or PC
• Four digital I/O for triggers and alarms

Overview

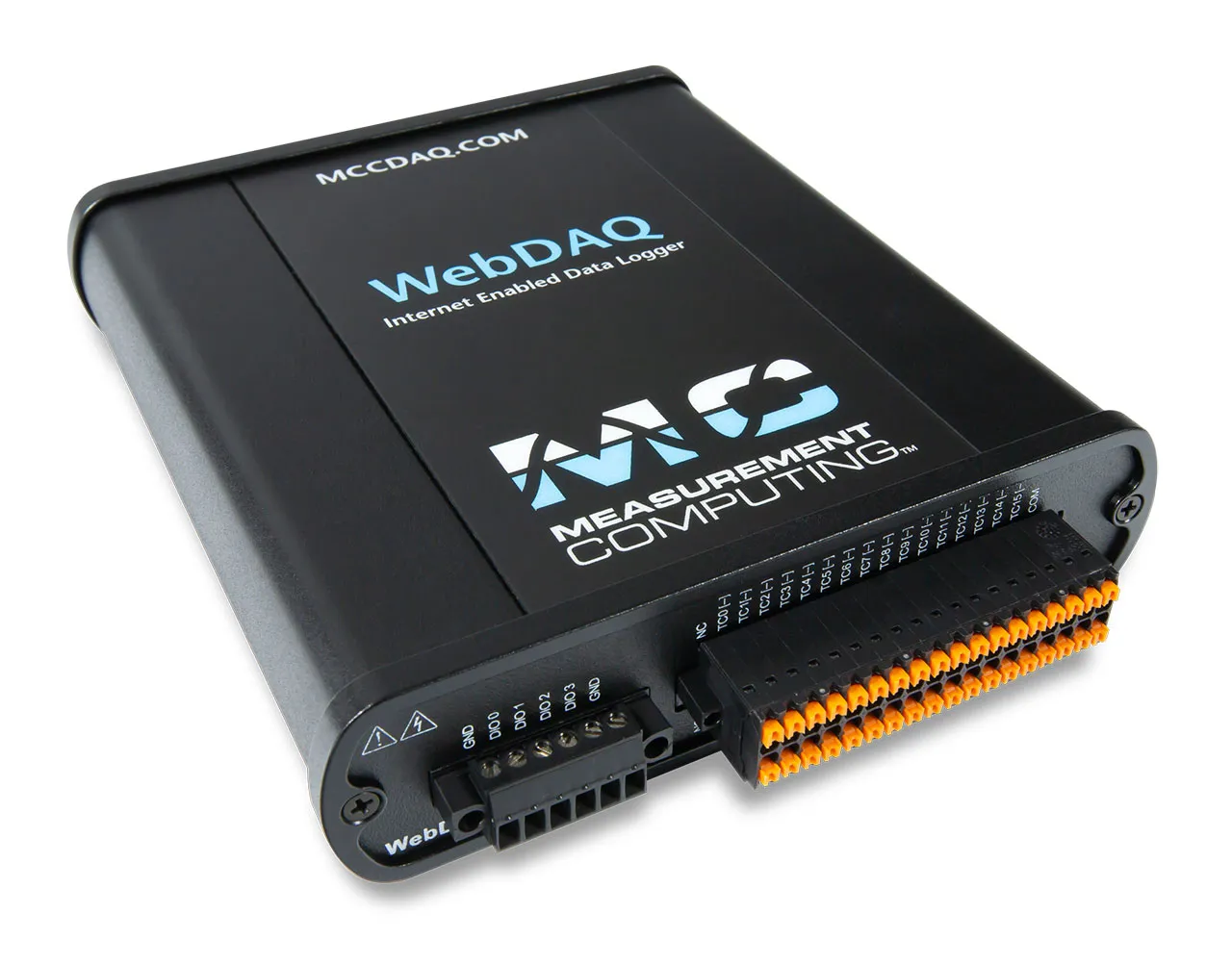

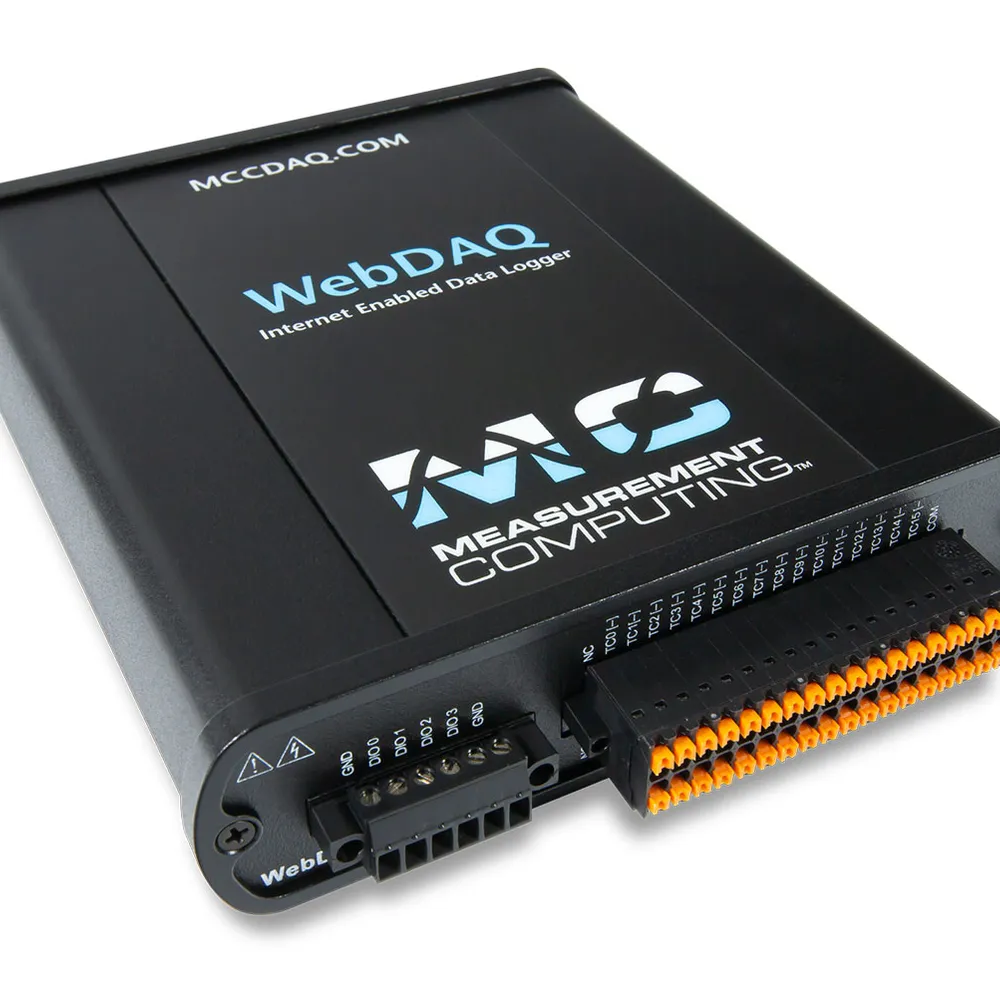

The MCC WebDAQ 316 is an independent temperature logger made for online monitoring and management. The WebDAQ contains all the necessary intelligence, so a PC or additional software is not required.
