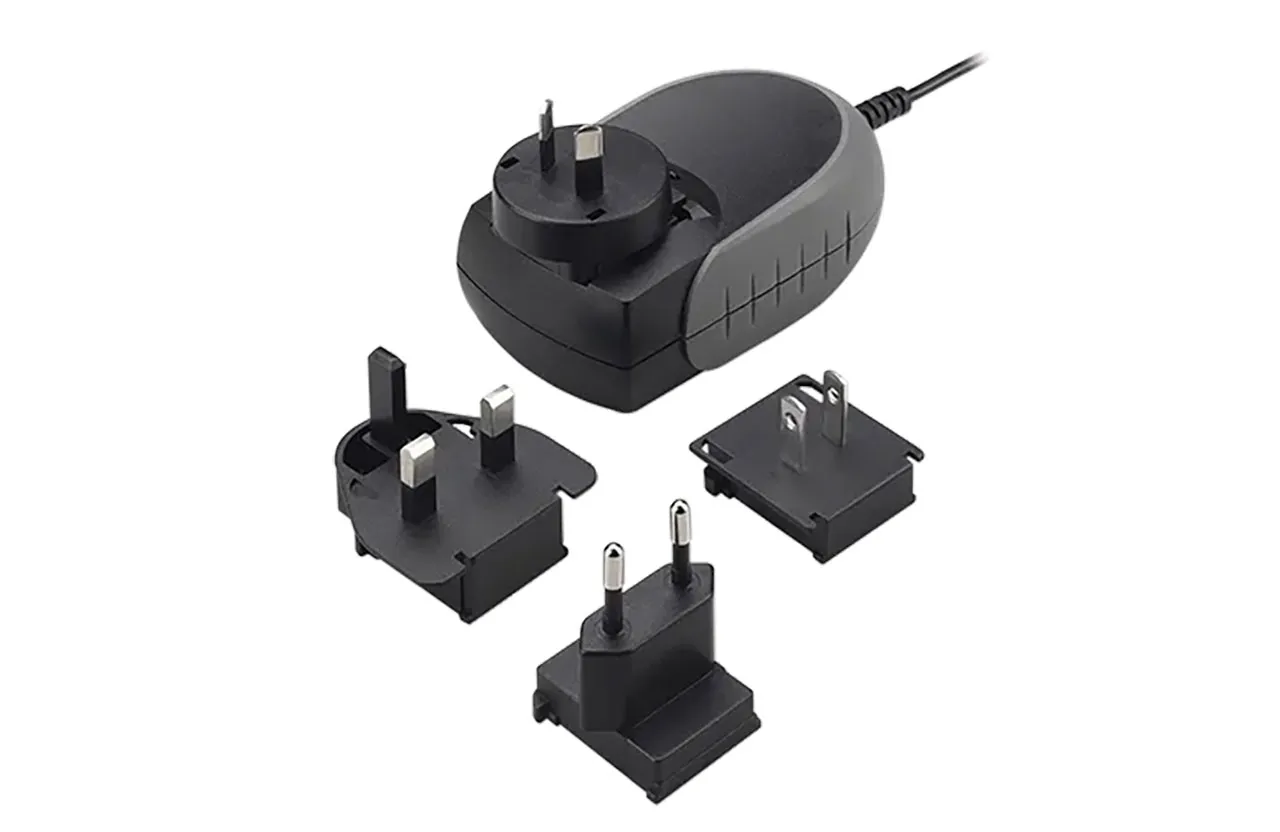

Interchangeable Wall Adapter 12V 2500mA 2.5x5.5mm Plug Gray-Black No AC Clips Included

Features

  • Universal Input Range 90 to 264Vac
  • High Efficiency up to 88%
  • Interchangeable AC Plugs
  • Leakage Current < 0.25mA
  • Class II
  • No Load Power Consumption < 75mW
  • Approval IEC/EN/UL 62368-1 Ed 3.0
  • Approval EN 55032, FCC CFR 47 Part 15 Class B
  • Operating Altitude 5000m
  • Over Voltage Protection
  • Continuous Short Circuit Protection
  • Meets CoC Tier 2 & DoE Level VI

Overview

Interchangeable Wall Adapter 12V 2500mA 2.5x5.5mm Plug Gray-Black No AC Clips Included.

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:TRG30R-V

Compliance

Agency Approvals: CE, CUL, EN, FCC, PSE, TUV, UKCA, UL

Dimensions & Appearance

Style:Wall Mount
Color:Gray-Black
Depth:1.32 in.
Height:2.67 in.
Length:4.24 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:Interchangeable
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.8 A

Output

Number of Outputs:1
Output Cord Length:5.9 ft.
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:2.50 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:N/A
Efficiency:87.7%
Power Rating:30 W
,
