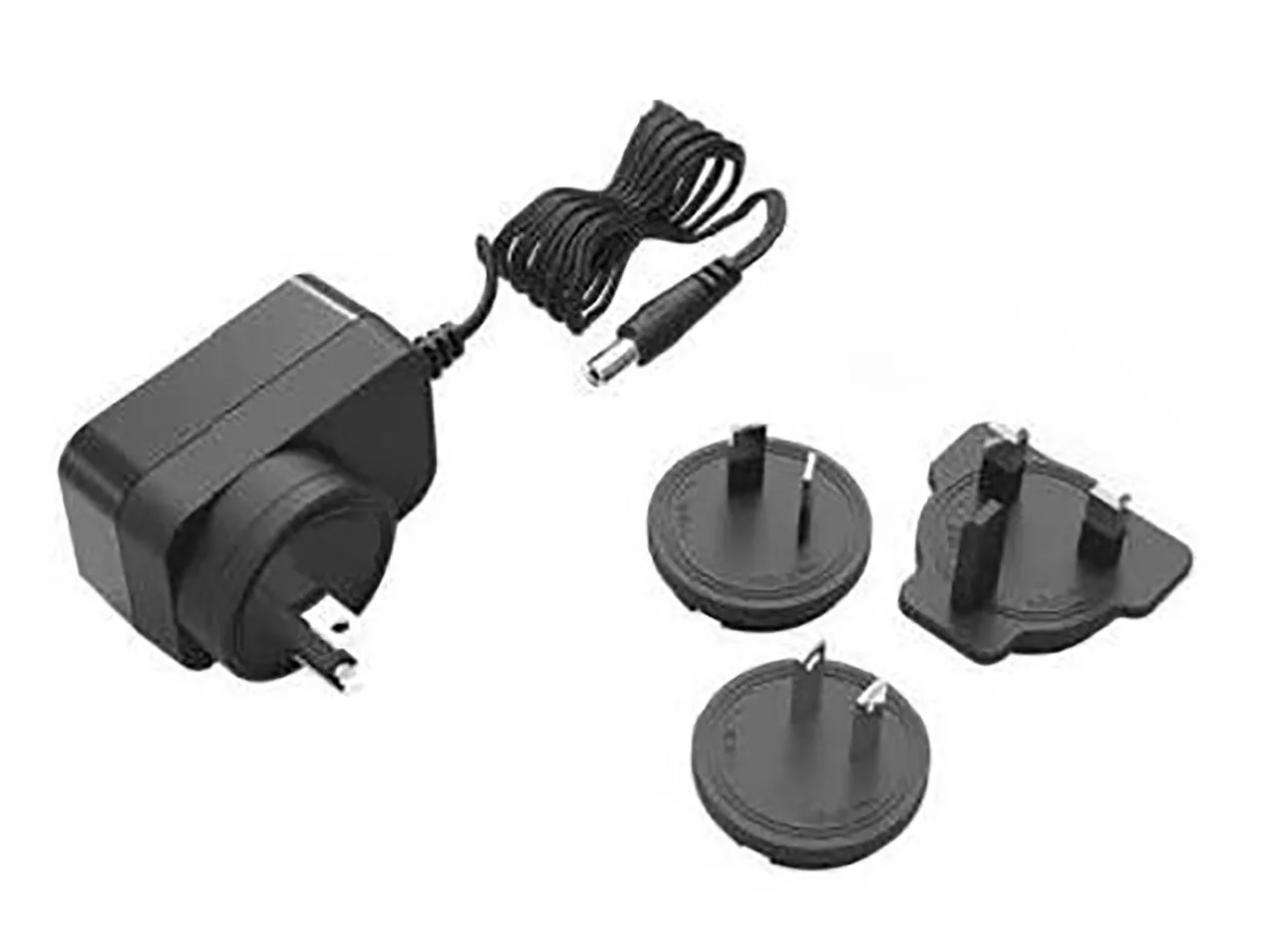

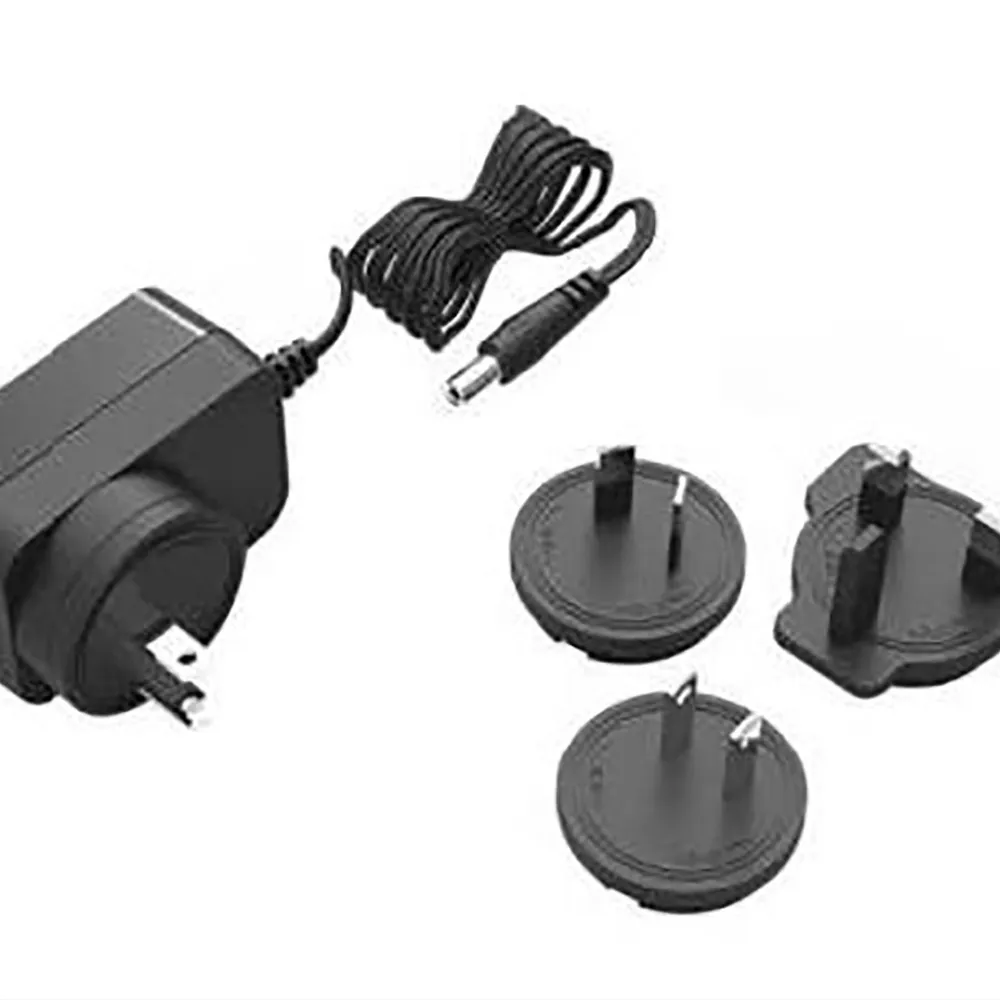

Interchangeable AC Clip Style Medical-Rated Wall Mount Power Adapter 12W 15V 800mA 2.5x5.5x11mm Plug UL
Product Identification
Product Type:Switching SMPS
Manufacturer Series:YSV12-M
Compliance
Agency Approvals:UL, CUL, CB, FCC
Dimensions & Appearance
Color:Black
Style:Interchangeable AC Clip
Height:1.48 in.
Width:1.65 in.
Length:2.48 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:50°C
Input
Input Connector:NEMA 1-15P
Input Frequency:50 Hz to 60 Hz
Input Voltage:85 VAC to 265 VAC
Maximum Input Current:0.5 A
Output
Number of Outputs:1
Output Cord Length:5 ft.
Output Connector Diameters:2.5mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:15 VDC
Output Current:0.80 A
Features
Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Power Rating:12 W
