Intel Xeon CPU BX80546KG3400EA - 3.40GHz Core 800MHz FSB 1MB Cache PGA604 Processor with Cooling Fan

Specifications

  • Status: End of Life
  • For Intel Server Chassis SC5275
  • Number of Cores: 1
  • Clock Speed: 3.4 GHz
  • L2 Cache: 1 MB
  • FSB Speed: 800 MHz
  • Instruction Set: 64-bit
  • Embedded Options Available: Yes
  • Lithography: 90 nm
  • Max TDP: 103 W
  • VID Voltage Range: 1.287 V to 1.4 V
  • TCASE: 72°C
  • Processing Die Size: 112 mm²
  • Number of Processing Die Transistors: 125 million
  • Sockets Supported: PPGA604
  • Low Halogen Options Available: See MDDS
  • Intel® Turbo Boost Technology: No
  • Intel® Virtualization Technology (VT-x): No

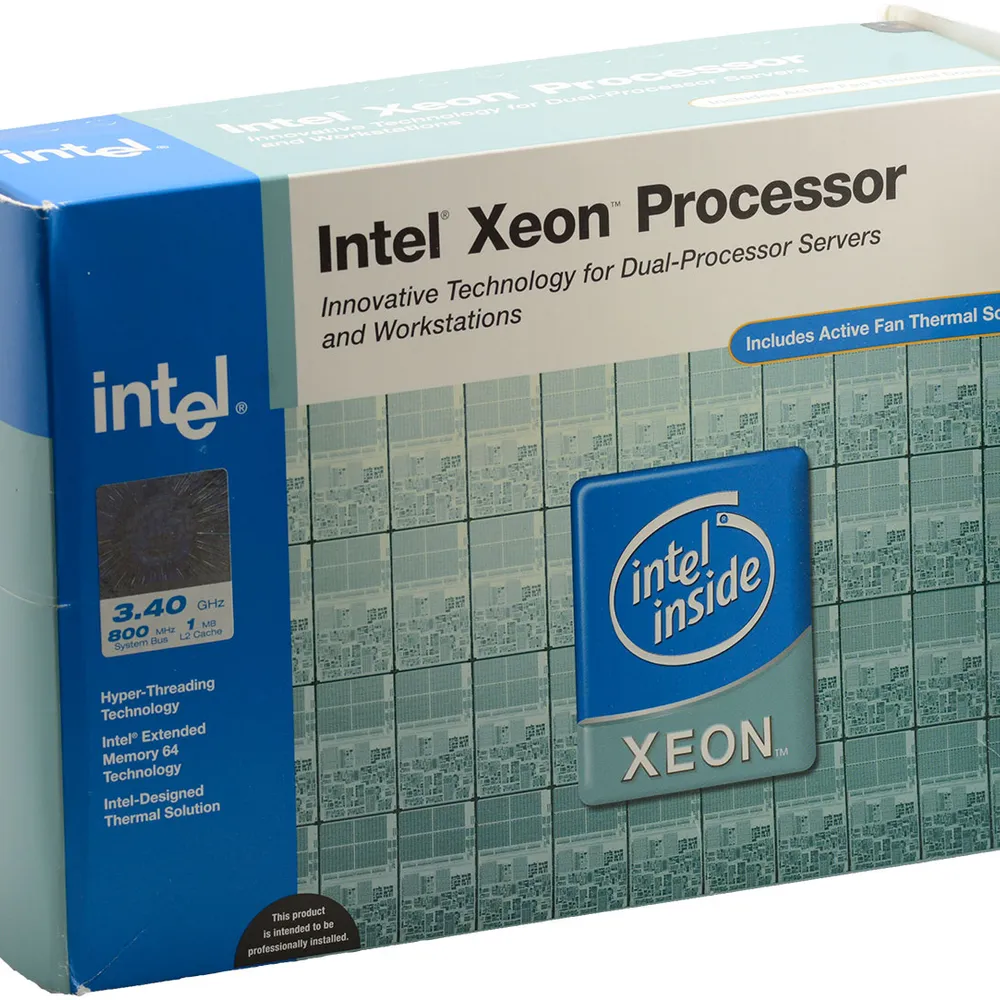

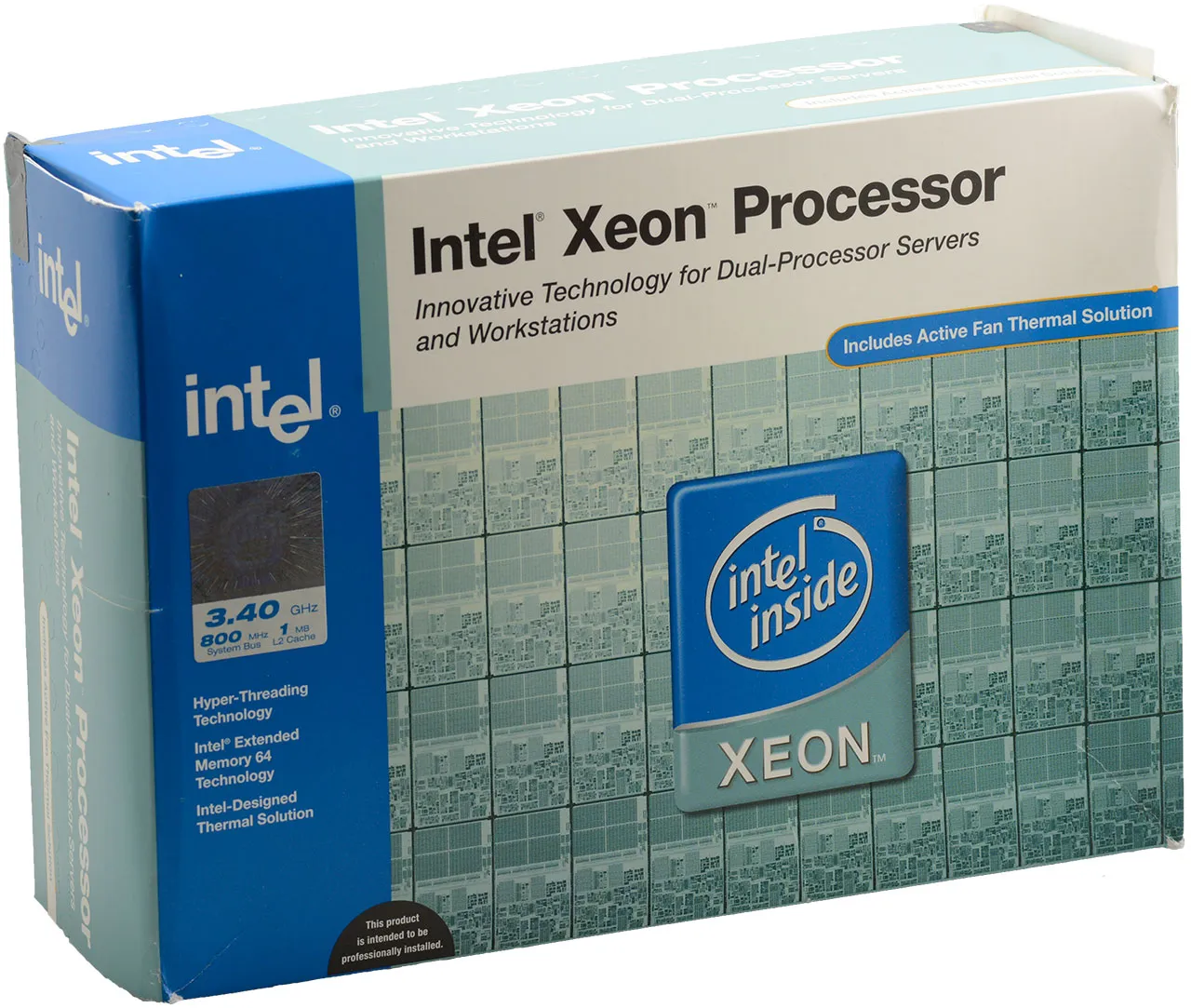

  • New in Box. Comes with cooling fan. (NOS - New Old Stock)

Overview

This Intel Xeon processor is designed for high performance servers and workstations. It includes a high-quality passive heatsink with processor wind tunnel to assist the integrator in processor thermal management. This processor is intended to be professionally installed.

,
