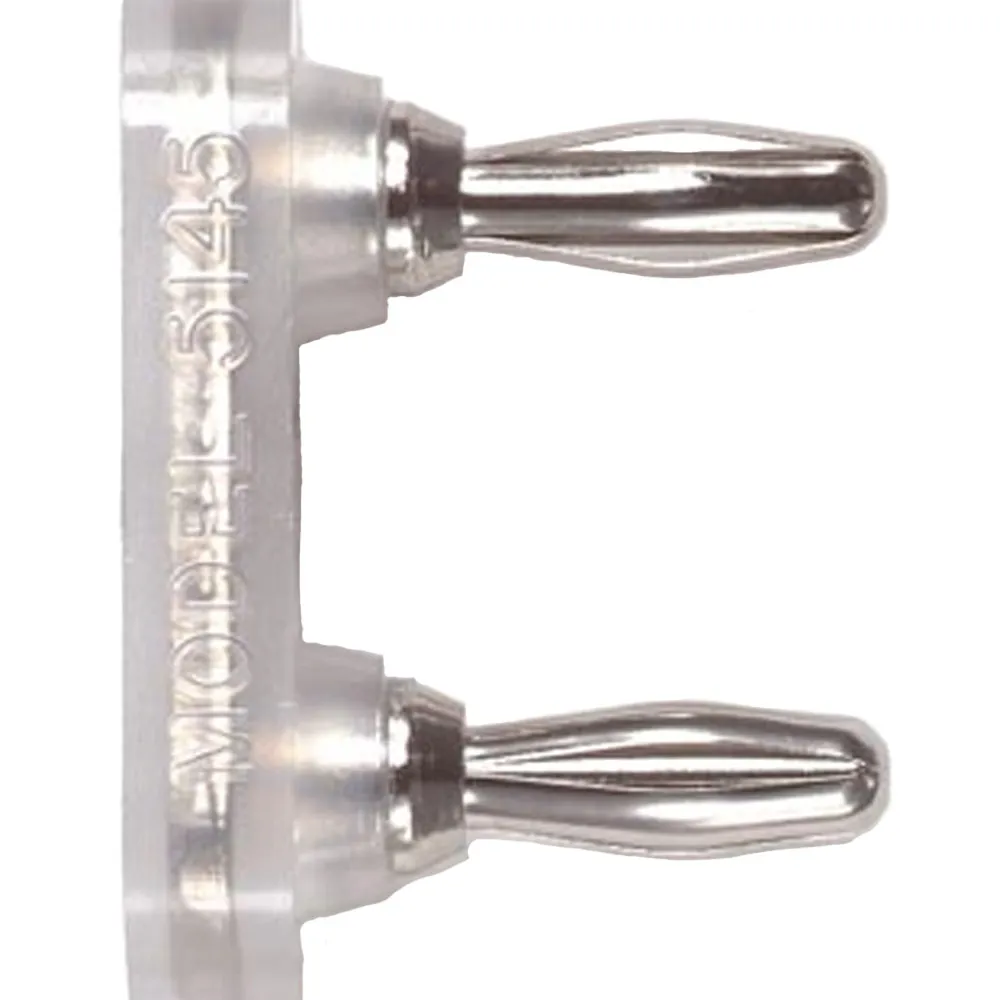

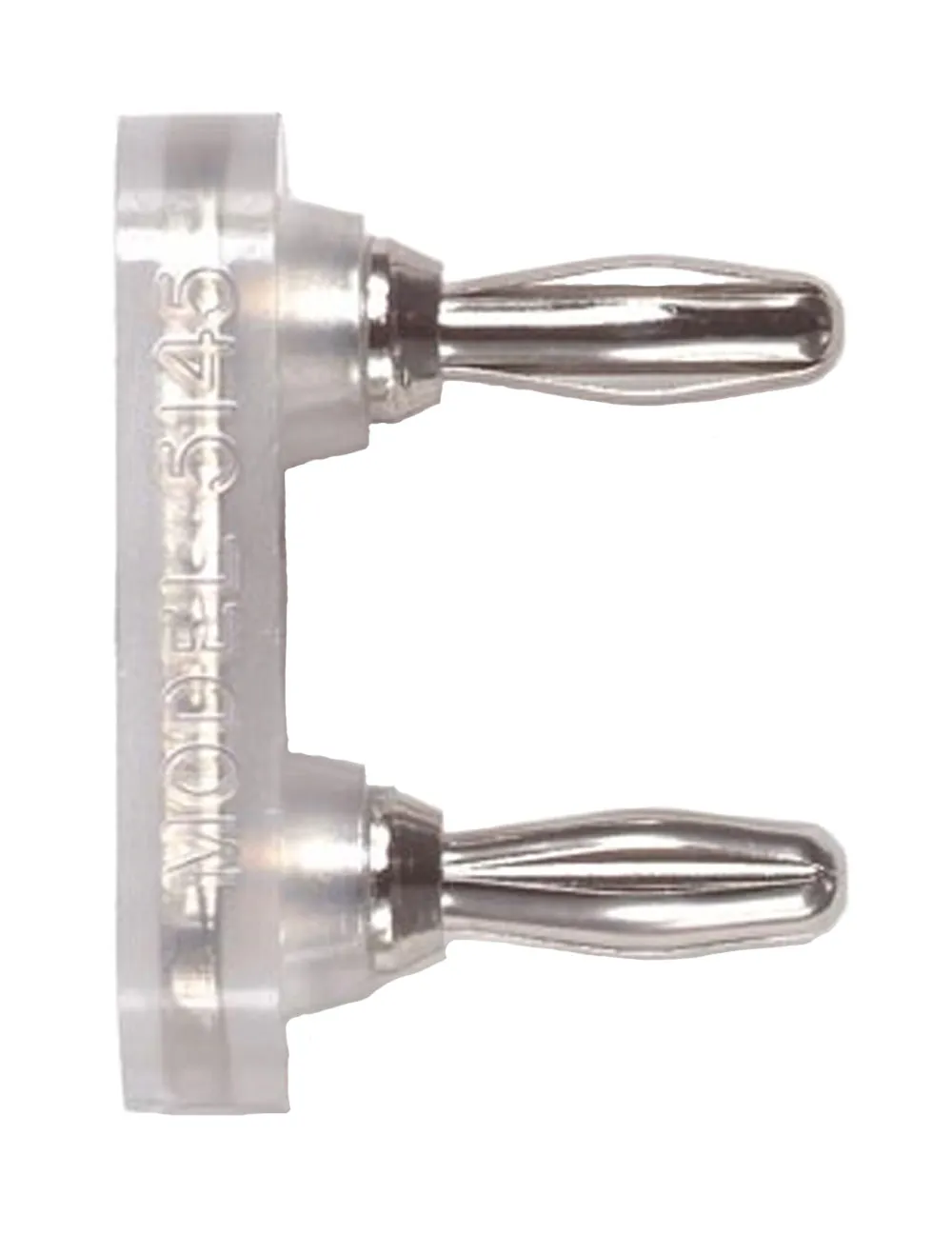

Insulated Double Banana Plug Shorting Bar

Features

  • Low profile, completely insulated shorting bar
  • Insulation has finger ridge for ease of insertion and removal
  • Mates to Model #2269 (P/N: 1816597) or any standard double banana jack

Specifications

  • Current: 15 A
  • Resistance: <1.5 mOhms (installed)
  • Operating temp: +50°C (+122°F) max.

Product Identification

Product Type:Banana Plug, Double, Shorting
Additional Feature:N/A

Dimensions & Appearance

Body Material:Brass
Mounting Type:Free Hanging
Color:Clear
Length:1.350 in.

Features

Contact Material:Brass
Insulation:Non-Mating End
Insulation Material:Polypropylene (PP)
Contact Plating:Nickel
Gender:Male
Wire Gauge (AWG):N/A
Termination:Solder
Voltage Rating:N/A
Current Rating:15 A
,
