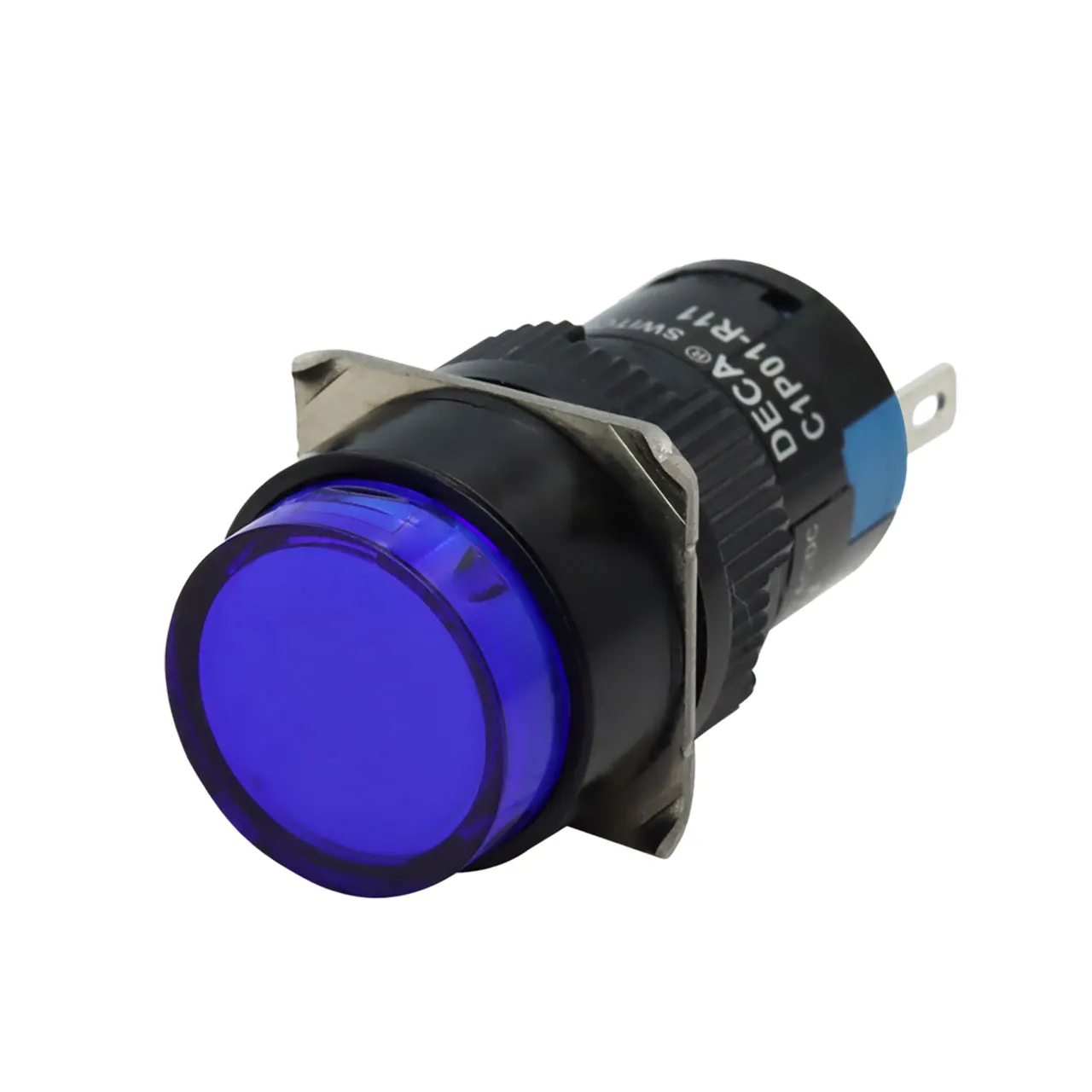

Industrial Panel Mount Push Button Switch Maintained 2NO2NC Blue Lighted 24V LED 16mm Assembly Hole Solder Lug

Features

    24V illuminated switch
  • Maintained operation
  • Solid housing design for operator and contact block to reduce installation space
  • Complete type with 16mm version
  • IP65 protection rating
  • With anti-rotation latch design on the operator
  • Tighten or disassemble the fixing nut by hand tools or finger freely
  • Solder Lugs
  • Single contact and double wiring holes design, capable of solid wire, strand wire and European terminal wiring
  • New partition and spring structure design, increase the wire holding force and stability
  • The contact blocks and lamp holders are distinguished by color which is clearly recognizable
  • Waterproof Silicon Sleeve: Provides IP66 protection for the contact under the mounting panel

Overview

Industrial Panel Mount Push Button Switch Maintained 2NO2NC Blue Lighted 24V LED 16mm Assembly Hole Solder Lug

Product Identification

Additional Feature:IP65, 24V Lamp
Product Type:Industrial Push Switch

Dimensions & Appearance

Mounting Style:Panel, Snap-in
Diameter:0.71 in.
Height:0.41 in.
Depth:0.87 In.
Width:0.71 in.
Length:1.28 in.
Body Color:Black

Features

Minimum Insulation Resistance:100 MOhm
Pins:6
Electrical Life:50,000 Cycles
Maximum Contact Resistance:50 mOhm
Illumination Type:LED, Blue
Dielectric Strength:1500 V
Switch Function:ON-OFF
Contact Form:2NO2NC
Actuator Length:0.19 in.
Color - Actuator/Cap:Blue with Blue LED
Voltage Rating:12 VDC, 30 VDC, 125 VAC, 250 VAC
Termination Style:Solder Lugs
Actuator Type:Round Button
,
