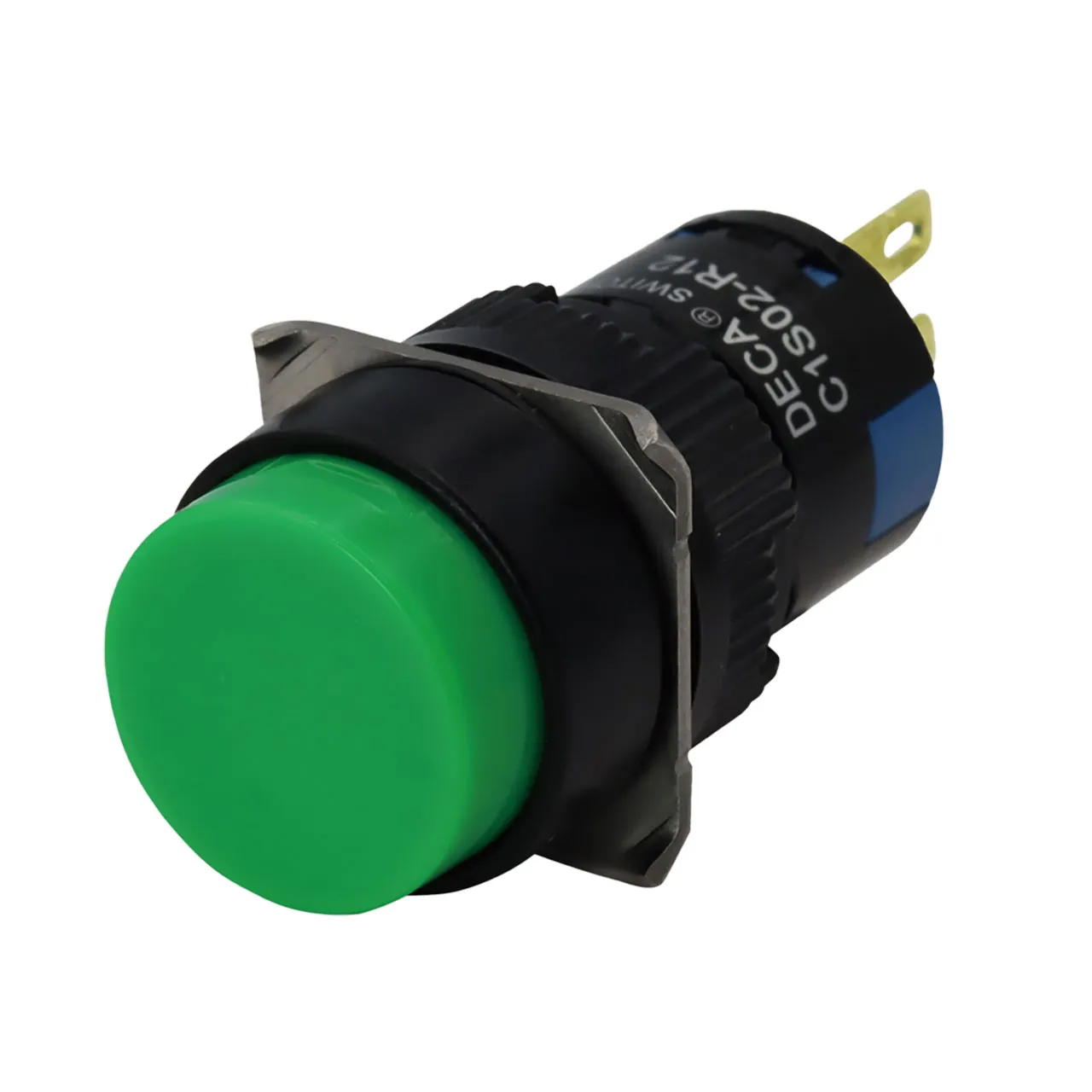

Industrial Panel Mount Push Button Switch Maintained 1NO1NC Green 16mm Assembly Hole Solder Lug

Features

    Non-Illuminated switch
  • Maintained operation
  • Solid housing design for operator and contact block to reduce installation space
  • Complete type with 16mm version
  • IP65 protection rating
  • With anti-rotation latch design on the operator
  • Tighten or disassemble the fixing nut by hand tools or finger freely
  • Solder Lugs
  • Single contact and double wiring holes design, capable of solid wire, strand wire and European terminal wiring
  • New partition and spring structure design, increase the wire holding force and stability
  • The contact blocks and lamp holders are distinguished by color which is clearly recognizable
  • Waterproof Silicon Sleeve: Provides IP66 protection for the contact under the mounting panel

Overview

Industrial Panel Mount Push Button Switch Maintained 1NO1NC Green 16mm Assembly Hole Solder Lug

Product Identification

Additional Feature:IP65
Product Type:Industrial Push Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Black
Mounting Style:Panel, Snap-in
Diameter:0.71 in.
Height:0.41 in.
Depth:0.87 In.
Width:0.71 in.
Length:1.28 in.

Features

Pins:3
Minimum Insulation Resistance:100 MOhm
Electrical Life:50,000 Cycles
Contact Form:1NO1NC
Maximum Contact Resistance:50 mOhm
Dielectric Strength:1500 V
Illumination Type:N/A
Switch Function:ON-OFF
Actuator Length:0.19 in.
Color - Actuator/Cap:Green
Voltage Rating:12 VDC, 30 VDC, 125 VAC, 250 VAC
Termination Style:Solder Lugs
Actuator Type:Round Button
,
