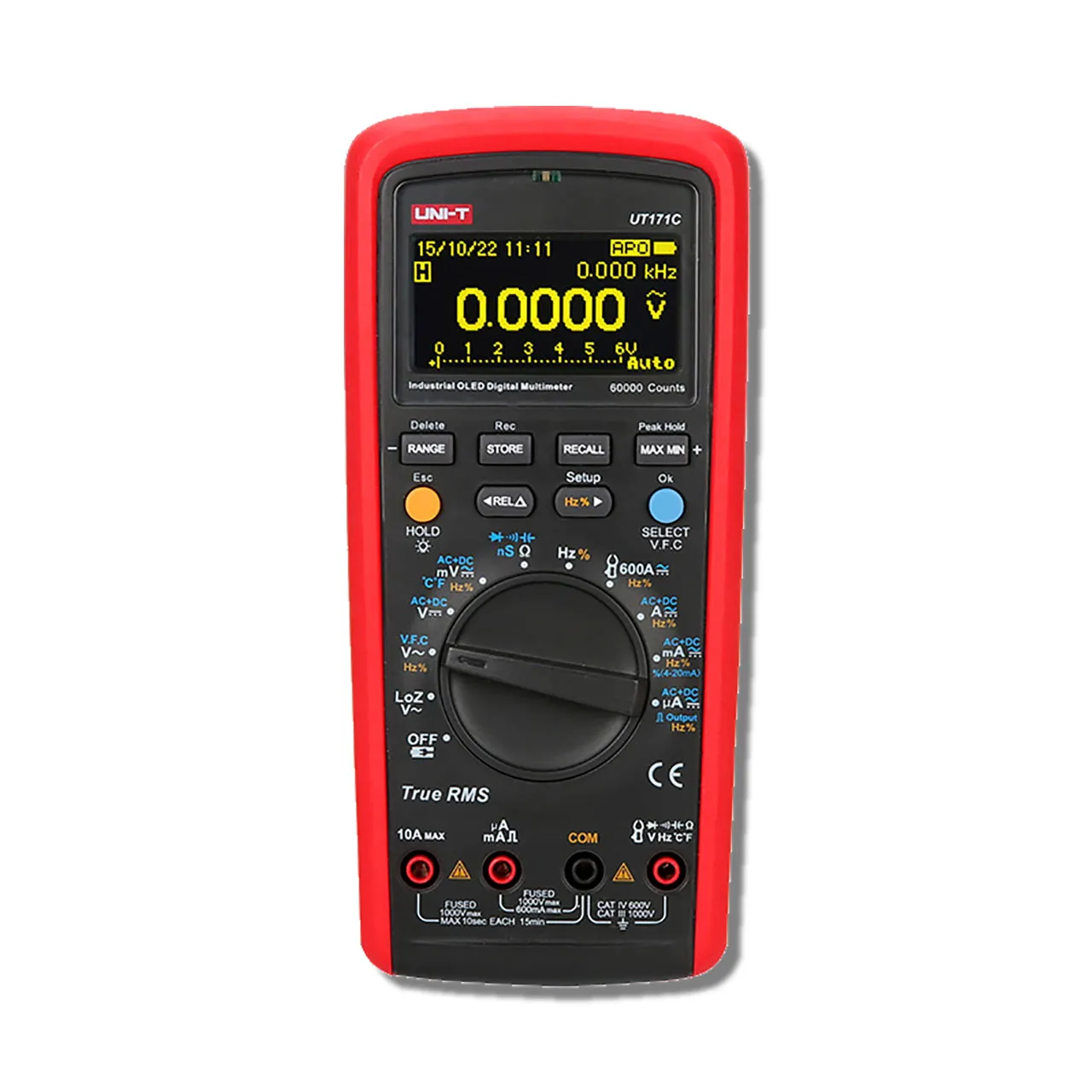

Industrial Multimeter

Features

  • True RMS, 60,000 Count, 4-20mA Loop Measurement (%), Square Wave Output, Auto/Manual Range, Temperature, 60MΩ Resistance, Capacitance, Frequency, Non-Contact Voltage Detection, LoZ, OLED display, CAT III 600V, Data Hold
  • Warranty: 1 year
  • Prop65: No
  • Reach: No

Overview

CAT III 1000V True RMS multimeter designed with rugged OLED display and built-in square wave output for troubleshooting industrial control signals.

Technical Specifications

  • Count: 60,000
  • Trms: Yes
  • Max V DC: 1000V
  • Max A DC: 10A
  • Max V AC: 1000V
  • Max A AC: 10A

Product Identification

Additional Feature:Rechargeable 7.4V Li-Ion Battery, Square Wave Output Function, OLED Display
Product Type:Industrial True RMS Digital Multimeter
Manufacturer Series:UT100

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Style:Handheld

Features

AC Current Range (A):0 to 10
Autorange:Yes
True RMS:Yes
DC Current Range (A):0 to 10
Capacitance Range:0 to 60 mF
Display Digits:4.5
Voltage Range (VDC):0 to 1000
Resistance Range (Ohms):0 to 60M
Voltage Range (VAC):0 to 1000
PC Interface:USB, Bluetooth
Measurement Temperature Range (Deg F):-40 to 1832
Display Count:60000
Measurement Temperature Range (Deg C):-40 to 1000
Frequency Range:10 Hz to 10 MHz
Function:Voltage, Current, Resistance, Capacitance, Temperature, Frequency, Continuity, Diode, NCV
,
