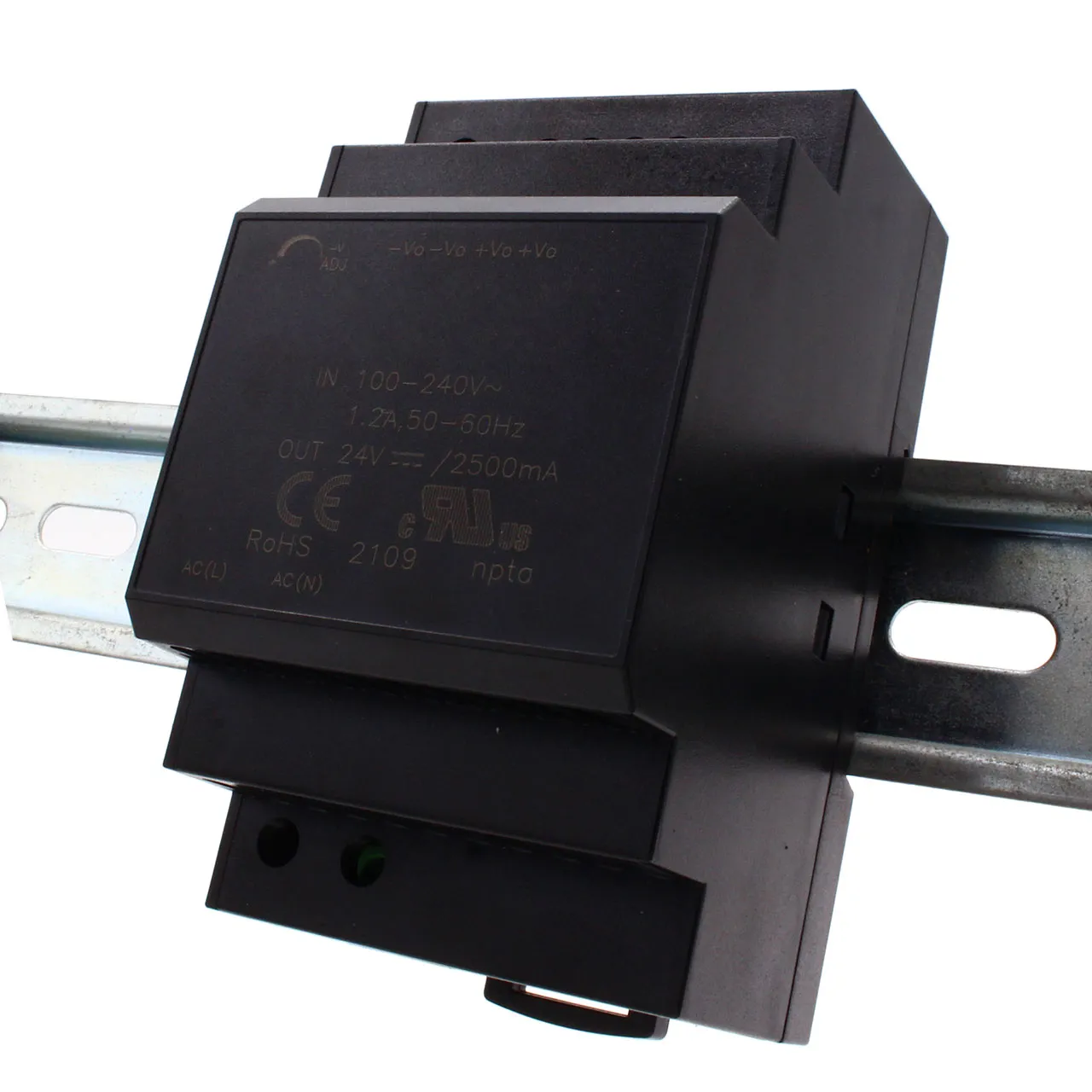

Industrial DIN Power Supply 60W Single Output

Features

  • Product Type: Cables and Accessories

Overview

Industrial DIN Power Supply 60W Single Output .

Additional Information

  • UPC: 837324004755
  • Harmonized Code: 8471800000
  • ECCN: 4A994

Product Identification

Product Type:Industrial DIN Rail Power Supply SMPS
Manufacturer Series:PW

Compliance

Agency Approvals: CE, EN, UKCA, UL

Dimensions & Appearance

Color:Black
Depth:2.28 in.
Width:2.05 in.
Height:3.54 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC, 120 VDC to 370 VDC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:2.50 A

Features

PFC Function:No
Low Power Source (LPS):No
Efficiency:85%
Power Rating:60 W
,
