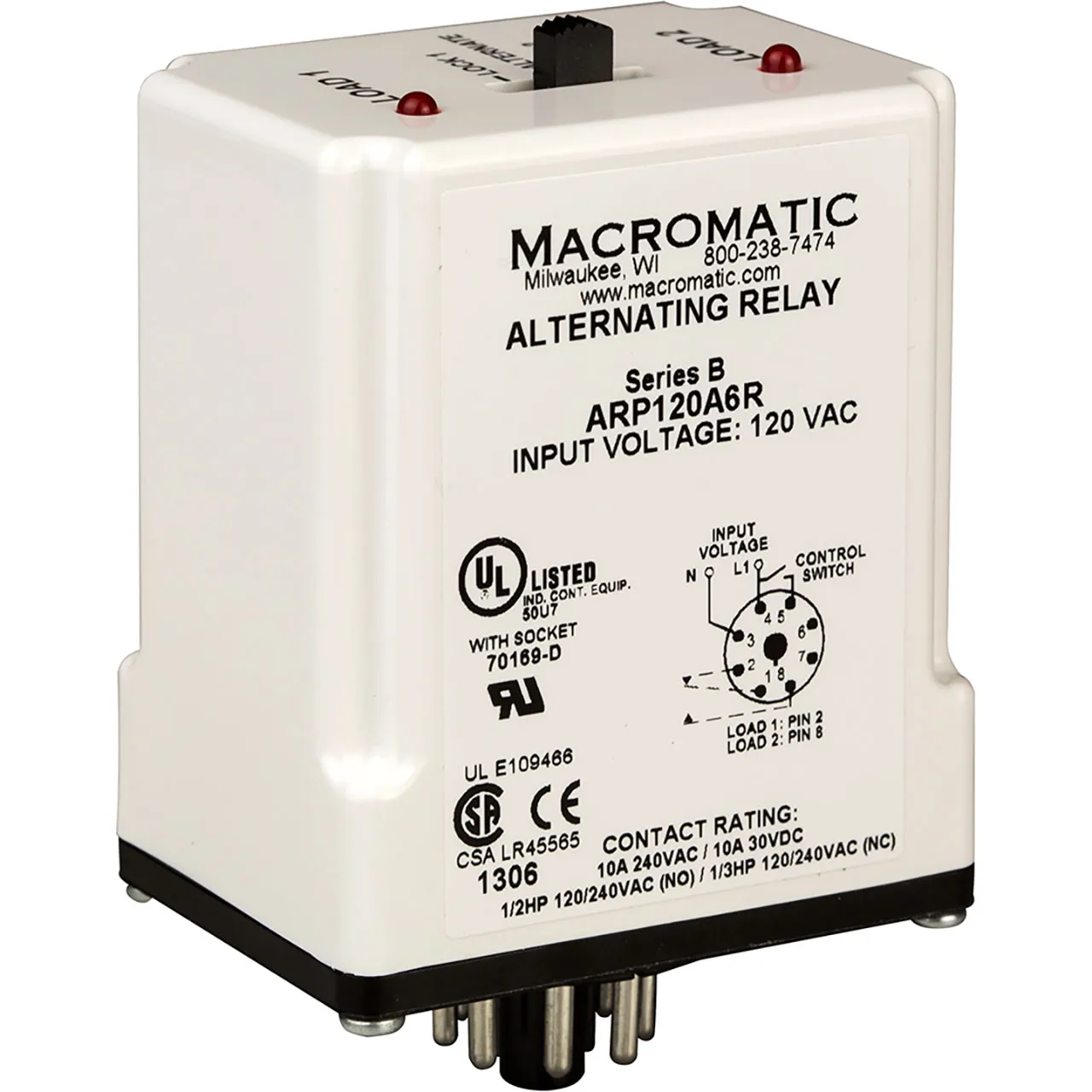

Impulse Relay SPDT (1 Form C) 120VAC Coil 10A Socketable Alternating Relay

Macromatic

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$79.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$79.950	-	-
5+	$74.950	5.00	6.25%
25+	$69.950	10.00	12.51%

Features

Family: ARP
Function: SPDT
Function Name: ARP-SPDT
Input: 120V AC
Output: 10A SPDT
Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal.
Insulation Voltage: 2,000 volts
Load Burden: Less than 3 VA
Output Contacts: 10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
Life: Mechanical: 10000000 operations; Full Load: 100000 operations
Temperature: -28° to 65°C (-18° to 149°F)
Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2
Selector Switch: ALTERNATE LOAD 1; LOAD 2

Overview

In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The red LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.
