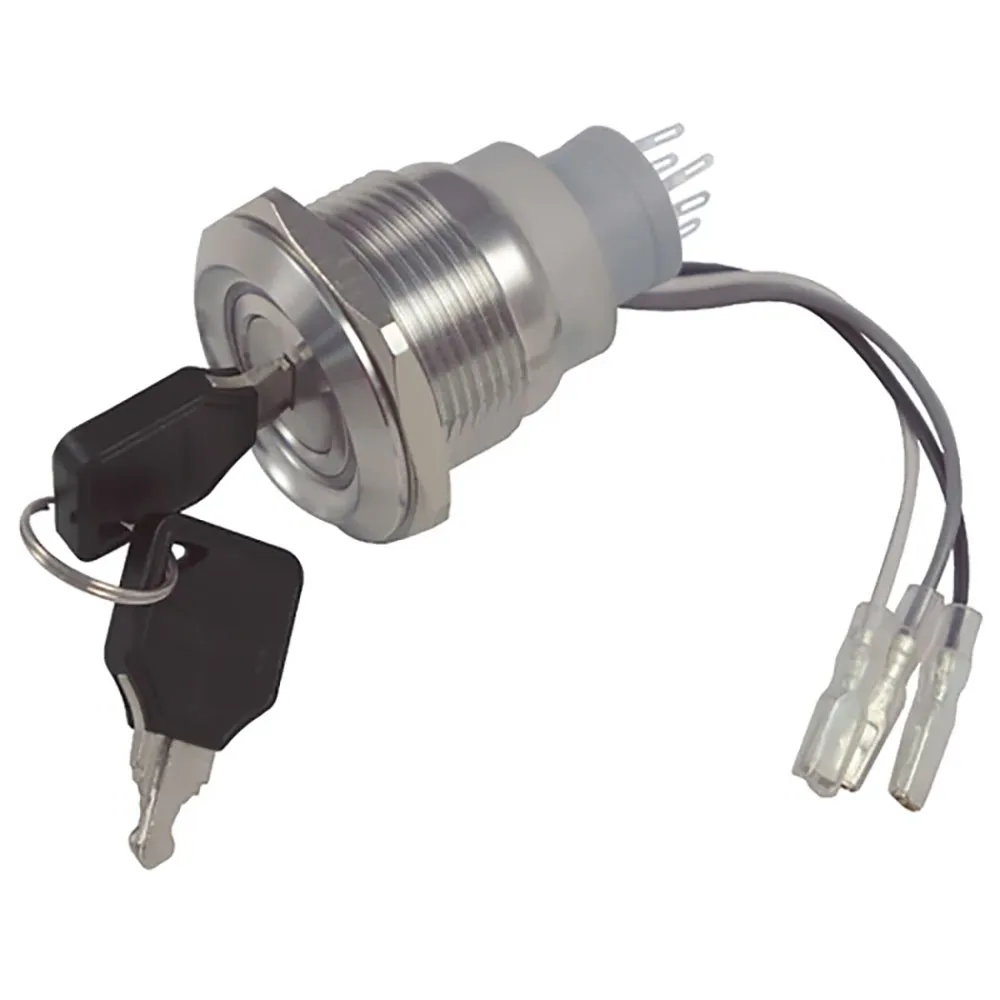

Illuminated Latching Key Switch DPDT 5A 250VAC 30VDC 3-Way

Specifications

  • Number of Positions: 3
  • Switch Operation: Latching
  • Contact Configuration: Double Pole Double Throw (DPDT)
  • Contact Current Rating: 5 A
  • IP Rating: IP40
  • Terminal Type: Solder
  • Case Material: Stainless Steel
  • Bezel Shape: Round
  • Depth Behind Panel: 37 mm
  • Key Index Angle: 90°
  • Contact Material: Silver
  • Voltage Rating DC: 30 V
  • Voltage Rating AC: 250 V
  • Standards Met: CE, cUL, UL
  • Maximum Operating Temperature: +55°C
  • Minimum Operating Temperature: -20°C
  • Mechanical Life: 50,000 Operations

Dimensions & Appearance

Diameter:1.19 in.
Depth:1.46 in.

Features

No. of Flats:2
Removal Position:1
Terminal Type:Wires
Contact Form:DPDT
Contact Rating:5A@250VAC, 30VDC
,
