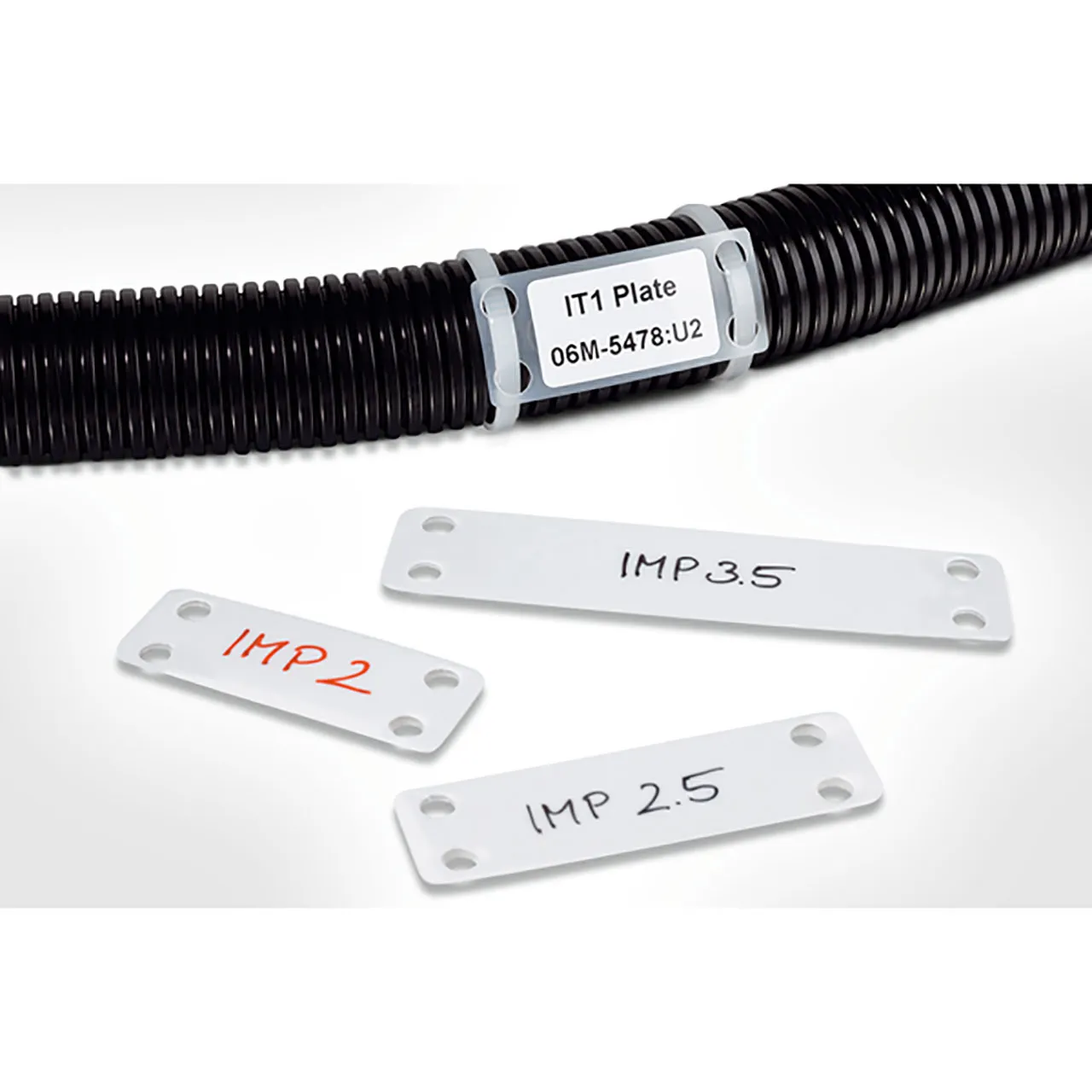

Identification Marker Plate, 2.0" x .75", Nylon, White, 100 per Package

Features

• Identification Marker Plates can be marked with a permanent pen, printed labels or hot stamped for a wide variety of labeling options. Any size bundle diameter can be marked because it is only dependent upon the length of the cable tie selected, provided the cable tie width does not exceed .29". The marker plates are stamped from nylon, making them a durable and long term method of identification. The mounting holes are positioned to allow the marker to be mounted as a flag, tag or wrapped around the cable or bundle for a wide variety of installed positions.
• Product Type: Hand Writable Labels and Tags

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Cable Tie Width Max. (Imperial): 0.18"
• Fixation Method: Others
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Shipbuilding; Defense Industry
• For Cable Ties: T18, T25, T30, T40, T50, T60
• Height H (Imperial): 0.75"
• Height H (Metric): 19.05 mm
• Length L (Imperial): 2"
• Length L (Metric): 50.8 mm
• Length L2 (Imperial): 1.5"
• Length L2 (Metric): 38.8 mm
• Print Method: manual marking
• Printable Area Width (imperial): 1.53"
• Printable Area Width (metric): 38.90 mm
• Recommended Labels: TAG15T3-822
• Thickness T (Imperial): 0.016"
• Thickness T (Metric): 0.4 mm
• Variant: Other
• Weight (Lbs) per 1 Content Unit without Packaging: 0.0010141264052
• Width W (Imperial): 2.0"
• Width W (Metric): 19.3 mm
• Width W2 (Imperial): 1.53"
• Width W2 (Metric): 38.86 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306018551

Overview

Identification Marker Plates can be mounted in any direction, either vertically or horizontally as flags, tags, or wraparound identification plates. They can be hot stamped or marked with HellermannTyton marking pens (T82-S), thermal transfer labels, or laser labels. The markers are manufactured from nylon and are white in color.
