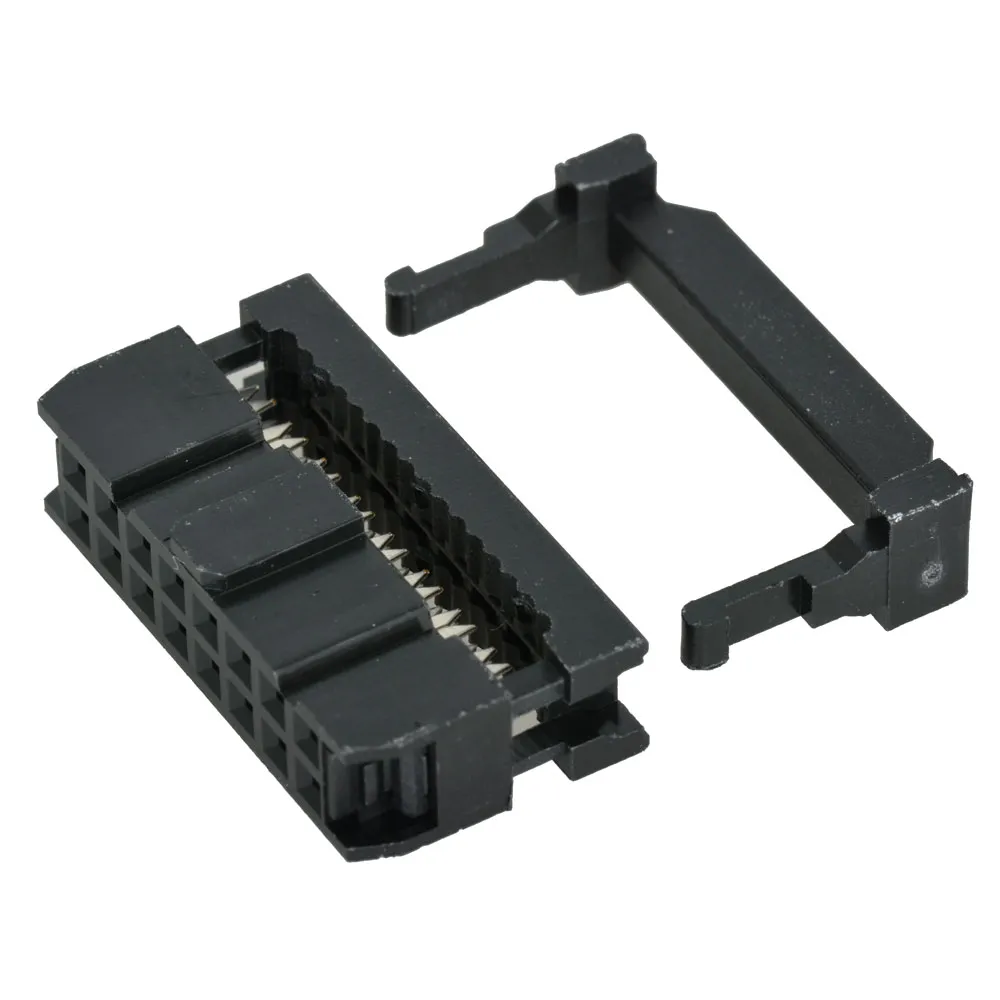

IDC Flat Ribbon Cable Connector 16 Position 1A
Specifications
- Double row
- 16 contacts
- Current rating: 1A
- Mates with 2 rows of 0.025" square/diameter posts on patterns of 0.1" centers
(straight double row or right angle double row, or shrouded box headers) - Industry standard IDC socket (plastic)
- Temp. rating: -55°C to +105°C
- Use crimper P/N 73252
- Includes strain relief
- For Ribbon Cable
Dimensions & Appearance
Width:0.3 in.
Length:24.94
Body Orientation:Right Angle
Features
Terminal Pitch:0.1 in, 2.54 mm
Number of Rows:2
Housing Color:Black
Maximum Contact Resistance:20 mOhm
Contact Plating:Gold
Contact Material:Copper Alloy
Number of Contacts:16
Housing Material:Polybutylene Terephthalate
Gender:Receptacle
Current Rating:1 A
Voltage Rating:250 VAC, 250 VDC
