Double-Balanced Mixer and Oscillator

The SA602A is a low-power VHF monolithic double-balanced mixer with input amplifier, on-board oscillator, and voltage regulator. It is intended for high-performance, low-power communication systems. The guaranteed parameters of the SA602A make this device well-suited for cellular radio applications. The mixer is a "Gilbert cell" multiplier configuration which typically provides 18 dB of gain at 45 MHz. The oscillator operates to 200 MHz. It can be configured as a crystal oscillator, a tuned tank oscillator, or a buffer for an external LO. For higher frequencies, the LO input may be externally driven. The noise figure at 45 MHz is typically less than 5 dB. The gain, intercept performance, low-power and noise characteristics make the SA602A a superior choice for high-performance battery operated equipment.

Features

• Low current consumption: 2.4 mA typical
• Excellent noise figure: <4.7 dB typical at 45 MHz
• High operating frequency
• Excellent gain, intercept and sensitivity
• Low external parts count; suitable for crystal/ceramic filters
• Meets cellular radio specifications

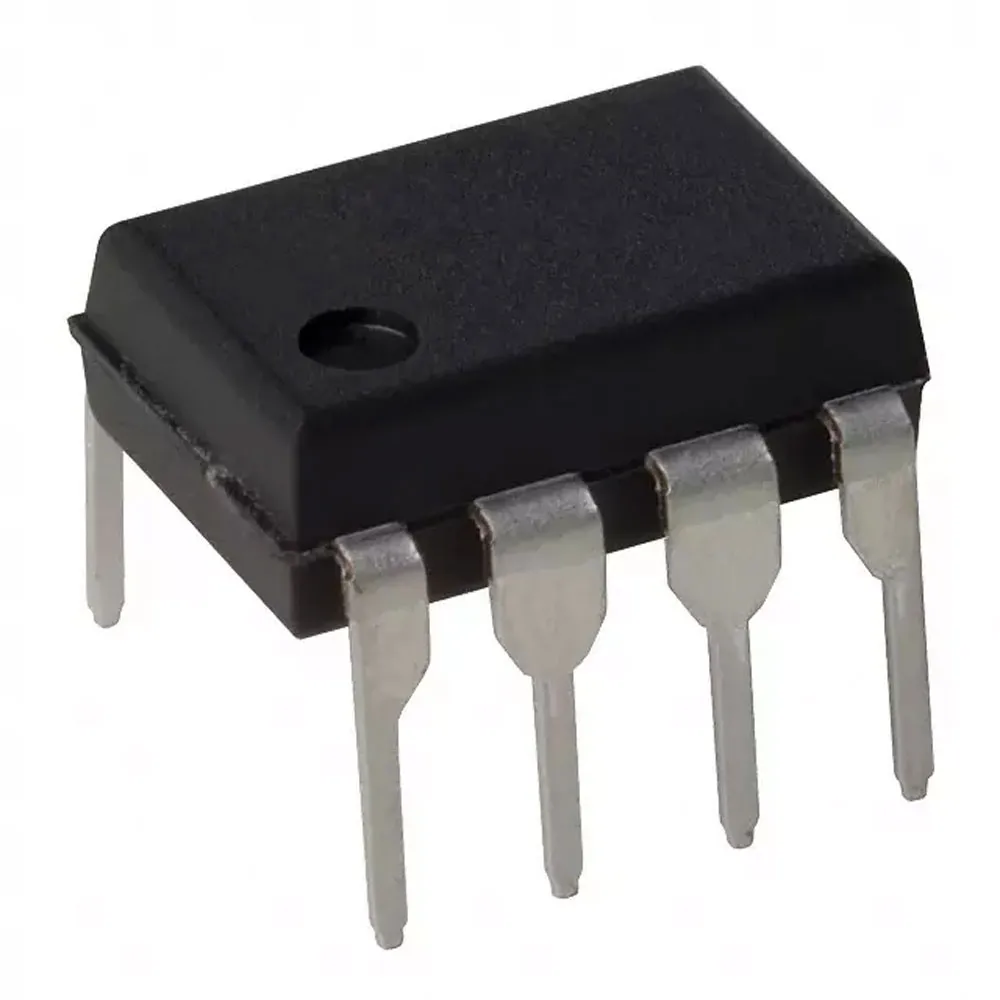

• Package: DIP-8
• Manufacturer Note: Signetics and Philips are owned by NXP Semiconductor

Applications:

• Cellular radio mixer/oscillator
• Portable radio
• VHF transceivers
• RF data links
• HF/VHF frequency conversion
• Instrumentation frequency conversion
• Broadband LANs
