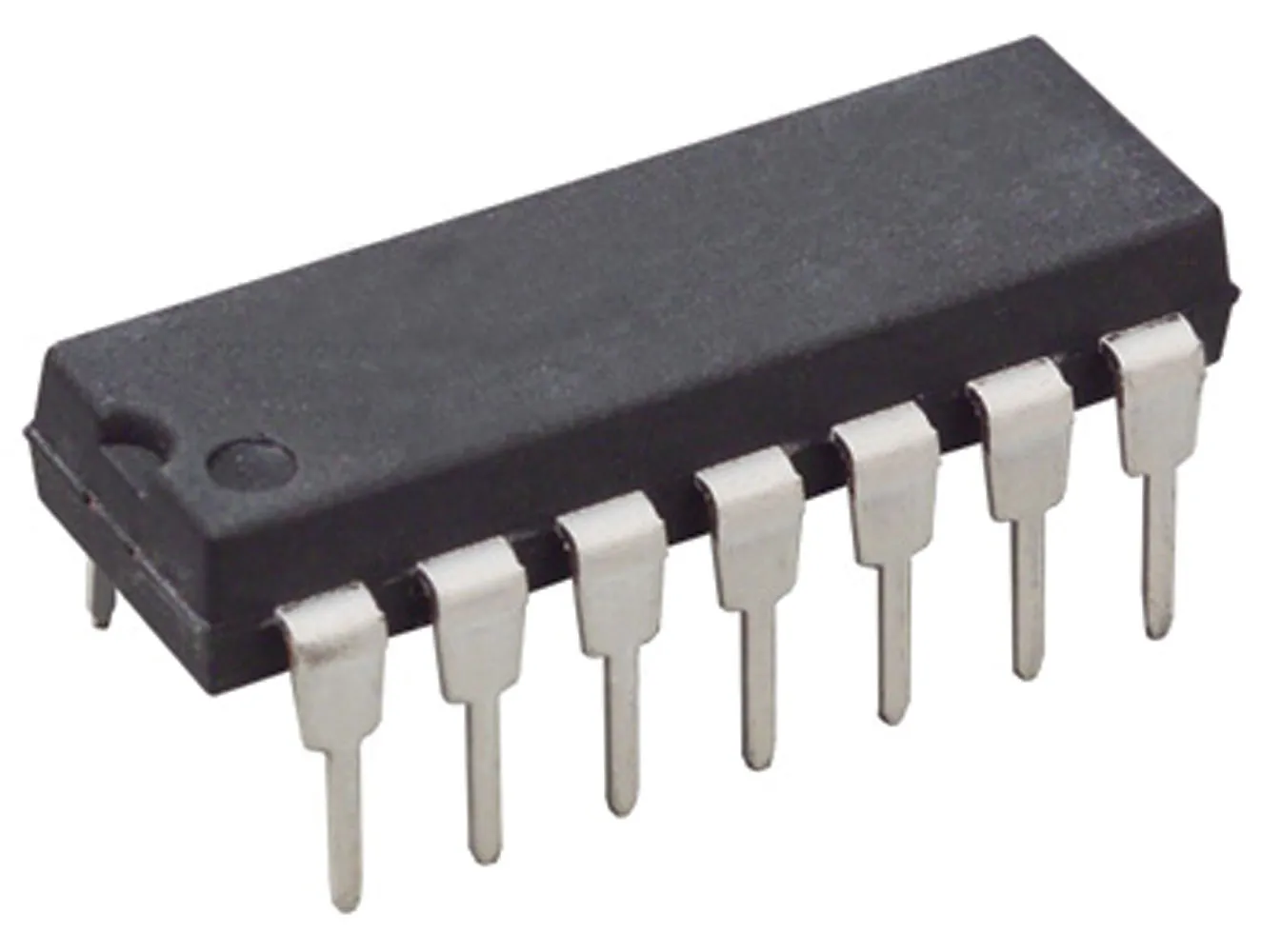

Balanced Modulator and Demodulator 14-Pin

Specifications

The LM1596/LM1496 are doubled balanced modulator-demodulators which produce an output voltage proportional to the product of an input (signal) voltage and a switching (carrier) signal. Typical applications include suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection, broadband frequency doubling and chopping.The LM1496 is specified for operation over the 0°C to a70°C temperature range.

Features

  • Excellent carrier suppression
  • 65 dB typical at 0.5 MHz
  • 50 dB typical at 10 MHz
  • Adjustable gain and signal handling
  • Fully balanced inputs and outputs
  • Low offset and drift
  • Wide frequency response up to 100 MHz

    • Product Identification

    Product Type:Mod and Demod
    Family:LM1496

    Dimensions & Appearance

    Height:3.3mm
    Width:6.35mm
    Product Length:19.05mm
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:70°C

    Packaging

    Package:MDIP

    Features

    Modulation Type:Balanced
    Maximum Supply Current:4A
    Device Type:Modulator/Demodulator
    Pins:14
    Power Dissipation:500mW
    ,
