Line Transmitter/Receiver 2TR 2 Transceiver 2 Receiver 16-Pin

Specifications

  • Meets or Exceeds TIA/EIA-232-F and ITU
  • Recommendation V.28
  • Operates From a Single 5-V Power Supply
  • With 1.0-µF Charge-Pump Capacitors
  • Operates Up To 120 kbit/s
  • Two Drivers and Two Receivers
  • ±30-V Input Levels
  • Low Supply Current . . . 8 mA Typical
  • ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • Upgrade With Improved ESD (15-kV HBM) and 0.1-_F Charge-Pump Capacitors is

    Applications

  • TIA/EIA-232-F, Battery-Powered Systems, Terminals, Modems, and Computers

    • Packaging

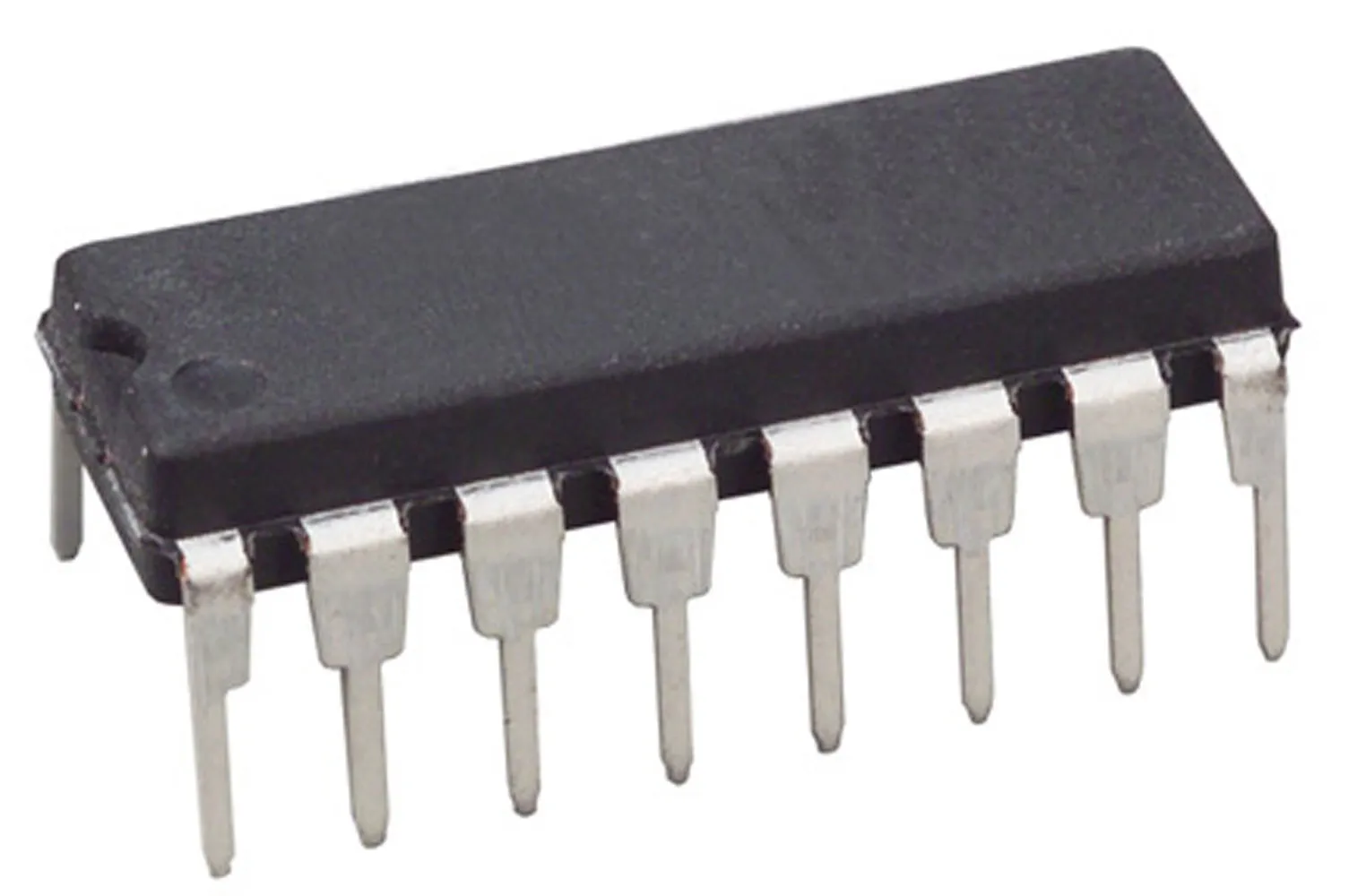

    Package:PDIP-16
    ,
