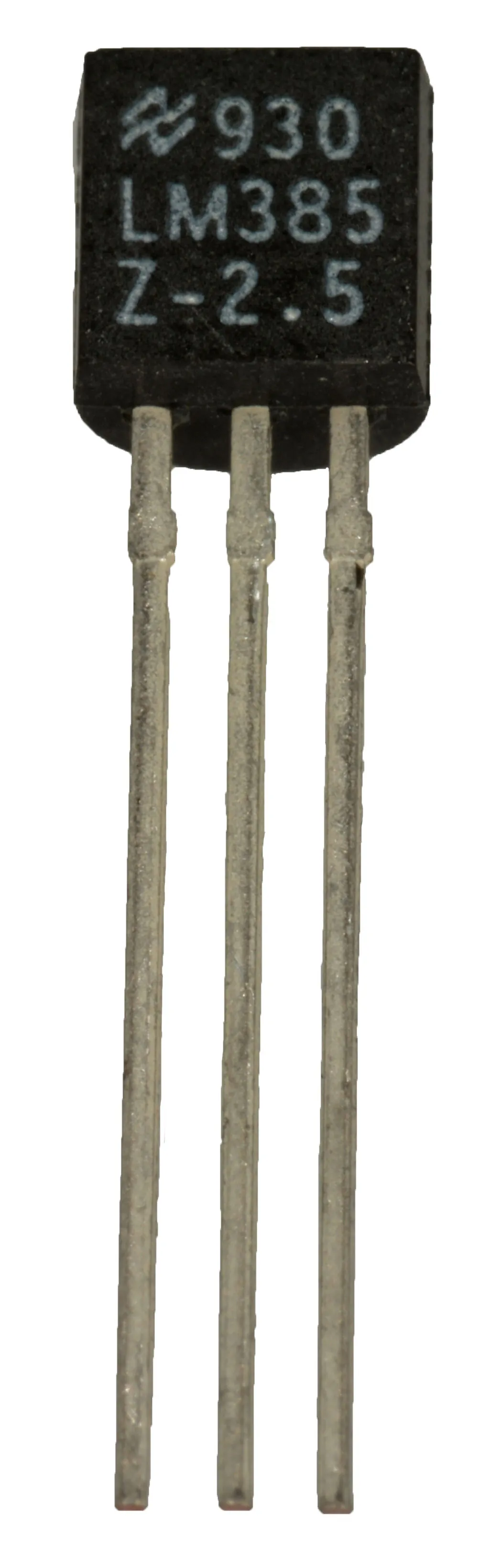

LM385 Micropower Voltage Reference Diode 2.5V

The LM385 is a micropower 2-terminal adjustable band-gap voltage regulator diode. Operating over a 20µA to 20mA current range, it features exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance.

Features

• ±20 mV (±0.8%) max. initial tolerance (A grade)
• Operating current of 20µA to 20mA
• 0.6Ω dynamic impedance (A grade)
• Low temperature coefficient
• Low voltage reference - 2.5V
• TO-92 package
• Operating temperature range: 0°C to +70°C
