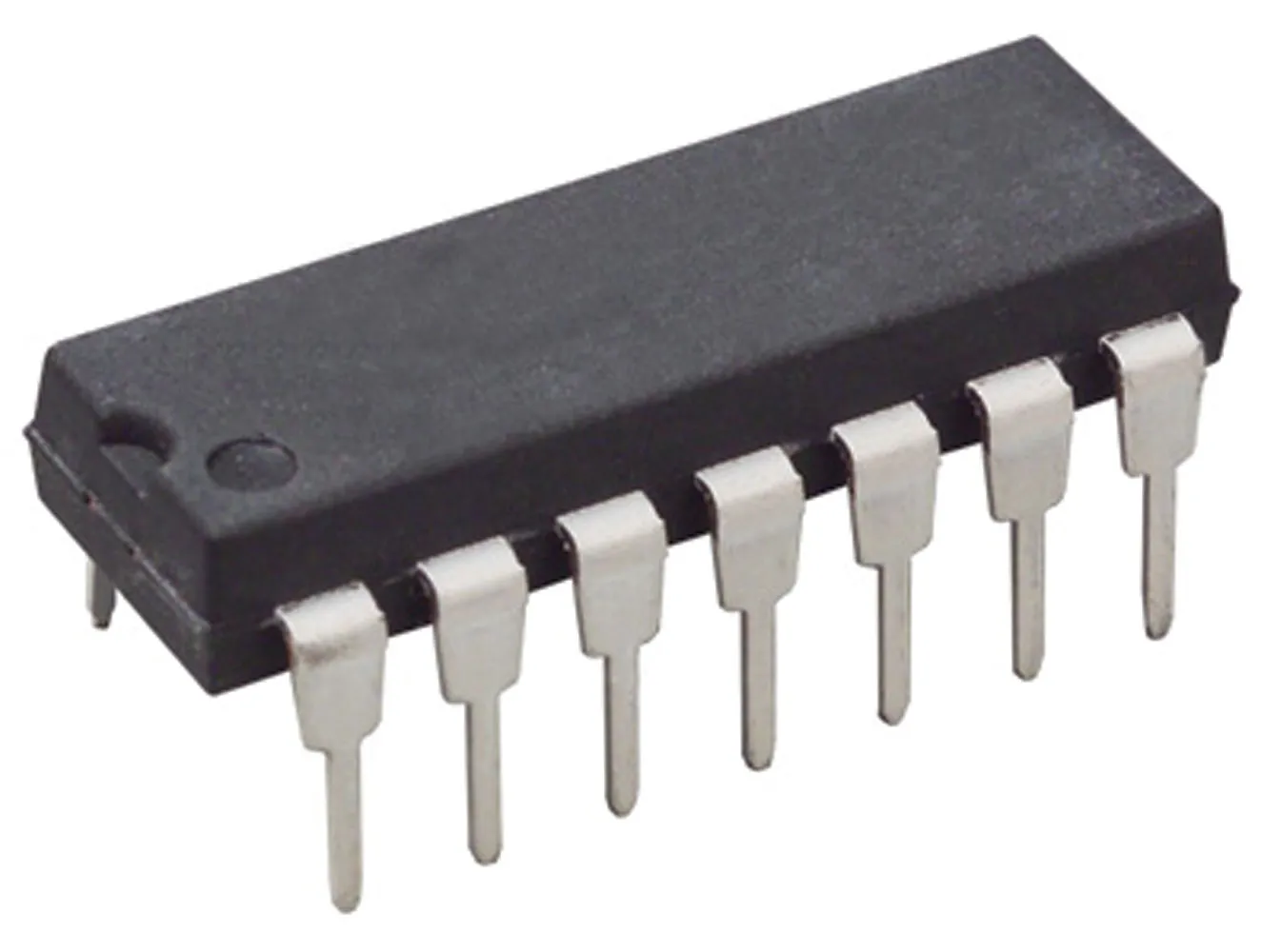

LM339N Single Supply Quad Comparator

These comparators are designed for use in level detection, low-level sensing and memory applications in consumer, automotive, and industrial electronic applications.

Features

• Low input bias current: 25 nA
• Low input offset current: ±5.0 nA
• Low input offset voltage
• Input common mode voltage range to GND
• Low output saturation voltage: 130 mV (typ.) @ 4.0 mA
• TTL and CMOS compatible
• ESD clamps on the inputs increase reliability without affecting device operation
• NCV prefix for automotive and other applications requiring site and control changes

Specifications

• Quad comparator
• Dual In-line Package
• 14-pins
