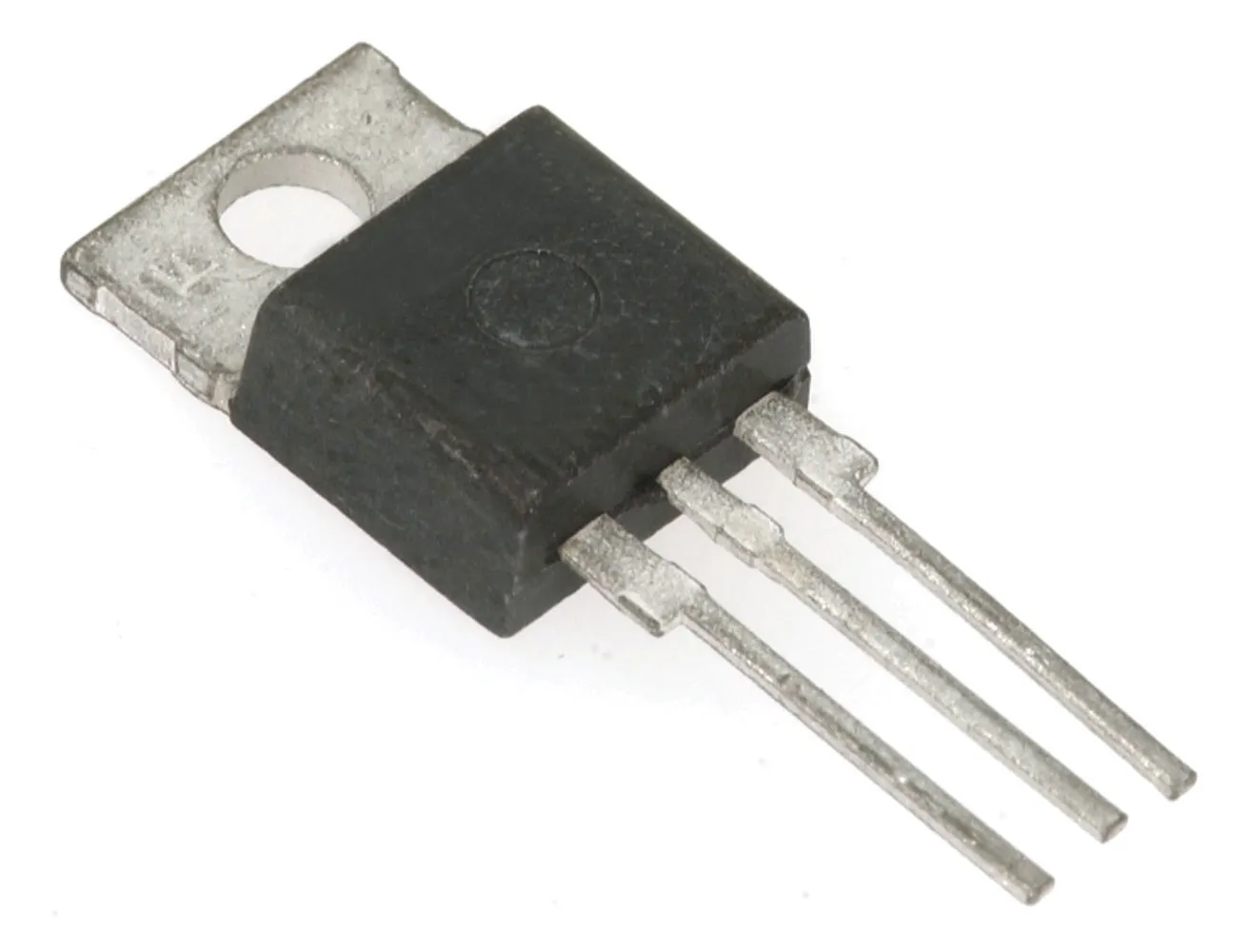

Standard Regulator -1.2 Volt to -37 Volt 1.5 Amp 3 Pin 3+Tab TO-220 Rail

Specifications

The LM137/LM337 are adjustable 3-terminal negative voltage regulators capable of supplying in excess of -1.5A over an output voltage range of -1.2V to -37V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads. The LM137/LM337 serve a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137/LM337 are ideal complements to the LM117/LM317 adjustable positive regulators.

Features

Input Voltage Max (Vi - Vo): -40 VDC

Output voltage adjustable from -1.2V to -37V

1.5A output current guaranteed, -55°C to +150°C

Line regulation typically 0.01%/V

Load regulation typically 0.3%

Excellent thermal regulation, 0.002%/W

77 dB ripple rejection

Excellent rejection of thermal transients

50 ppm/°C temperature coefficient

Temperature-independent current limit

Internal thermal overload protection

P+ Product Enhancement tested

Standard 3-lead transistor package

Output is short circuit protected
