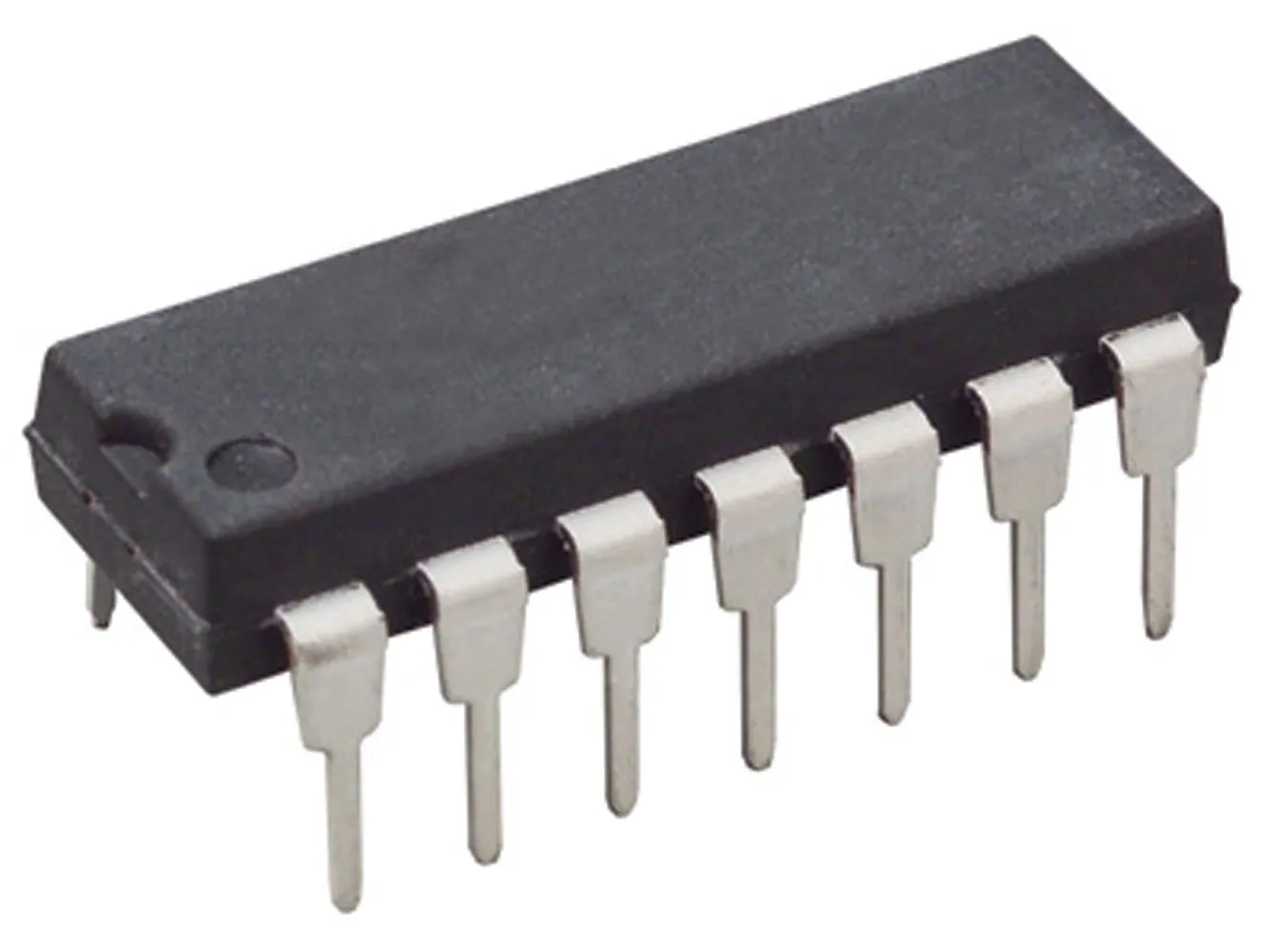

Amplifier IC General Purpose 4 Circuit DIP-14

Specifications

• Number of Circuits: 4
• Output Type: n/a
• Slew Rate: 0.5 V/µs
• Gain Bandwidth Product: 1.2 MHz
• Current - Input Bias: 20 nA
• Voltage - Input Offset: 3 mV
• Current - Supply: 1.4 mA
• Current - Output / Channel: 40 mA
• Voltage - Supply, Single/Dual (±): 3 V to 32 V, ±1.5 V to 16 V
• Operating Temperature: 0°C to 70°C
• Mounting Type: Through Hole
• Package: 14-DIP (0.300", 7.62 mm)
• Base Number: LM324
