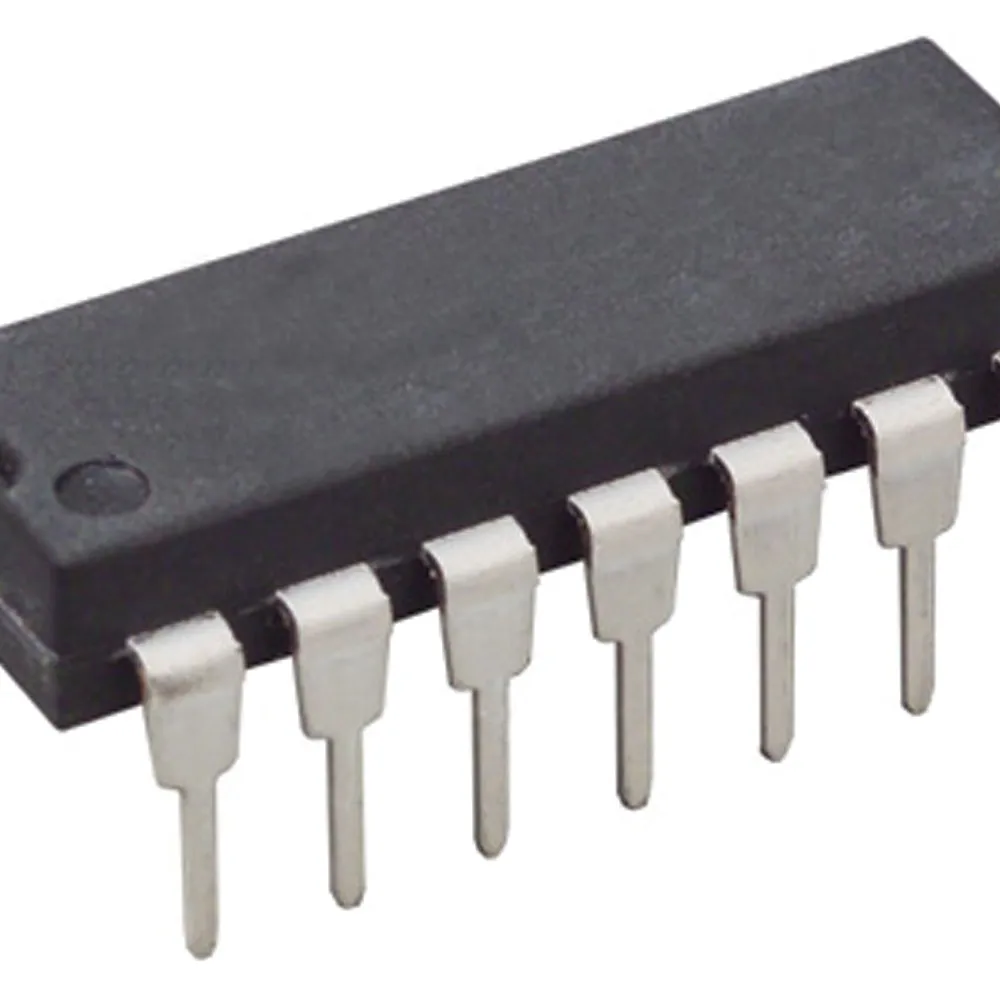

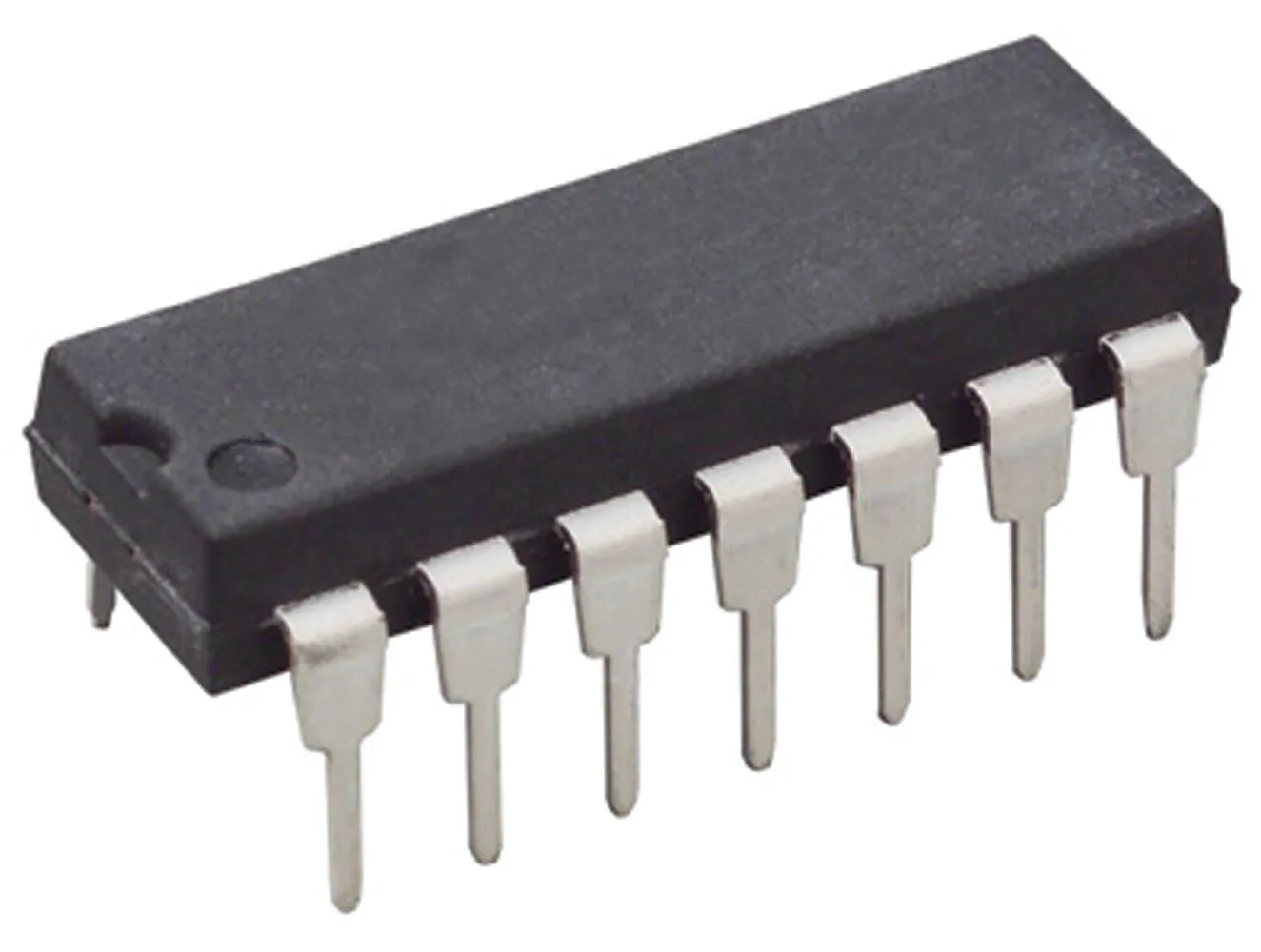

14-Pin MDIP Dual Audio Power Amplifier

Features:

  • 2W/channel
  • -65 dB ripple rejection, output referred
  • -65 dB channel separation, output referred
  • Wide supply range, 6V-24V
  • Very low cross-over distortion
  • Low audio band noise
  • AC short circuit protected
  • Internal thermal shutdown

    Specifications:

  • Minimum single supply voltage: 6V
  • Typical single supply voltage: 9V/12V/15V/18V
  • Maximum single supply voltage: 24V
  • Operating temperature: 0°C to 70°C
  • Maximum load resistance: 8Ω
  • Output type: 2-channel stereo
  • Maximum supply current: 50mA @ 20V
  • Typical supply current: 25mA @ 20V
  • Typical voltage gain: 70dB
  • Mounting: through hole
  • Input/Output signal type: single

    • Packaging

    Package:MDIP-14
    ,
