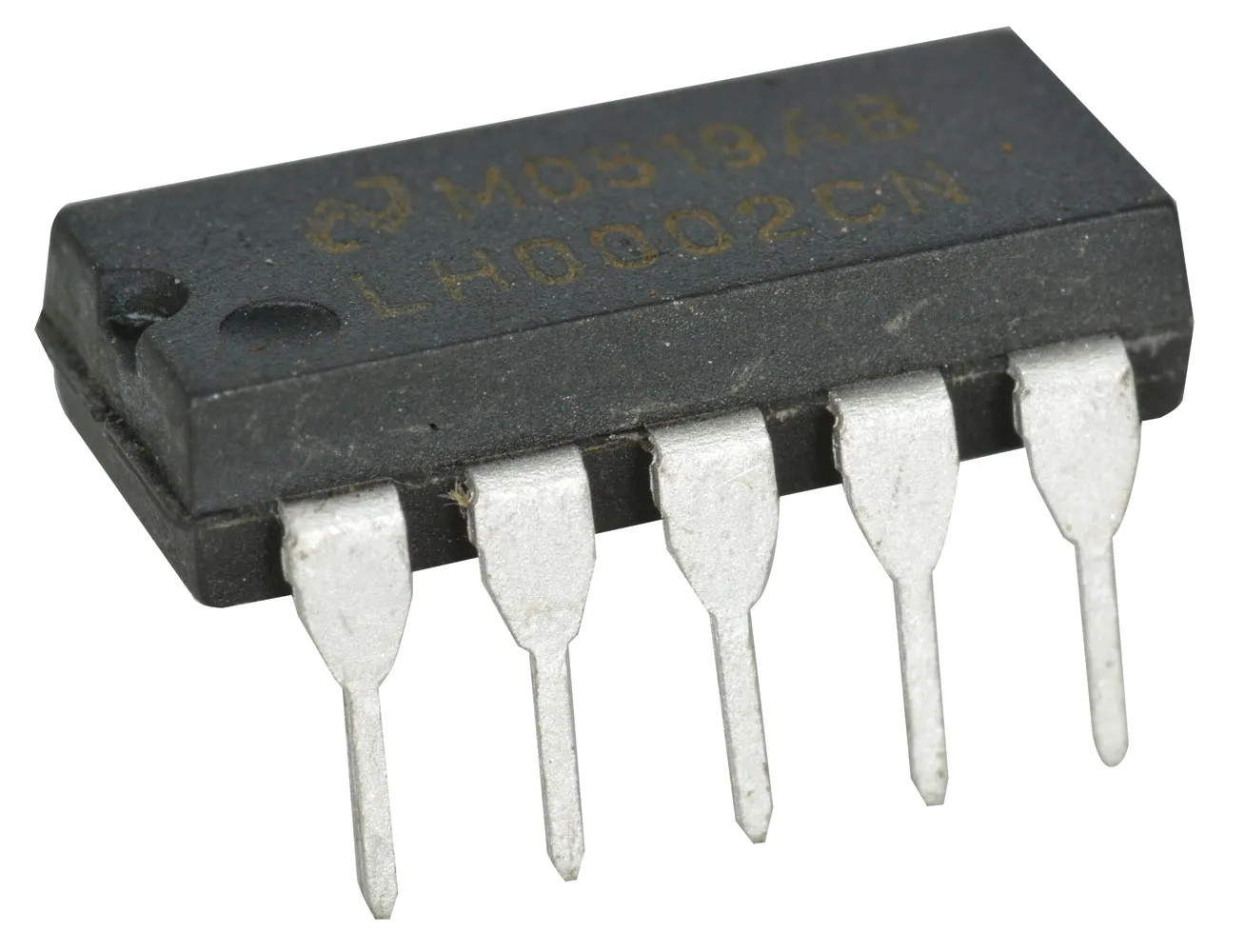

General Purpose Buffer 30 MHz DIP-10

The LH0002 is a general purpose buffer. Its features make it ideal to integrate with operational amplifiers inside a closed loop configuration to increase current output. The symmetrical output portion of the circuit also provides a low output impedance for both the positive and negative slopes of output pulses.

The LH0002 is specified for operation over the -55°C to +125°C military temperature range.

Features

• High input impedance 400 kΩ
• Low output impedance 6 Ω
• High power efficiency
• Low harmonic distortion
• DC to 30 MHz bandwidth
• Output voltage swing that approaches supply voltage
• 400 mA pulsed output current
• Slew rate is typically 200 V/µs
• Operation from ±5V to ±20V

Applications

• Line driver
• 30 MHz buffer
• High speed D/A conversion
