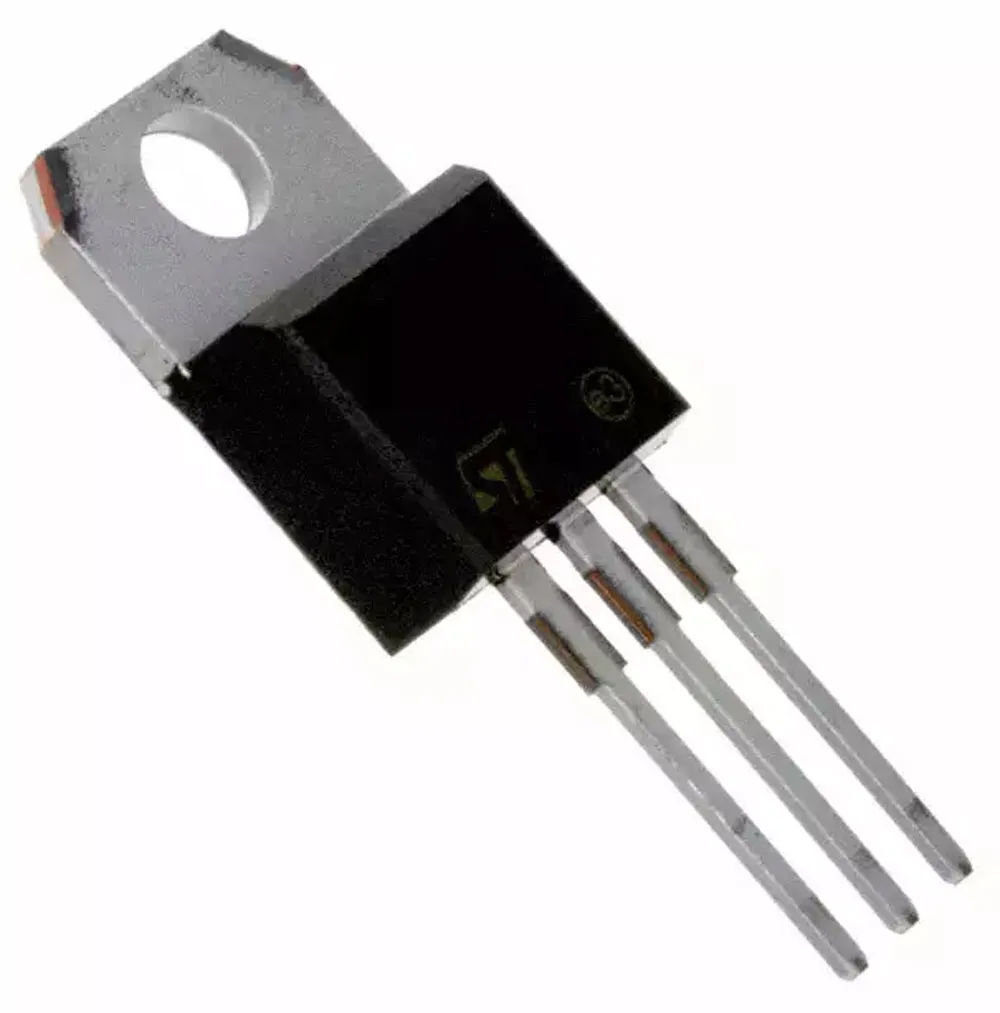

Standard Regulator 12 Volt 1 Amp 3 Pin 3+Tab

Specifications

The L7800 series of three-terminal positive regulators is useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features

• Output current to 1A
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection
