QUADRUPLE HALF-H DRIVER

The L293D is a quadruple high-current half-H driver. The L293D is designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V. This device is designed to drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

All inputs are TTL compatible. Each output is a complete totem-pole drive circuit, with a Darlington transistor sink and a pseudo-Darlington source. Drivers are enabled in pairs, with drivers 1 and 2 enabled by 1,2EN and drivers 3 and 4 enabled by 3,4EN. When an enable input is high, the associated drivers are enabled, and their outputs are active and in phase with their inputs. When the enable input is low, those drivers are disabled, and their outputs are off and in the high-impedance state. With the proper data inputs, each pair of drivers forms a full-H (or bridge) reversible drive suitable for solenoid or motor applications.

Features:

Wide Supply-Voltage Range: 4.5V to 36V

Separate Input-Logic Supply

Internal ESD Protection

Thermal Shutdown

High-Noise-Immunity Inputs

Output Current 600mA Per Channel

Peak Output Current 1.2 A Per Channel

Output Clamp Diodes for Inductive Transient Suppression

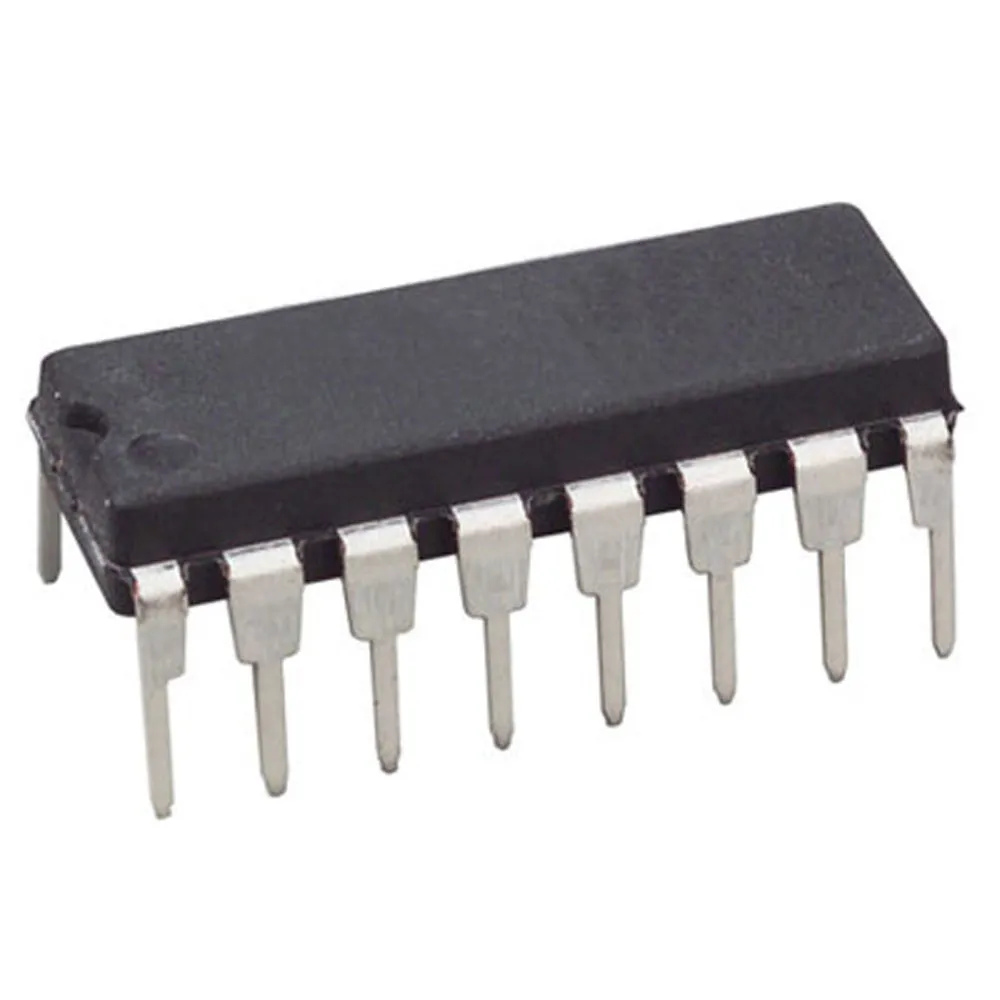

16-pin DIP package
